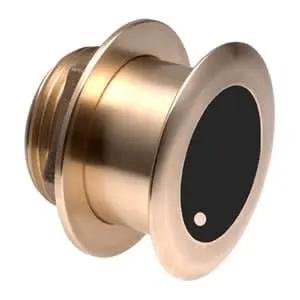

Garmin AIRMAR B175H 12° Tilt Transducer: 1 kW High CHIRP Sonar with Integrated Tilt Element

Introduction

The Garmin AIRMAR B175H 12° Tilt Transducer delivers 1 kW of high CHIRP sonar power in a flush-mounted bronze housing that extends less than 1/4 inch beyond your hull. Unlike standard transducers that require a separate fairing block to compensate for hull deadrise, the B175H features an integrated 12° tilted ceramic element that eliminates this extra step while maintaining precise sonar accuracy. This combination of power, integration, and low-profile installation makes it purpose-built for anglers and boat owners who want cleaner installation, reduced hydrodynamic drag, and exceptional underwater detail in a single thru-hull unit designed for fiberglass and wooden hulls.

Key Features

• 1 kW of sonar power for long-range target detection and deep penetration
• Operating frequency range of 130–210 kHz for exceptional target separation and crisp sonar imagery
• Accurate depth readings up to 1,000 feet in open and deep water conditions
• Integrated 12° tilted ceramic element that automatically compensates for hull deadrise without external fairing blocks
• Flush-mounted bronze housing that extends less than 1/4 inch outside the hull to reduce drag and remain safe for trailer rollers and bunks
• 8-pin connector with compatibility for supported Garmin chartplotters and fishfinders
• Rugged heavy-duty bronze construction engineered for long-term performance in demanding marine environments

Data Insights

The B175H's high CHIRP frequency band of 130–210 kHz operates at a significantly higher bandwidth than traditional fixed-frequency transducers, producing superior target separation and distinguishing fish from bottom structure with exceptional clarity. The 1 kW power output enables reliable sonar performance across a wide range of water depths, from shallow coastal zones to offshore environments exceeding 1,000 feet. The integrated 12° tilt element addresses a critical challenge in transducer installation: eliminating the performance compromise that occurs when a non-tilted element is mounted on a hull with deadrise. By building the 12° tilt into the ceramic element itself, sonar beams project perpendicular to the hull surface rather than at an angle, maintaining beam pattern integrity and reducing installation complexity.

Usage Instructions

Follow the supplied installation instructions to position the B175H securely in a watertight thru-hull mount on your fiberglass or wooden hull. The integrated 12° tilted element is engineered to work with compatible hull angles without requiring an external fairing block—simply install according to the provided guidance. Connect the 8-pin transducer connector to a compatible Garmin chartplotter or fishfinder, configure sonar settings to match your fishing conditions and water depth, and verify proper operation before heading out. Inspect and clean the transducer periodically to maintain optimal sonar performance, especially after exposure to saltwater or debris.

Design & Material

The B175H is built around a premium bronze thru-hull housing that resists corrosion in saltwater and freshwater environments while providing a flush-mounted profile that minimizes hydrodynamic drag. Its streamlined design keeps the transducer flush with the hull—extending less than 1/4 inch—which protects it during trailer launching, retrieval, and storage while avoiding damage from roller contact. The integrated 12° tilted ceramic element sits within the housing, directing sonar beams at the correct angle relative to the hull surface for maximum accuracy without adding external components.

• Heavy-duty bronze housing with corrosion resistance for extended marine service life
• Integrated 12° tilted ceramic element for automatic hull deadrise compensation
• Flush-mounted design extending less than 1/4 inch beyond the hull exterior
• Low-profile thru-hull installation compatible with fiberglass and wooden hull construction
• Trailer-safe profile that remains secure during launching and retrieval without interference from rollers or bunks
• 8-pin connector standard for integration with Garmin sonar systems

Final Verdict

The Garmin AIRMAR B175H 12° Tilt Transducer is essential for boat owners who demand high-performance sonar without installation complexity. Its 1 kW power, 130–210 kHz high CHIRP frequency, and integrated 12° tilt element deliver the underwater detail and depth accuracy needed for serious fishing, while the flush-mounted bronze housing eliminates the need for a fairing block and reduces drag. Whether you're upgrading an existing Garmin system, installing sonar on a new boat, or looking for a trailer-friendly transducer that performs in coastal and offshore waters, the B175H combines professional-grade sonar capability with simplified, streamlined installation. Choose this transducer to gain a measurable advantage in target detection, structural definition, and operational efficiency on the water.
