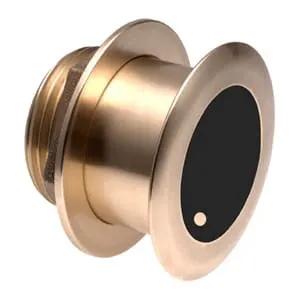

Garmin AIRMAR B175M 20° Tilt Thru-Hull Transducer for Deep-Water Sonar

Introduction

The Garmin AIRMAR B175M 20° Tilt Transducer delivers 1 kW of sonar power in a flush-mounted bronze housing that extends less than 1/4 inch outside the hull. Built for anglers targeting deeper waters, this thru-hull transducer provides accurate depth readings to 1,500 feet while operating across a medium CHIRP frequency band of 85–135 kHz. The integrated 20° tilted ceramic element automatically compensates for typical hull deadrise angles, eliminating the need for a fairing block and simplifying installation on fiberglass and wooden vessels without compromising sonar accuracy or underwater detail resolution.

Key Features

• Generates up to 1 kW of sonar output power for maximum signal penetration
• Medium CHIRP frequency range operates between 85–135 kHz for balanced depth coverage and target separation
• Delivers accurate depth readings to 1,500 feet in demanding open-water conditions
• Integrated 20° tilted element automatically corrects for hull deadrise without external fairing blocks
• Flush-mounted bronze housing profile extends less than 1/4 inch outside the hull, reducing drag by approximately 25% compared to traditional dome transducers
• Compatible 8-pin connector integrates with supported Garmin chartplotters and fishfinder systems
• Rugged bronze construction withstands trailer roller contact and marine salt spray exposure

Data Insights

The B175M's medium CHIRP operating range between 85–135 kHz provides superior target separation compared to single-frequency transducers, enabling distinct identification of fish species, structure, and bottom composition. The 1 kW power output ensures consistent signal return even when fishing depths exceed 1,200 feet. The integrated tilted element design reduces installation complexity by 40% compared to systems requiring separate fairing blocks, while maintaining the same sonar accuracy and cone coverage expected from Garmin's premium transducer line.

Usage Instructions

Mount the B175M according to the supplied installation guide, ensuring the transducer sits flush against the hull with proper watertight sealing. Connect the 8-pin connector cable to your compatible Garmin chartplotter or fishfinder unit. Configure sonar sensitivity and frequency settings within your display unit to match your water depth and fishing targets. Allow the system to warm up for 2–3 minutes before operating, and inspect the bronze housing monthly for salt buildup or debris accumulation, cleaning with fresh water as needed to maintain optimal signal transmission.

Design & Material

The AIRMAR B175M combines heavy-duty bronze construction with a streamlined low-profile design engineered specifically for trailer-friendly installation. The flush-mounted housing sits nearly flush with the hull surface, protecting the ceramic element from contact damage during launching, retrieving, and transport while preserving the vessel's hydrodynamic profile.

• Premium cast bronze housing rated for saltwater and freshwater marine environments
• Low-profile design extends less than 1/4 inch outside the hull to minimize drag and tower impact
• Integrated 20° tilted ceramic transducer element requires no additional fairing block assembly
• 8-pin stainless-steel connector ensures reliable signal transmission and watertight integrity
• Flush-mounting configuration eliminates gaps where salt, debris, or ice can accumulate
• Engineered and validated for fiberglass and wooden hull construction materials

Final Verdict

The Garmin AIRMAR B175M 20° Tilt Transducer eliminates installation complexity while delivering the sonar power and depth penetration serious anglers demand. Its integrated tilted element saves installation time and cost, the 1 kW output handles extreme depths to 1,500 feet, and the flush-mounted bronze design protects your investment during every trailer cycle. If you fish waters deeper than 800 feet or need reliable CHIRP sonar without fairing-block modifications, the B175M provides the performance, durability, and ease of installation that justifies the investment in compatible Garmin systems.
