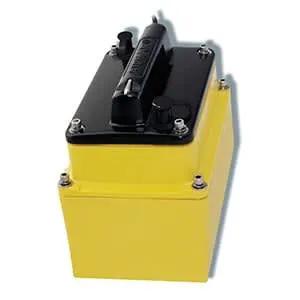

Garmin AIRMAR M265LH In-Hull CHIRP Transducer (010-12380-20)

Introduction

The Garmin AIRMAR M265LH In-Hull CHIRP Transducer is engineered for serious anglers seeking powerful sonar performance while preserving the integrity of their boat's hull. Designed as Garmin's best-performing 1 kW in-hull transducer, it delivers outstanding image clarity, precise target separation, and dependable bottom tracking without requiring an external thru-hull fitting.

Operating across both low CHIRP (42–65 kHz) and high CHIRP (130–210 kHz) frequency ranges, the M265LH provides excellent deep-water penetration alongside highly detailed shallow-water imaging. Its narrow beam design enhances fish detection and structure identification, making it ideal for offshore fishing, coastal cruising, and recreational boating.

Compatible with hull deadrise angles from 0° to 30°, the M265LH offers a clean installation while delivering professional-grade sonar performance for fiberglass hulls. (Not recommended for cored-hull vessels.)

Key Features

High-Power 1 kW CHIRP Sonar

• Premium 1 kW in-hull CHIRP transducer.
• Outstanding fish-finding performance.
• Excellent target separation.
• Crisp underwater image detail.

Dual CHIRP Frequency Performance

• Low-frequency range: 42–65 kHz.
• High-frequency range: 130–210 kHz.
• Delivers excellent deep-water penetration.
• Provides highly detailed shallow-water imaging.

Narrow Beam Technology

• Low-frequency beamwidth: 16°–25°.
• High-frequency beamwidth: 6°–10°.
• Enhances fish target separation.
• Improves bottom definition and structure detection.

Deep-Water Capability

• Maximum operating depth of 3,000 feet.
• Excellent bottom tracking performance.
• Reliable operation in offshore environments.
• Suitable for coastal and deep-water fishing.

In-Hull Installation

• No external thru-hull fitting required.
• Maintains a smooth hull profile.
• Reduces drag and external exposure.
• Ideal for fiberglass hull installations.

Broad Compatibility

• Supports hull deadrise from 0° to 30°.
• Compatible with supported Garmin sonar systems.
• Designed for demanding marine applications.
• Not recommended for cored-hull vessels.

Performance Insights

The Garmin AIRMAR M265LH combines low and high CHIRP frequencies to provide exceptional sonar performance across a wide range of fishing conditions. The low-frequency CHIRP delivers outstanding depth penetration for offshore environments, while the high-frequency CHIRP produces sharp images that clearly distinguish fish, bait schools, and underwater structures.

Its narrow beam design provides excellent target separation, allowing anglers to identify individual fish with greater confidence. The in-hull installation protects the transducer from external impacts while maintaining the boat's hydrodynamic performance, making it an ideal solution for fiberglass vessels used in offshore and coastal waters.

Usage Instructions

Install the M265LH according to the supplied Garmin and AIRMAR installation instructions. The transducer is designed for in-hull installation on compatible fiberglass boats with hull deadrise angles between 0° and 30°.

Connect the transducer to a compatible Garmin sonar system and configure the sonar settings based on your fishing conditions. Periodically inspect the installation to ensure optimal performance.

Note: This transducer is not recommended for cored-hull vessels. Always follow the installation instructions carefully to avoid damage to your boat.

Design & Construction

The Garmin AIRMAR M265LH features a robust in-hull design that delivers premium sonar performance while protecting the transducer inside the vessel. Its powerful 1 kW CHIRP technology and dual-frequency operation provide excellent versatility for both offshore and coastal fishing without compromising hull integrity.

Design Highlights

• Premium 1 kW CHIRP transducer
• In-hull mounting design
• Dual CHIRP frequency operation
• Low frequency: 42–65 kHz
• High frequency: 130–210 kHz
• Maximum operating depth of 3,000 feet
• Narrow beam technology for precise imaging
• Outstanding target separation
• Excellent bottom tracking performance
• Supports 0°–30° hull deadrise
• Clean installation with no external hardware
• Designed for fiberglass hulls
• Reduced drag compared to thru-hull installations
• Compatible with Garmin sonar systems
• Rugged marine-grade construction
• Not recommended for cored-hull vessels

Final Verdict

The Garmin AIRMAR M265LH In-Hull CHIRP Transducer is an outstanding choice for anglers who want professional-grade sonar performance without installing an external transducer. Its powerful 1 kW output, dual CHIRP frequencies, narrow beam imaging, and reliable 3,000-foot depth capability deliver exceptional underwater clarity for both offshore and coastal fishing. With its protected in-hull design and premium image quality, the M265LH offers an ideal combination of performance, durability, and installation convenience for serious marine enthusiasts.
