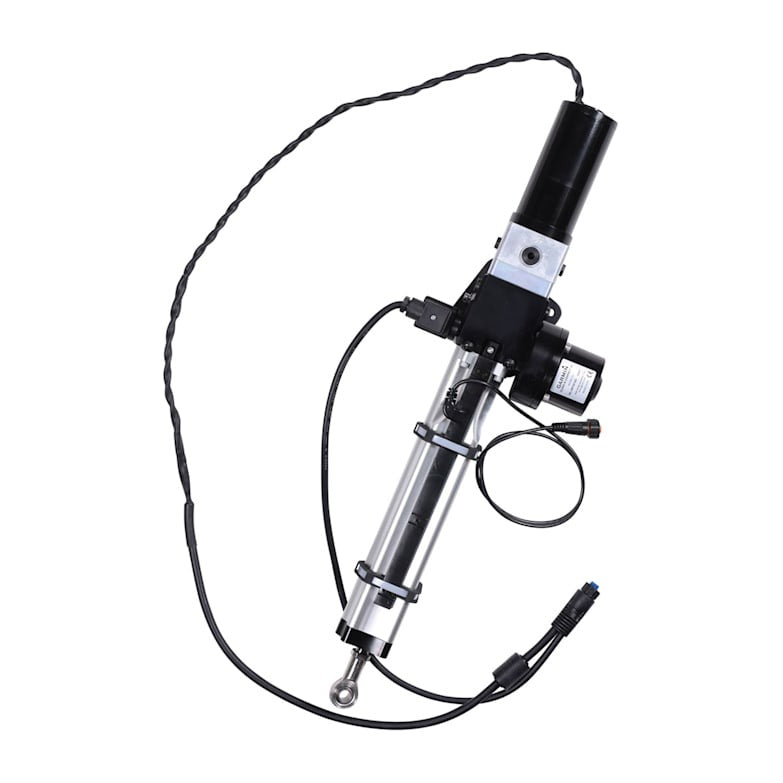

Garmin Class B Compact v2 Drive Unit (010-12029-01)

Introduction

The Garmin Class B Compact v2 Drive Unit (model 010-12029-01) is purpose-built to deliver dependable autopilot steering control for mid-sized sailboats integrated with the Garmin Reactor™ 40 autopilot system. This drive unit translates autopilot commands into precise steering movements, automating the physical task of maintaining course and reducing the manual effort required during extended passages. Engineered specifically for vessels with displacement up to 48,400 lbs, the Compact v2 offers responsive steering performance while maintaining efficient power consumption across a range of sailing conditions—from coastal cruising to demanding offshore voyages.

Key Features

• Reactor™ 40 Compatibility: Designed for Garmin Reactor™ 40 autopilot systems supporting Mechanical, Retrofit, and Solenoid Corepacks with seamless network integration
• Maximum Vessel Displacement: Rated for sailboats up to 48,400 lbs, suitable for mid-sized cruising and offshore sailing platforms
• Compact Form Factor: Space-efficient design reduces installation complexity and fits flexibly within existing steering system layouts
• Precise Rudder Control: Delivers accurate steering adjustments for improved course tracking and navigation response in varying sea states
• Marine-Grade Durability: Built for demanding marine environments with robust construction for long-term reliability and consistent performance
• Retrofit-Compatible Installation: Engineered for both new installations and upgrade applications on existing sailboat systems

Data Insights

The Class B Compact v2 serves as the mechanical interface within the Garmin Reactor™ 40 autopilot ecosystem, enabling consistent heading maintenance and reducing manual steering corrections. By automating routine steering tasks, the drive unit significantly reduces physical fatigue during long-distance passages, allowing crew to focus on sail trim, navigation planning, and vessel management. Its responsive operation maintains heading accuracy while supporting the full range of advanced autopilot functionality available through compatible Garmin marine electronics and network integration.

Usage Instructions

Install the Class B Compact v2 Drive Unit according to Garmin installation documentation, ensuring proper connection to a compatible Reactor™ 40 Mechanical, Retrofit, or Solenoid Corepack. Configure and calibrate the steering linkage and drive mechanisms during setup, then perform recommended autopilot commissioning and sea trial procedures to optimize steering response and vessel handling. Regularly inspect drive system components and connections to maintain reliable operation throughout the service life of the unit.

Design & Material

The Garmin Class B Compact v2 is engineered with a compact, marine-ready design that balances space efficiency with mechanical strength. Its construction delivers durability for continuous autopilot steering operations while integrating seamlessly into Garmin autopilot ecosystems. The unit is optimized for both recreational and offshore sailing applications where dependable performance and long-term reliability are essential.

• Designed specifically for Garmin Reactor™ 40 autopilot system compatibility and ecosystem integration
• Compatible with Mechanical, Retrofit, and Solenoid Corepack configurations for flexible system pairing
• Compact installation-friendly design enabling retrofit and new-build applications with reduced space requirements
• Rated for sailboats with displacement up to 48,400 lbs across cruising and offshore sailing platforms
• Durable marine-grade construction built to withstand demanding coastal and offshore sailing environments
• Precision steering control supporting smooth, responsive autopilot operation and improved course management

Final Verdict

The Garmin Class B Compact v2 Drive Unit is an essential autopilot component for sailors operating mid-sized sailboats with Reactor™ 40 systems who demand reliable course management and reduced steering fatigue. With its compact design, robust marine construction, and seamless Garmin integration, this drive unit delivers the precision steering control necessary for both coastal cruising and extended offshore passages. Choose the Class B Compact v2 to enhance navigation efficiency, improve crew comfort, and gain the dependable automated steering performance that long-distance sailing demands.
