Garmin ECHOMAP Ultra 2 Ice House System with LiveScope Plus Sonar

Introduction

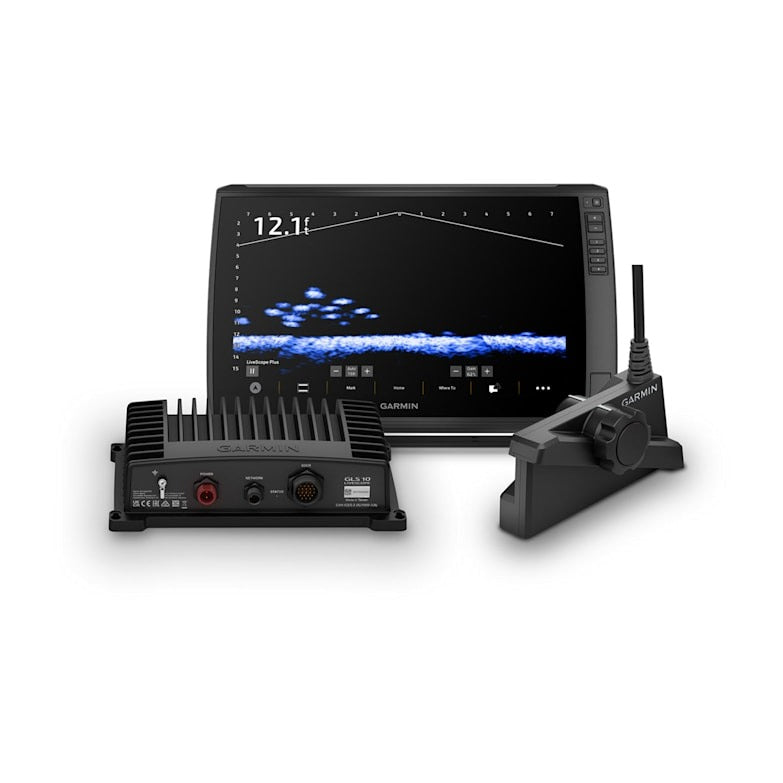

The Garmin ECHOMAP Ultra 2 Ice House System combines real-time sonar imaging with detailed mapping and a large touchscreen display to give ice anglers live visibility beneath frozen surfaces. Built around the ECHOMAP Ultra 2 166sv chartplotter paired with the LiveScope Plus System, this package delivers near-instantaneous sonar views, structure identification, and fish movement tracking—the core data serious ice fishers need to react decisively on the water. The 16-inch Full HD IPS display renders crisp underwater imagery and mapping detail even in low light, while HDMI output lets anglers project sonar feeds to a television inside the ice house for shared viewing or closer analysis.

Key Features

• 16-inch Full HD IPS touchscreen display with responsive touchscreen operation for intuitive control in cold conditions
• LiveScope Plus System includes GLS 10 sonar black box delivering near real-time sonar imaging with exceptional target separation and clarity
• LVS34-IF LiveScope transducer engineered with cold-weather flexible cable for reliable operation in freezing temperatures
• Preloaded Garmin Navionics+ mapping covering more than 25,000 inland and coastal lakes with detailed contour data
• Dual viewing modes: LiveScope Forward scanning and LiveScope Down mode for direct ice-hole monitoring via included 0-degree swivel pole mount
• HDMI output support enabling sonar and mapping display on external televisions and monitors for enlarged viewing in ice houses

Data Insights

The LiveScope Plus System provides near real-time sonar image acquisition, allowing anglers to observe fish behavior, lure position, and structural elements as they occur rather than delayed playback. With the 16-inch display offering 1920x1080 resolution, users retain clarity and detail across simultaneous sonar windows, mapping overlays, and custom screen layouts. The ability to toggle between Forward and Down scanning modes within seconds—using the swivel pole mount—gives anglers tactical flexibility when switching between different fishing techniques or hole locations. Garmin Navionics+ mapping of 25,000+ lakes provides contour and bathymetric data that reduces search time and improves targeting of productive fishing zones.

Usage Instructions

Mount the LVS34-IF transducer to the included swivel pole and position it through the ice hole, selecting either LiveScope Forward or Down mode based on your fishing approach. Connect the GLS 10 sonar module to the ECHOMAP Ultra 2 chartplotter and use the touchscreen to configure sonar and mapping display combinations. For group fishing or enhanced visibility, connect the system to a television via HDMI. Reference the preloaded Garmin Navionics+ maps to identify contour breaks and depth transitions, then monitor live sonar to pinpoint fish location and response to your lure.

Design & Material

The system is engineered specifically for ice fishing environments, with materials and construction chosen to endure prolonged cold exposure and rapid temperature swings. The LVS34-IF transducer cable maintains flexibility in freezing conditions, eliminating the brittleness that degrades standard transducer cables in winter. The chartplotter's Full HD IPS panel resists glare and maintains color accuracy across a wide viewing angle, critical when multiple anglers crowd an ice house shelter. The robust mounting hardware and sonar electronics are built for reliable winter field duty.

• 16-inch Full HD IPS touchscreen display with wide viewing angles and excellent low-light performance
• LVS34-IF LiveScope transducer with specialized low-temperature flexible cable
• GLS 10 sonar black box with advanced signal processing for target separation and clarity

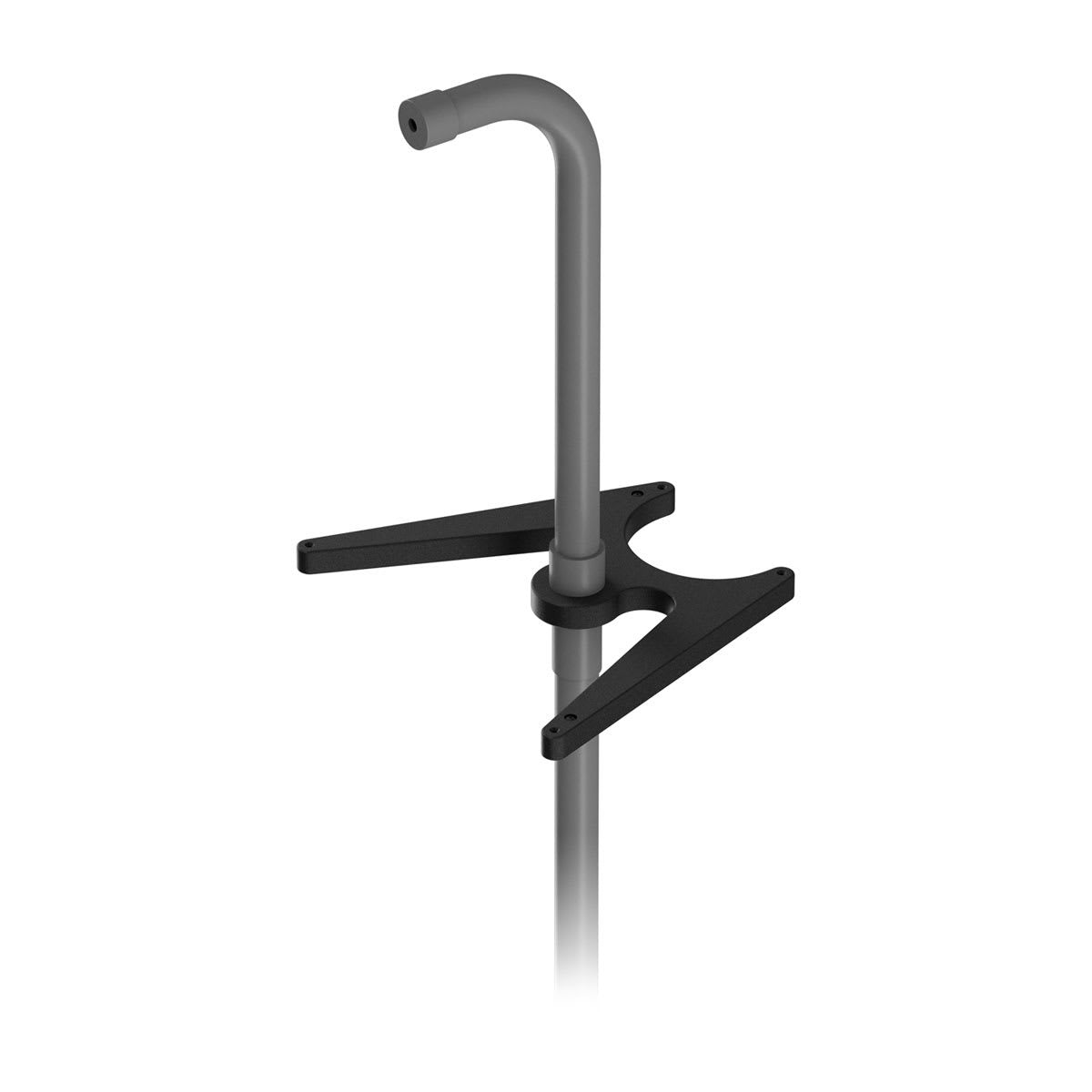

• Swivel pole mount with 0-degree positioning for Forward and Down mode scanning
• HDMI output for external display connectivity in ice houses
• Customizable sonar and mapping screen layouts for personalized workflow optimization

Final Verdict

The Garmin ECHOMAP Ultra 2 Ice House System delivers premium sonar imaging and navigation in a purpose-built package for dedicated ice anglers. With near real-time LiveScope sonar, extensive Garmin Navionics+ lake mapping covering thousands of fisheries, and a large responsive display, this system provides the situational awareness and tools needed to fish faster and more confidently. Whether you're tracking fish movement in real time, analyzing bottom structure, or sharing sonar data with fellow anglers on a larger screen, the ECHOMAP Ultra 2 Ice House System offers integrated hardware and software that transforms ice fishing from guesswork into data-driven success. For serious anglers committed to maximizing winter catch rates, this all-in-one platform is a direct investment in on-ice performance.
