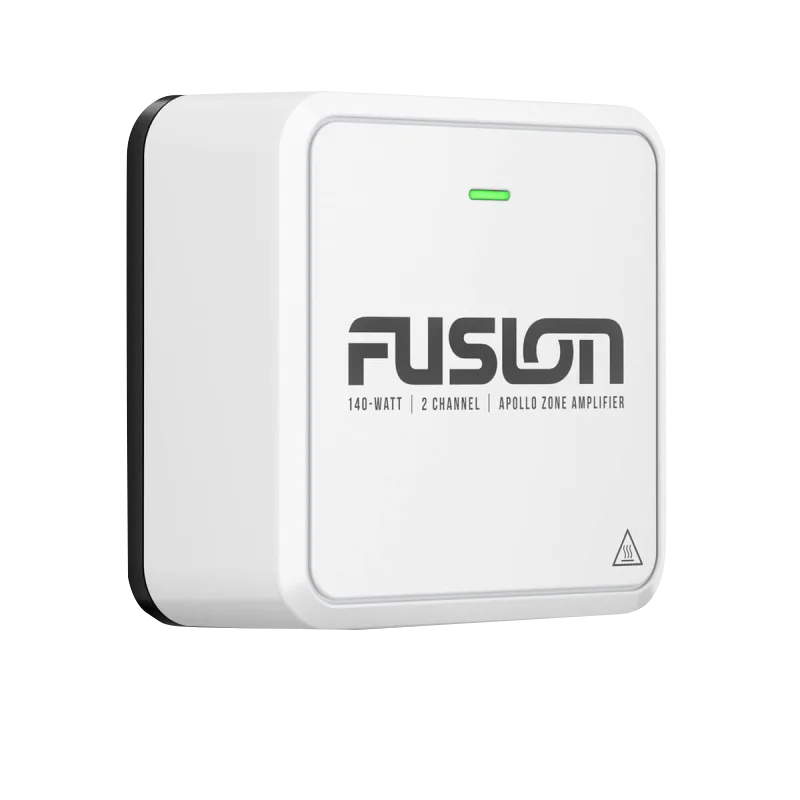

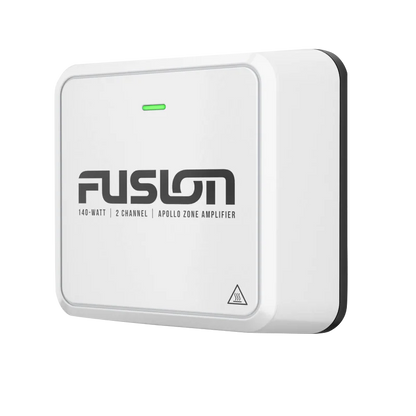

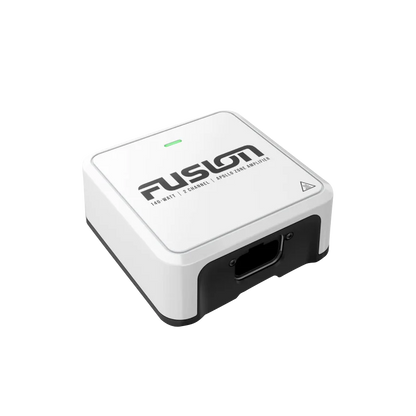

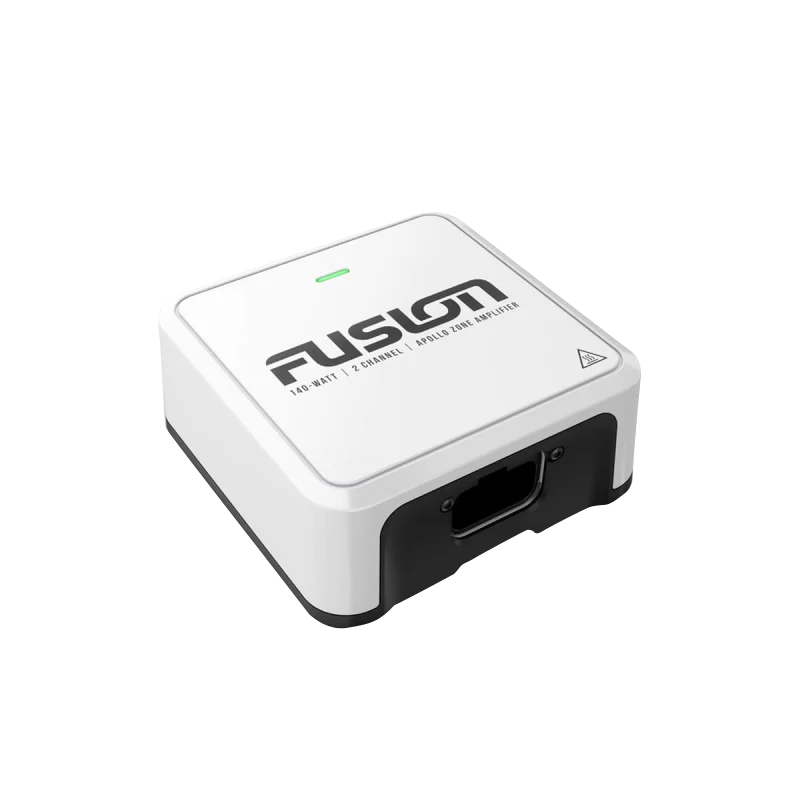

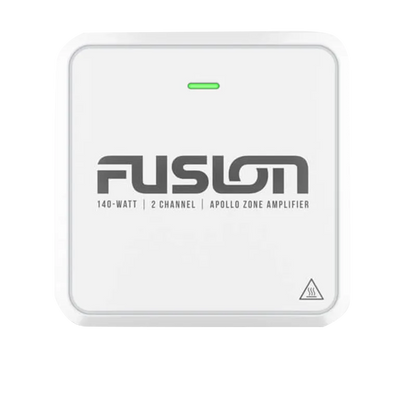

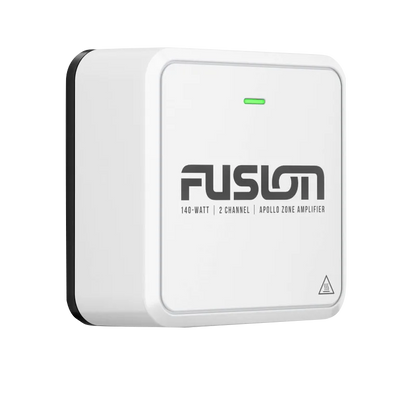

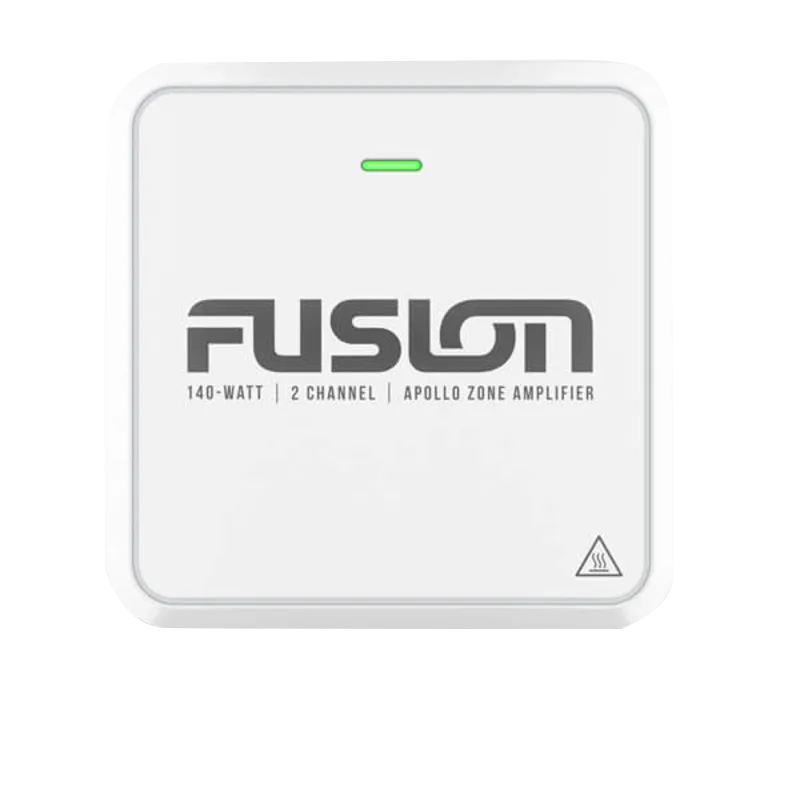

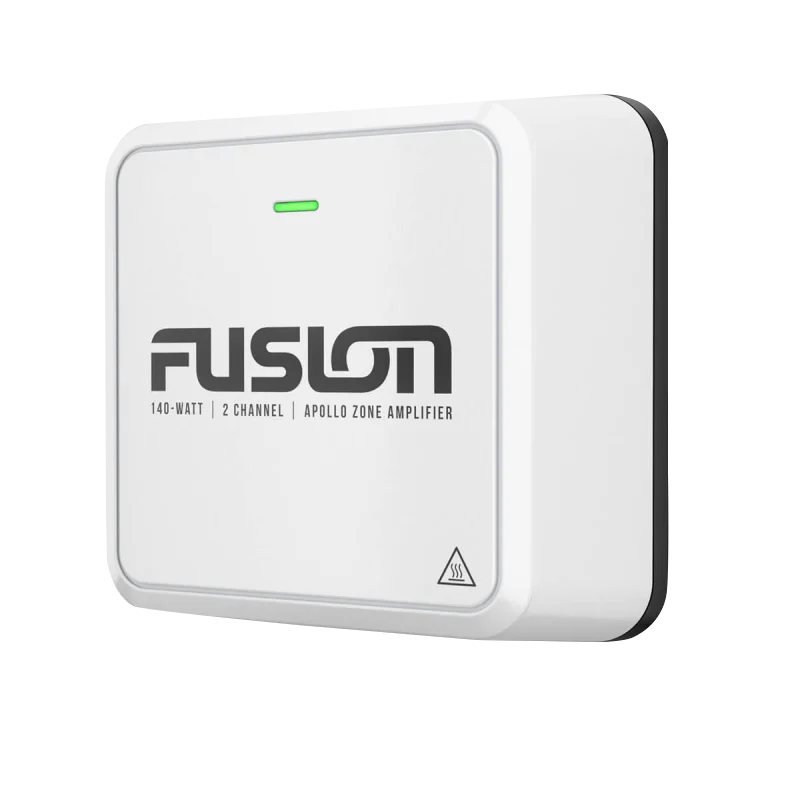

Garmin Fusion Apollo 140-Watt 2-Channel Zone Marine Amplifier (010-02569-00)

Introduction

The Garmin Fusion Apollo Zone Marine Amplifier delivers 140 watts of power across two channels, designed specifically to extend audio coverage to additional deck areas, cabin spaces, or engine compartments where your boat's head unit signal doesn't reach effectively. By operating at 2-ohm stability with the capability to connect up to two speakers per channel, this amplifier transforms your marine audio system from a single-zone setup into a multi-zone entertainment environment without the signal dropout or quality loss that comes from simple line-level splitting.

Key Features

• 140-watt total output power across 2 channels with 2-ohm stable configuration
• 12V and 24V system compatibility for both conventional and larger vessel power systems
• Easy Tune Technology that auto-calibrates audio EQ and crossover settings to match your speaker configuration
• 15% reduction in audio distortion compared to previous-generation models, maintaining signal clarity at full volume
• LED diagnostic indicators for real-time monitoring of power status, overheating, and electrical faults
• Ignition-triggered protection circuitry that prevents thermal damage during unattended idle periods
• Accommodates up to two speakers per channel with selectable impedance modes

Data Insights

Marine environments introduce moisture, salt spray, and vibration that degrade standard audio electronics rapidly. The Garmin Fusion Apollo addresses these hazards with measurable performance durability: conformal-coated printed circuit boards resist salt corrosion, the Fusion True-Marine™ design specification includes salt fog and UV exposure testing, and the amplifier's thermal management system prevents the efficiency loss that causes most marine amplifier failures. The 15% distortion reduction figure reflects direct comparison against previous Fusion models, meaning users experience cleaner bass and more defined midrange even when pushing volume to compensate for engine and wind noise typical on the water.

Usage Instructions

Mount the amplifier in a well-ventilated area of your boat—typically the lazarette, engine compartment locker, or cabin console space—using the included stainless steel brackets to prevent vibration coupling. Connect your 12V or 24V power feed directly to the battery with properly sized marine-grade wire, ground to a clean, unpainted metal surface, and run remote turn-on wire from your head unit. Wire speaker outputs to your new zone speakers, then activate Easy Tune Technology through your Garmin head unit to automatically optimize crossover and EQ settings. Refer to LED indicator status during operation to confirm normal function and identify any electrical issues before they cause system failure.

Design & Material

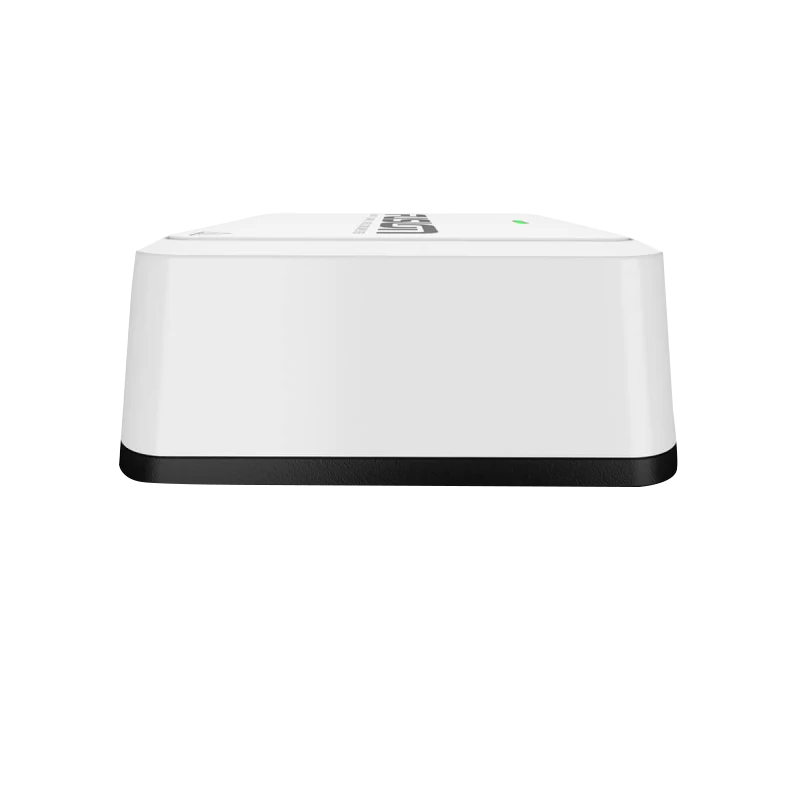

The Garmin Fusion Apollo occupies minimal footprint in tight marine installations, measuring approximately 6 inches across, with a white powder-coat finish that resists corrosion and blends with modern console aesthetics. Every internal component is engineered for salt-water environments, not simply deployed in them.

• Conformal-coated PCBs seal circuit traces and component leads against moisture infiltration and galvanic corrosion from airborne salt particles
• Fusion True-Marine™ certification includes documented salt fog testing per ASTM B117 standards, plus UV and vibration resistance validation
• Compact rectangular enclosure design fits under seats, into console cavity spaces, and behind bulkheads where traditional amplifier dimensions won't fit
• Stainless steel mounting bracket kit included; avoids aluminum corrosion and fastener seizure common in marine installations
• Heavy-duty potted transformer and capacitor bank rated for 24/7 operation in high-temperature engine compartments without frequency derating
• Temperature-compensated thermal cutoff protection prevents shutdown during legitimate high-output periods while blocking damage from blocked ventilation or shorted speaker wiring

Final Verdict

If your boat's audio system leaves rear deck or cabin areas silent, or if you've experienced amplifier corrosion within two years of ownership, the Garmin Fusion Apollo is the purpose-built solution that addresses both audio expansion and marine durability in one unit. The 140-watt platform supports realistic speaker upgrades, dual-voltage compatibility eliminates guesswork about your boat's electrical system, and the Fusion True-Marine™ designation means Garmin has tested this amplifier in conditions your boat will actually experience. Install it with confidence and your audio system will perform season after season.
