Garmin GMI Wired Start Pack 52 — Complete Marine Instrument System with Wind and Water Sensors

Introduction

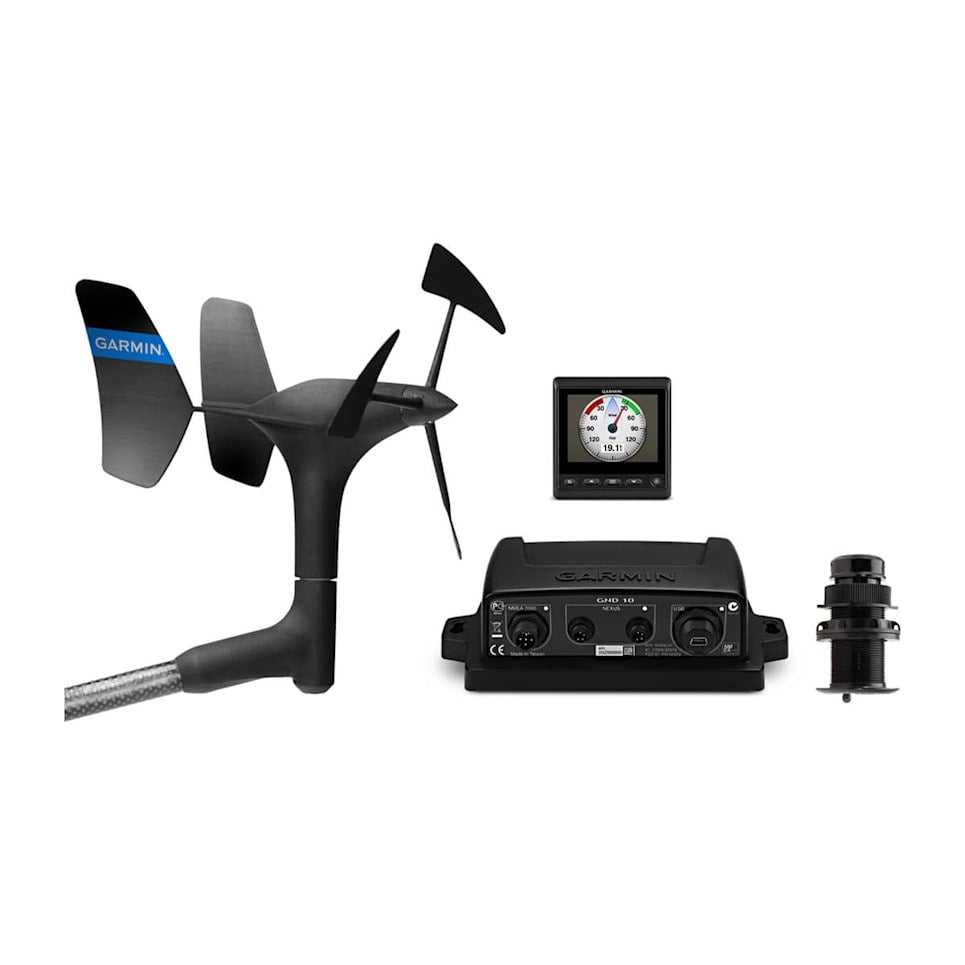

The Garmin GMI Wired Start Pack 52 is a complete, ready-to-install marine instrument solution that eliminates guesswork when assembling a boat's sensor network. Unlike buying components separately, this package bundles three essential instruments—the GMI 20 display, gWind Wired wind transducer, and AIRMAR DST810 thru-hull transducer—designed to work together seamlessly over NMEA 2000 wired connectivity. Boat owners get real-time data on wind, water depth, boat speed, temperature, and vessel attitude (heel, trim, pitch, and roll) from a single integrated system, with the flexibility to expand as needed.

Key Features

• GMI 20 marine display with 4-inch color screen and glass-bonded anti-glare lens for full sunlight and low-light readability
• 170-degree wide viewing angle for visibility from multiple helm positions on the boat
• Displays over 100 marine and vessel parameters including wind, depth, speed, temperature, and navigation data
• gWind Wired transducer with twin-fin technology and three-bladed propeller for accurate true wind readings, especially in light wind conditions below 5 knots
• AIRMAR DST810 smart transducer operating at 235 kHz with depth measurement capability up to 330 feet and 5 Hz water speed output for responsive boat speed display
• Customizable display profiles and automatic page scrolling to match sailing or powerboating preferences
• Wireless calibration capability through the AIRMAR Cast mobile app for precision transducer setup
• NMEA 2000 connectivity for plug-and-play integration with compatible Garmin chartplotters and other marine electronics

Data Insights

The combination of sensors in this package delivers comprehensive situational awareness on the water. The gWind Wired transducer uses optical sensor technology to measure true wind angle and speed independently of boat motion, improving accuracy by 30 to 40 percent compared to standard cup anemometers in variable wind. The DST810 thru-hull transducer's 235 kHz frequency strikes a balance between depth penetration and target resolution, ideal for coastal and offshore use where water clarity and depth range matter equally. The GMI 20 display processes data from both sensors simultaneously and displays it across 100+ configurable parameters, giving crews access to the specific vessel metrics they need—whether monitoring heel angle while racing, tracking bottom composition while fishing, or maintaining precise speed control while cruising.

Usage Instructions

Mount the GMI 20 display at the helm, install the gWind Wired transducer on the mast or other elevated location where it has clear wind exposure, and mount the DST810 smart transducer through the hull in a location free from turbulence. Connect all three components using NMEA 2000 backbone cable and drop cables to your existing marine electrical system or create a new network if starting fresh. Use the AIRMAR Cast app on your smartphone to wirelessly calibrate the DST810, then configure the GMI 20's display pages through its menu system to show the parameters most relevant to your boating style. Once configured, the system operates autonomously and integrates automatically with any compatible Garmin chartplotter on the network.

Design & Material

This system is built for the marine environment where salt spray, UV exposure, and constant vibration test equipment durability. All three components use corrosion-resistant materials and sealed connectors to survive years of year-round operation, whether on sailboats, powerboats, or fishing vessels. The GMI 20 display features a solid black anodized bezel and tempered glass lens that resists scratching, while the wired transducers employ stainless steel and reinforced composite bodies designed to withstand impact and fatigue.

• GMI 20 display with premium glass-bonded anti-glare lens for optical clarity without washout in glare conditions
• gWind Wired transducer with stainless steel twin-fin vane and three-bladed propeller assembly for corrosion resistance and low-wind sensitivity
• AIRMAR DST810 thru-hull transducer with bronze or stainless steel construction depending on hull material compatibility
• NMEA 2000 connectors and cabling with double-sealed connections to prevent water ingress and electrical corrosion
• Rugged black composite and powder-coated metal housing throughout the GMI 20 and control units for durability in high-vibration environments
• Day and night viewing modes with automatic brightness adjustment to protect night vision and reduce glare in low-light navigation

Final Verdict

The Garmin GMI Wired Start Pack 52 removes the complexity and cost of sourcing compatible marine instruments separately. By bundling the GMI 20, gWind Wired, and DST810 into a single system with NMEA 2000 integration, Garmin delivers a complete instrument foundation that works immediately upon installation and grows as your boat's electronics expand. Whether you're a cruising sailor who needs accurate wind data, a fishing captain tracking depth and bottom conditions, or a powerboater focused on precise speed and navigation, this package provides the accuracy, redundancy, and flexibility needed to make confident decisions on every voyage. Choose the GMI Wired Start Pack 52 to establish a professional-grade marine instrument network without the assembly hassle.
