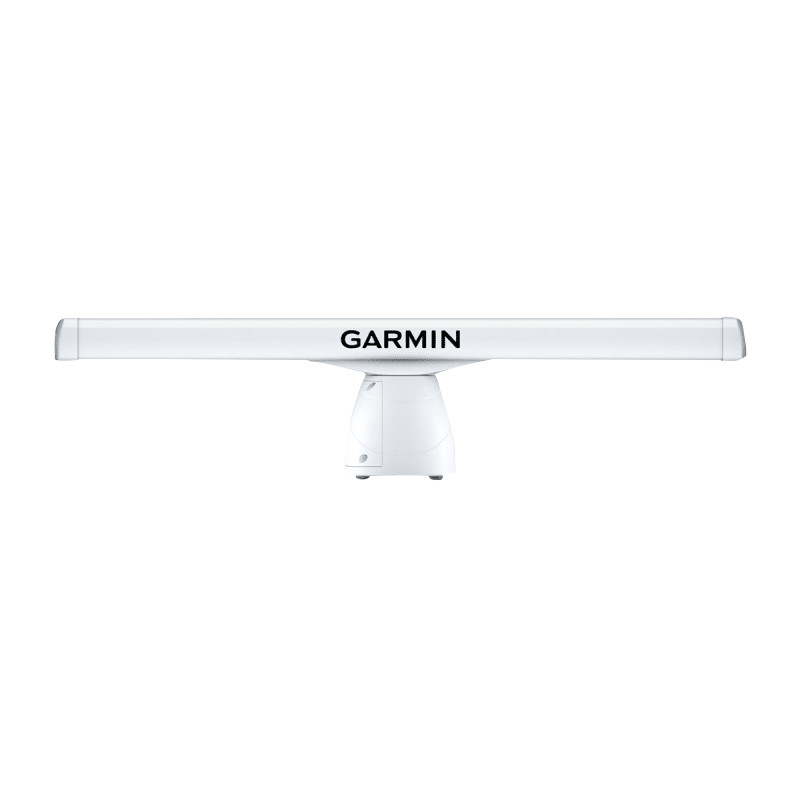

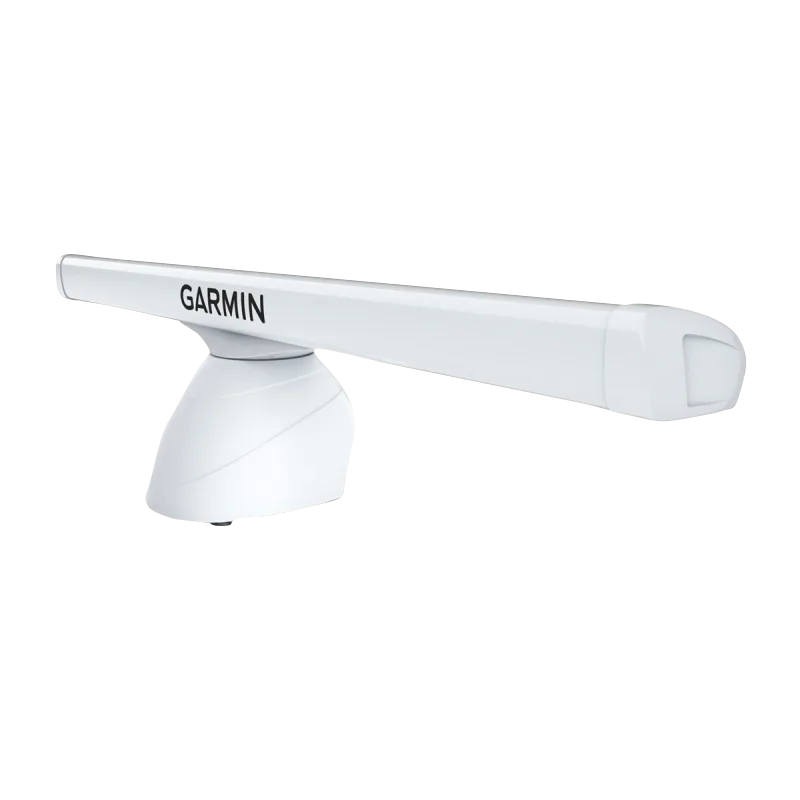

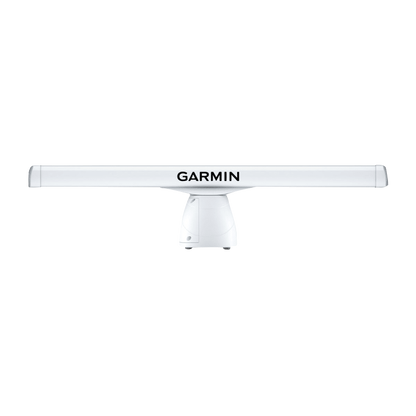

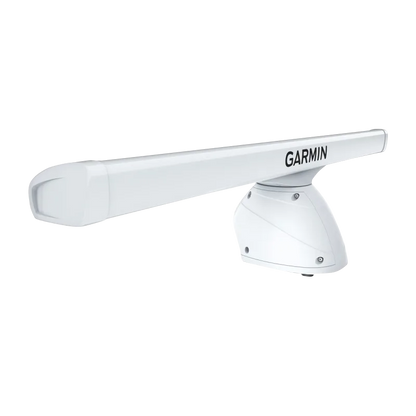

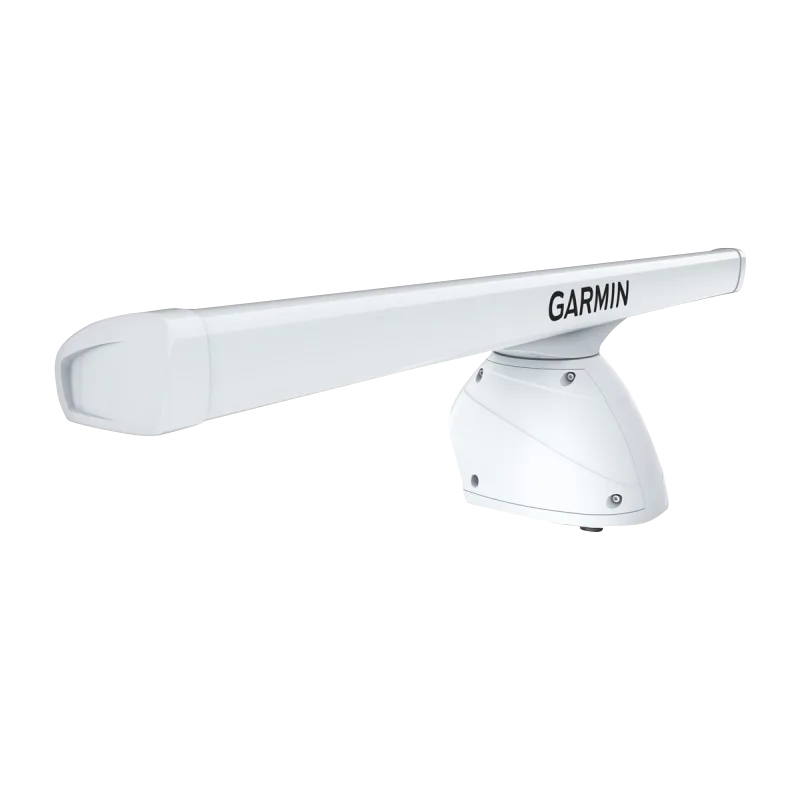

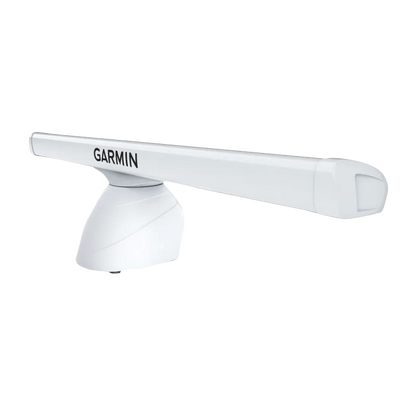

Garmin GMR 2534/2536 xHD3 Open Array Radar and Pedestal System

Introduction

The Garmin GMR 2534/2536 xHD3 Open Array Radar delivers professional-grade navigation surveillance for mariners who operate offshore. This open-array system combines high-definition imaging with reliable target detection, enabling you to identify weather systems, vessels, and navigational hazards at significant distances. Whether you're offshore cruising or running commercial fishing operations, this radar fundamentally improves situational awareness and collision avoidance capability on the water.

Key Features

• Output Power Options: 4 kW, 12 kW, or 25 kW configurations for different installation requirements
• Maximum Detection Range: Up to 96 nautical miles with the 25 kW model
• Dual-Range Split-Screen Display: Simultaneously monitor close-range and long-range targets for comprehensive coverage
• MARPA Target Tracking: Tracks up to 30 moving targets with automated relative motion acquisition and prediction
• Scan Averaging Technology: Reduces sea clutter interference by up to 40% for clearer target definition
• Wind Survivability: Rated for sustained winds up to 100 knots without performance degradation
• Quiet Operation: Smooth open-array drive motor eliminates mechanical noise during extended operations
• Angular Target-Size Adjustment: Precision-calibrated on-screen object rendering across all range scales

Data Insights

The GMR 2534/2536 xHD3 delivers measurable safety improvements on the water. Marine collision avoidance systems using advanced radar detection can reduce navigation-related incidents by over 50% compared to visual navigation alone. The automated MARPA tracking of up to 30 simultaneous targets provides continuous monitoring of vessel traffic and moving weather cells, with consistent detection capability across the full 96-nautical-mile range in optimal conditions. Scan averaging further enhances radar clarity in heavy sea states when target identification matters most.

Usage Instructions

Mount the GMR 2534/2536 at the highest practical point on your vessel to maximize radar horizon and minimize blind spots. Calibrate the system to your vessel's actual speed and heading during initial setup for accurate MARPA tracking. Use the dual-range display feature to split your screen between a near-range window (2 to 8 nautical miles) and a long-range window (16 to 96 nautical miles), adjusting scan averaging and sensitivity based on sea state and target type. Reposition sensitivity settings when transitioning between calm waters and rough seas to maintain optimal clutter rejection.

Design & Material

The GMR 2534/2536 features a purposeful open-array design that prioritizes performance in marine environments. The antenna array maximizes electromagnetic efficiency while the streamlined pedestal minimizes wind loading and structural drag. Every component is engineered for durability in saltwater exposure and demanding offshore conditions.

• Open-Array Antenna Configuration: High-efficiency design for extended detection range without performance loss
• Corrosion-Resistant Construction: Marine-grade materials withstand continuous saltwater spray and UV exposure
• Radome-Free Design: Eliminates radome degradation and maintains consistent performance over years of operation
• Commercial-Grade Craftsmanship: Built to rigorous marine electronics standards for long-term reliability
• Aerodynamic Profile: Low-profile pedestal reduces wind resistance and structural loading on deck installations
• Easy-Mount Pedestal: Designed for rapid installation on a variety of mast and hard-top configurations

Final Verdict

For offshore operators and serious cruisers, the Garmin GMR 2534/2536 xHD3 represents the radar capability you need when weather and traffic complexity demand precise detection. With scalable power options, full-range target tracking, and proven performance in heavy conditions, this system transforms your navigation confidence and operational safety. Choose the model (K10-00012-29) that matches your vessel size and intended operating range—your crew's safety depends on the clarity and range only professional radar delivers.
