Garmin GNX Wired Sail Pack 52: Complete Wind and Water Instrumentation System with Dual Displays and Smart Transducers

Introduction

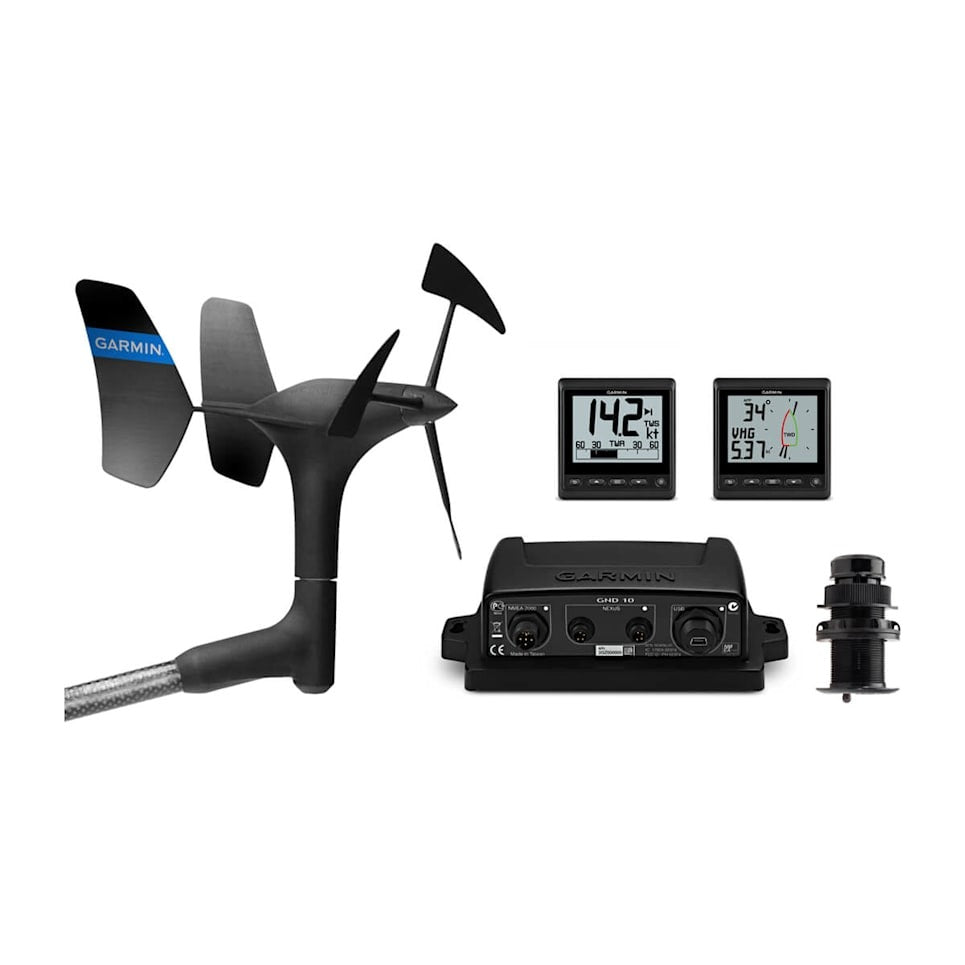

The Garmin GNX Wired Sail Pack 52 delivers a complete sailing instrumentation solution that combines independent wind monitoring and water-sensing systems into one NMEA 2000 integrated package. Built for both cruising and racing sailors, this system eliminates the need to assemble components separately—you receive the GNX Wind display, GNX 20 data display, gWind Wired wind transducer, and AIRMAR DST810 smart thru-hull transducer ready for coordinated installation. By providing continuous true and apparent wind data alongside depth, speed, temperature, and attitude information, the Garmin GNX Wired Sail Pack 52 gives sailors the actionable intelligence needed for consistent performance whether racing competitively or navigating unfamiliar waters.

Key Features

• GNX Wind instrument with monochrome LCD display showing true and apparent wind with digital wind rose guidance
• GNX 20 marine instrument supporting over 50 marine data parameters including depth, water speed, and water temperature
• gWind Wired transducer with twin-fin technology and three-bladed propeller for accurate wind measurement in winds under 5 knots
• AIRMAR DST810 smart thru-hull transducer operating at 235 kHz frequency with depth-reading capability up to 330 feet
• DST810 water speed output at 5 Hz refresh rate with six-axis motion sensing for heel, trim, pitch, and roll data
• NMEA 2000 network connectivity with plug-and-play wired installation and compatibility with Garmin chartplotters and marine smartwatches
• Glass-bonded anti-glare displays with high-contrast monochrome screens for visibility in direct sunlight and low-light conditions
• Wireless calibration capability through AIRMAR Cast app for the DST810 transducer without manual adjustments

Data Insights

The system's performance advantage lies in its separation of wind and water sensing into specialized instruments. The gWind Wired transducer uses optical sensor technology with its three-bladed propeller to maintain accuracy in light-air conditions where single-fin designs lose sensitivity—critical for racers in shifty coastal conditions. The DST810's 235 kHz operating frequency and 5 Hz water speed output provide real-time updates fast enough to detect speed changes during sail trim adjustments. By combining these transducers with displays capable of processing more than 50 marine data parameters simultaneously, the system provides the situational awareness needed during tactical racing or coastal navigation, where decisions must account for both wind and water dynamics changing within seconds.

Usage Instructions

Install the gWind Wired transducer at the mast top and mount the DST810 thru-hull transducer through the hull below the waterline according to Garmin's installation guidelines. Position the GNX Wind and GNX 20 displays in accessible locations on the helm or cabin. Connect all four components to a compatible NMEA 2000 network backbone or to a Garmin chartplotter via the included network cables. Calibrate the DST810 transducer using the AIRMAR Cast app on your compatible smartphone or tablet by entering water temperature and salinity values for your cruising region. Customize the display layouts on both the GNX Wind and GNX 20 to show only the parameters most relevant to your sailing style—some sailors prioritize wind data, others prioritize depth and speed. Inspect transducers and displays monthly for corrosion or physical damage, especially after saltwater passages.

Design & Material

The Garmin GNX Wired Sail Pack 52 uses a modular instrument design that separates wind and water data into independent displays while maintaining unified NMEA 2000 network communication. Each instrument features a rugged marine-grade plastic housing rated for saltwater exposure, with glass-bonded monochrome LCD screens engineered to remain readable in bright sunlight without backlight washout. The gWind transducer incorporates extruded aluminum construction for the sensor body and stainless steel fasteners, while the DST810 uses a bronze thru-hull fitting designed to resist corrosion in long-term seawater immersion.

• Dual monochrome LCD displays with glass-bonded anti-glare protective screens for superior readability in all light conditions
• Marine-grade plastic instrument housings with UV-resistant coatings for extended deck exposure
• gWind Wired transducer featuring aluminum sensor body, stainless steel propeller shaft, and titanium-coated twin-fin design
• Three-bladed propeller design optimized for low-wind sensitivity and calibrated rotation accuracy across the full wind speed range
• AIRMAR DST810 with bronze thru-hull fitting and stainless steel internal components for galvanic corrosion resistance
• NMEA 2000 network cabling with sealed connectors and polyethylene jacketing to withstand UV exposure and saltwater spray
• User-replaceable display back-lighting elements and field-serviceable transducer components to extend system service life

Final Verdict

The Garmin GNX Wired Sail Pack 52 is the practical choice for sailors who want dedicated wind and water instrumentation integrated into a single NMEA 2000 ecosystem without the complexity of assembling parts individually. The inclusion of both the gWind Wired transducer and the AIRMAR DST810 smart transducer in one package eliminates compatibility guesswork and reduces installation time. Whether you are refitting an older cruising sailboat with modern instrumentation or upgrading a racing program with sensors capable of capturing true wind, heel angle, and pitch data simultaneously, this system delivers the accuracy and connectivity required to sail with confidence in variable conditions. Order the Garmin GNX Wired Sail Pack 52 now and transform raw wind and water data into actionable tactical information.
