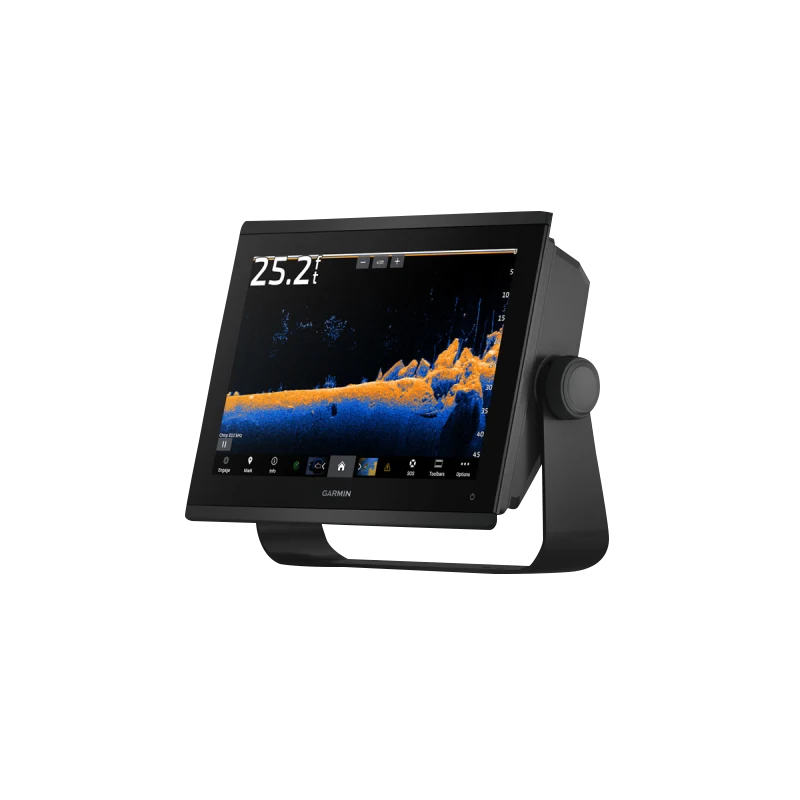

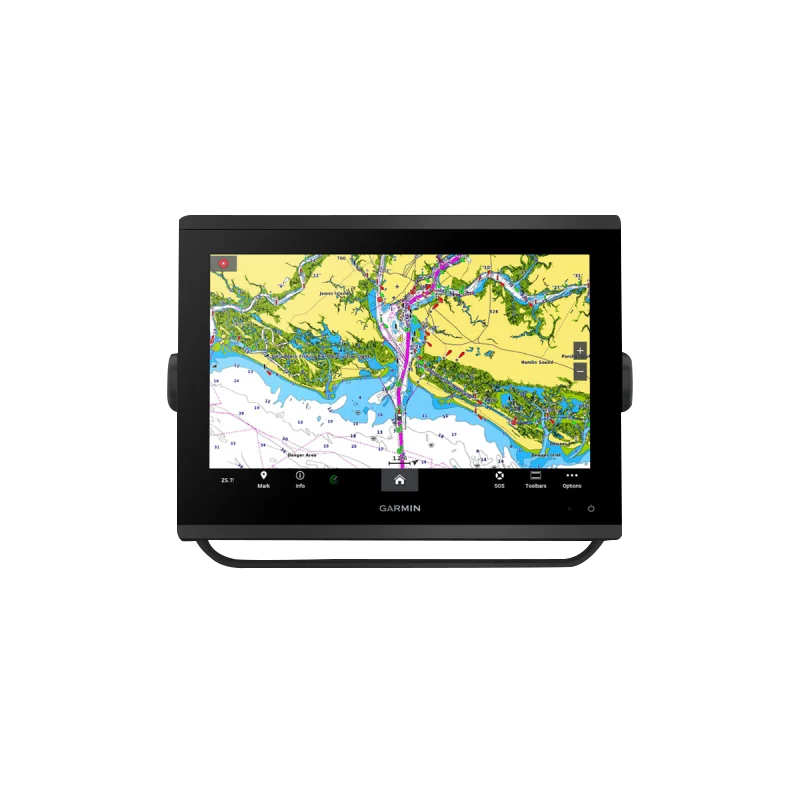

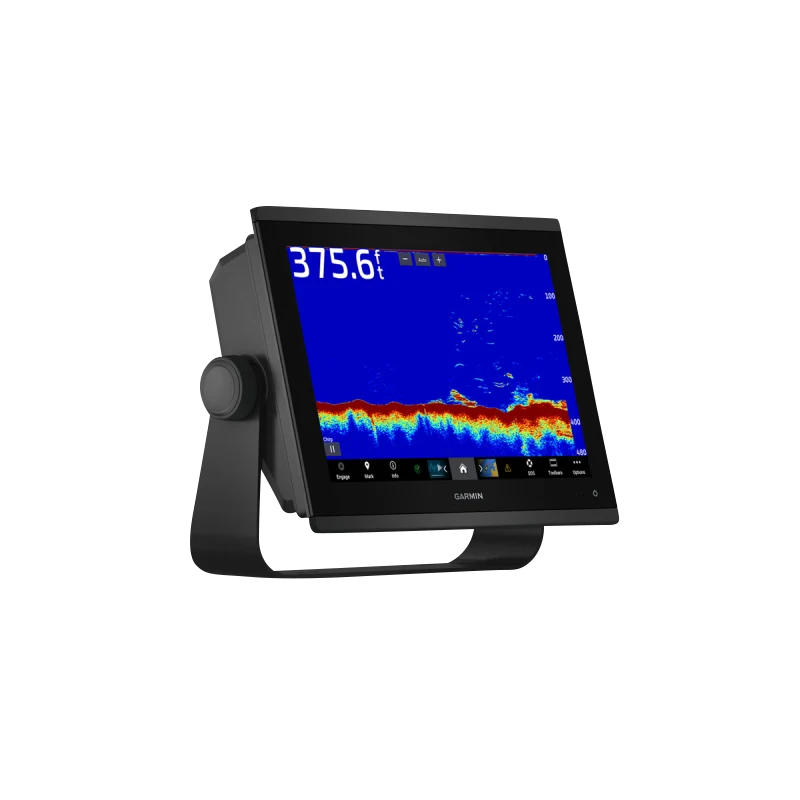

Garmin GPSMAP 1243xsv Marine Chartplotter with SideVü, ClearVü and CHIRP Sonar

Introduction

The Garmin GPSMAP 1243xsv combines three sonar types—SideVü, ClearVü, and traditional CHIRP—with integrated mapping on a 12-inch IPS display, delivering the visual clarity and navigation control serious anglers and cruising captains depend on. This chartplotter transforms how you read the water by providing real-time bottom structure details, suspended fish location, and precise depth mapping. The result is faster fishing productivity, safer navigation in variable conditions, and confident decision-making on the water.

Key Features

• 12-inch high-resolution IPS display with edge-to-edge glass design for superior viewing angles and sunlight readability

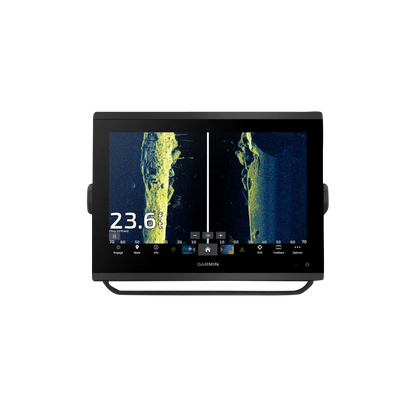

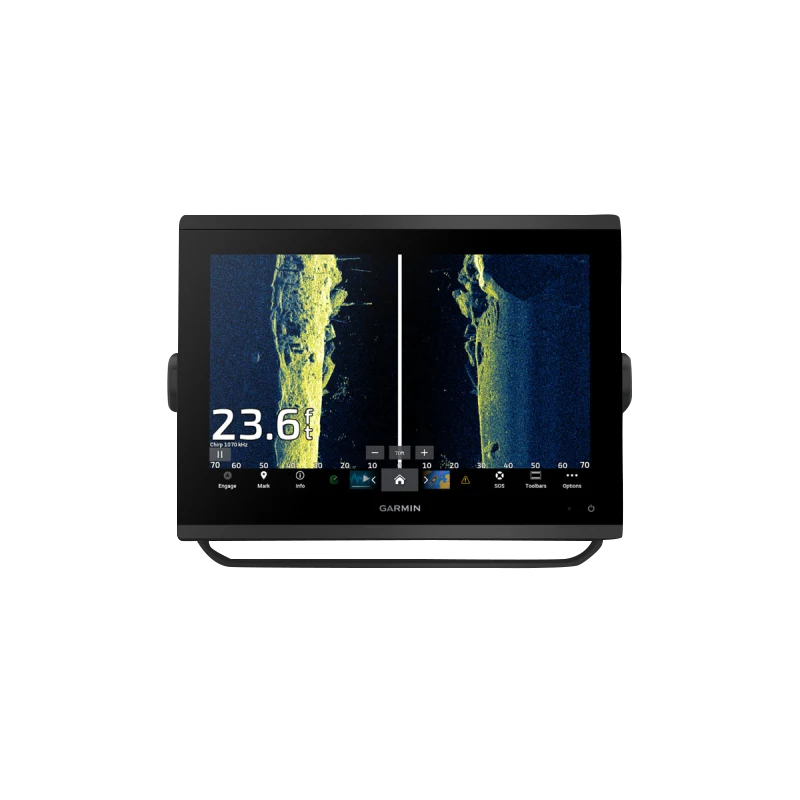

• SideVü and ClearVü sonar technology delivering up to 80% greater underwater structure clarity compared to conventional sonar methods

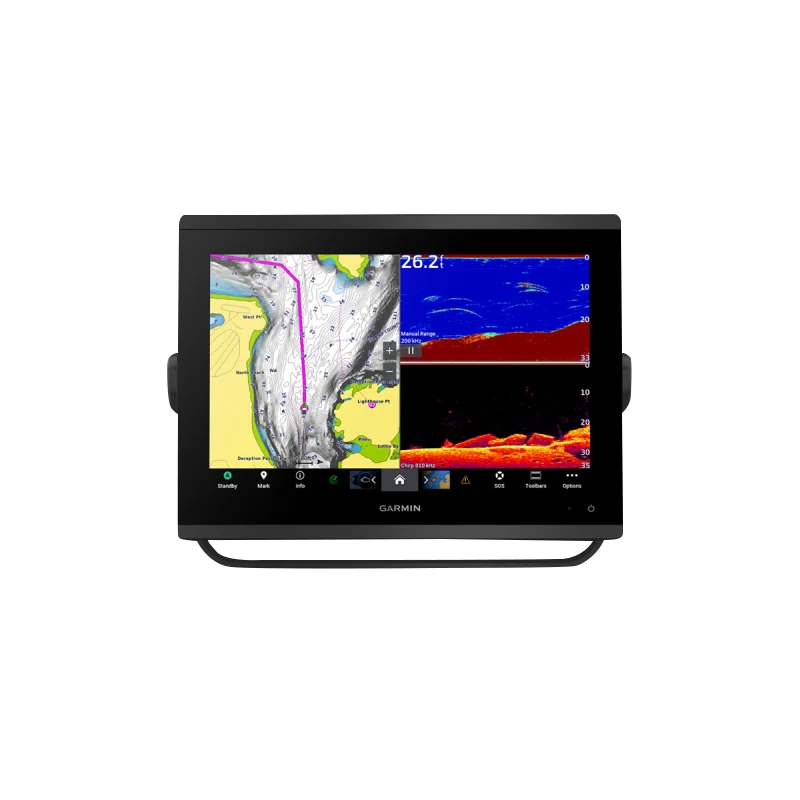

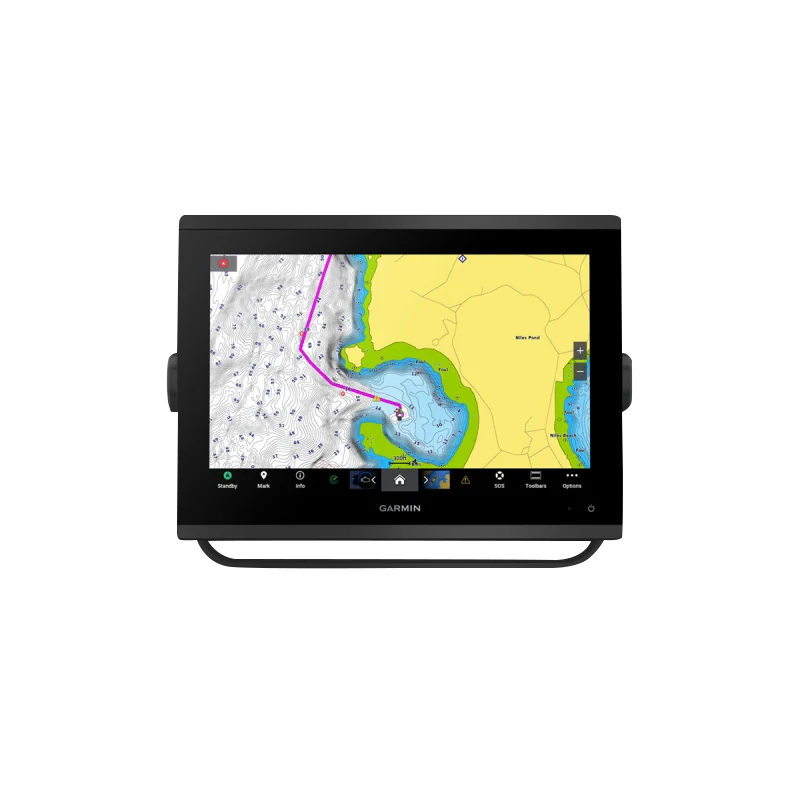

• Preloaded Garmin Navionics+ maps with Auto Guidance+ for coastal and inland route optimization
• Live Sonar compatibility with Panoptix or LiveScope systems for real-time fish and structure imaging on demand
• IPX7 waterproof rating for reliable operation in heavy rain, spray, and harsh marine conditions
• Dual network connectivity: NMEA 2000 and NMEA 0183 for integration with most marine electronics and sensors
• Power-Pole anchor control integration for one-handed deployment and positioning directly from the chartplotter
• ANT+ wireless pairing capability for syncing with Garmin marine watches and compatible accessories

Data Insights

Performance data demonstrates that anglers using the GPSMAP 1243xsv's SideVü technology experience significantly improved target acquisition compared to single-beam sonar. The combination of side-scanning and forward-looking ClearVü imaging allows operators to identify underwater structures—submerged trees, rock formations, and vegetation edges—with substantially higher confidence. The wide sonar cone angles on both SideVü and ClearVü create expanded coverage zones, enabling detection of game fish suspended around structure without sacrificing vertical detail directly below the boat.

Usage Instructions

For optimal performance, activate all compatible sonar modules through the main menu and configure your preferred sonar split-screen layout. Connect to the Garmin Marine Network using Ethernet or wireless to enable live sonar and real-time data updates. Use the ActiveCaptain app to download the latest Navionics+ map updates and user-contributed anchorage data before each outing. Calibrate the transducer location in the system settings to ensure accurate waypoint and route positioning.

Design & Material

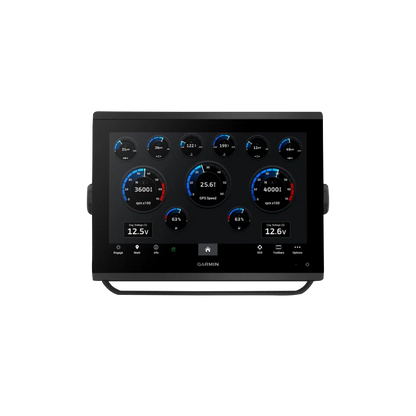

The GPSMAP 1243xsv features a modern, compact profile designed to fit standard 12-inch dash-mount systems without requiring extensive console modifications. The glass-front bezel and dark casing blend seamlessly into contemporary helm layouts while maintaining a professional appearance. The intuitive icon-based interface and customizable data pages reduce the learning curve for new users without sacrificing depth of functionality for experienced marine electronics operators.

• Aluminum and stainless steel construction engineered for corrosion resistance in saltwater and freshwater environments
• High-resolution IPS panel displays with anti-glare coating for consistent readability in all lighting conditions

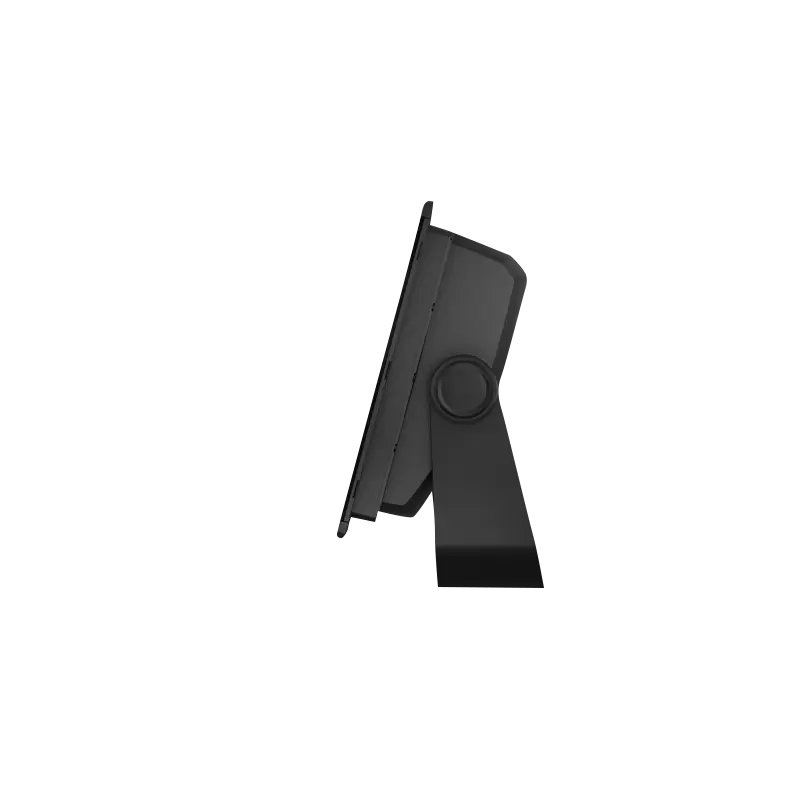

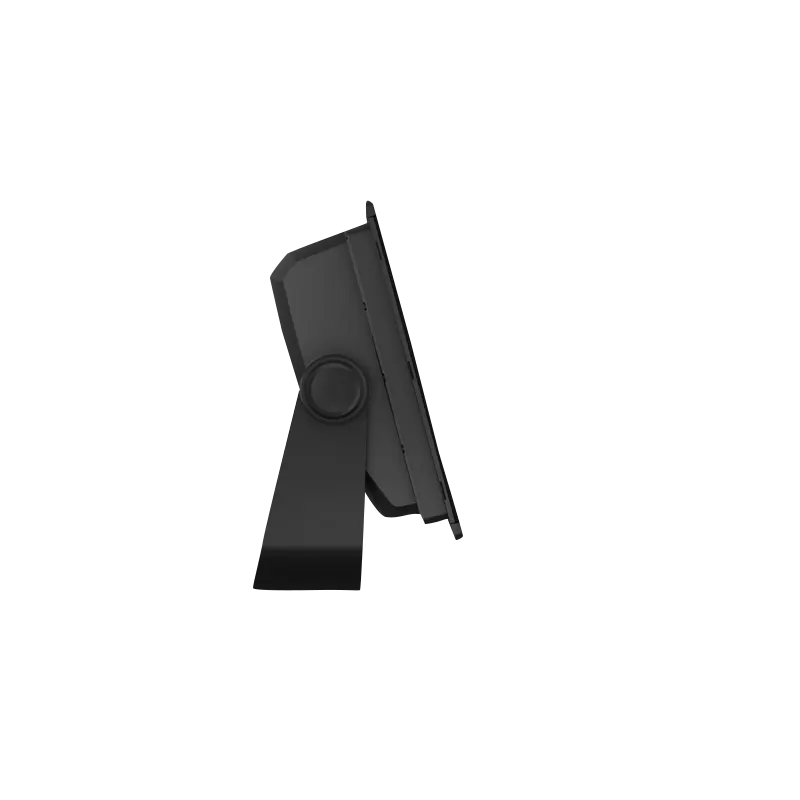

• Compact slimline housing fits standard dashboard cutouts with minimal additional installation requirements
• Integrated ANT+ antenna for wireless sensor communication without external wiring clutter

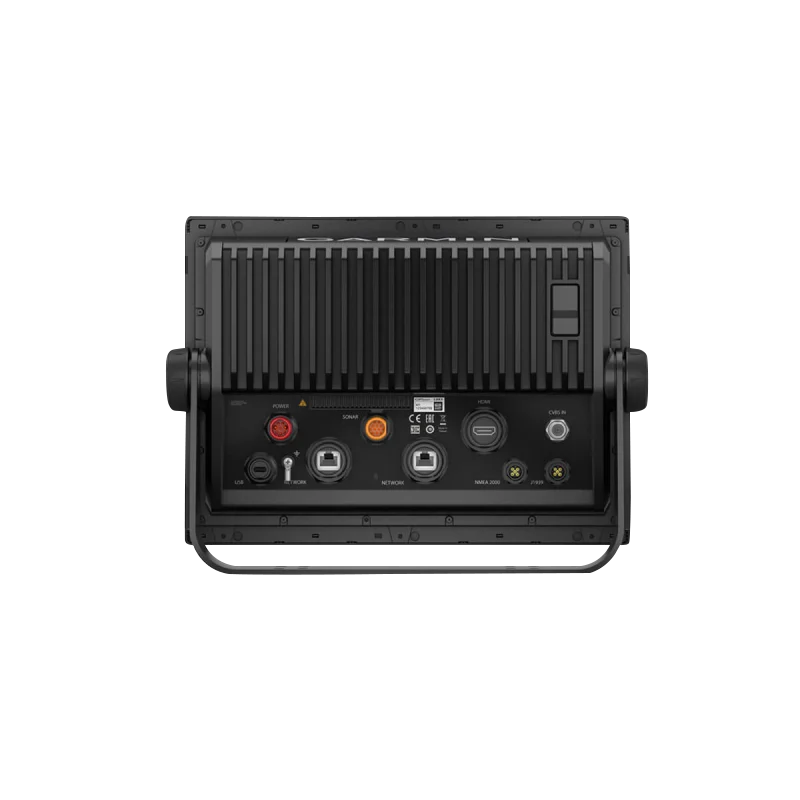

• NMEA 2000 backbone and NMEA 0183 serial connectors for flexible integration with legacy and modern marine systems
• Sealed button array and touchscreen interface protected by rubberized gaskets against water ingress and salt spray

Final Verdict

The Garmin GPSMAP 1243xsv is the complete sonar and navigation solution for boaters who demand accuracy, reliability, and ease of use in one package. With three independent sonar types, preloaded premium mapping, and seamless connectivity to your marine network, this chartplotter delivers the performance and versatility required for serious fishing and confident cruising. Upgrade your boat's electronics now and experience the clarity and control the GPSMAP 1243xsv provides—order yours today.
