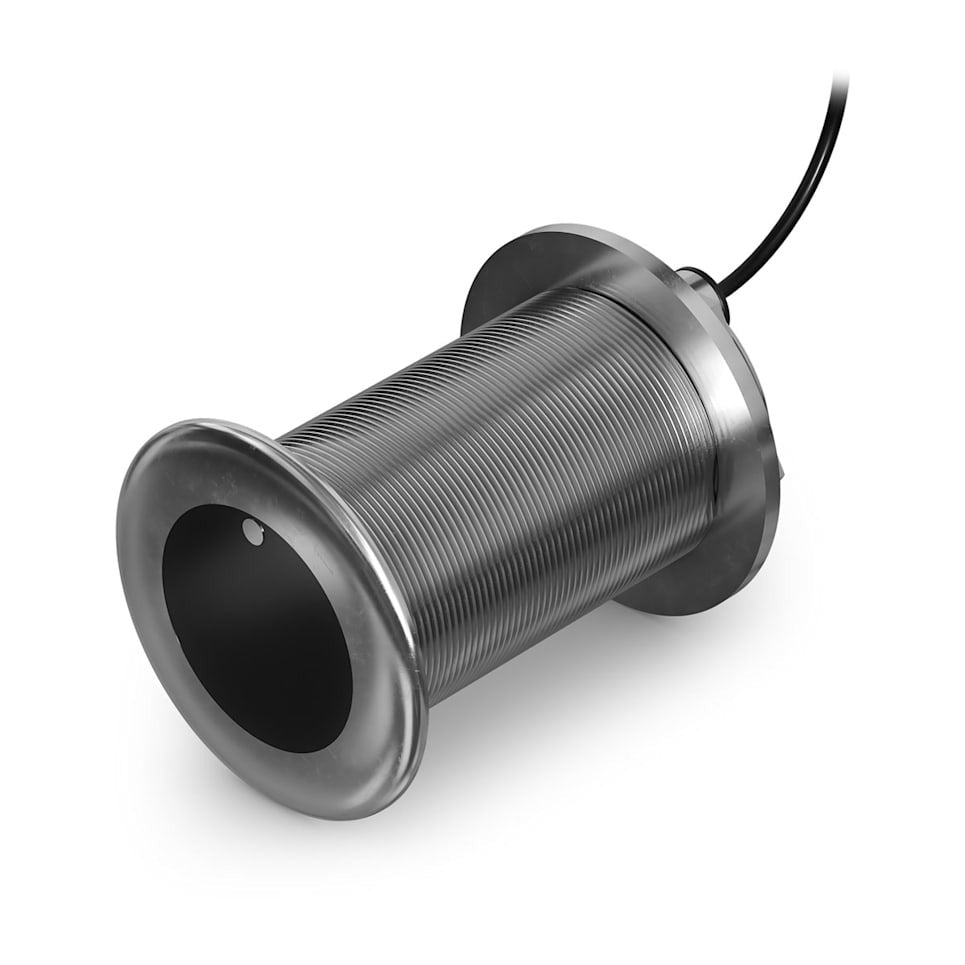

Garmin GT15M-THF 20° Stainless Steel Thru-Hull CHIRP Transducer (010-02868-02)

Introduction

The Garmin GT15M-THF 20° thru-hull CHIRP transducer delivers dependable midband sonar performance for vessels with steep hull deadrise angles between 16° and 24°. Built for anglers and boaters who demand reliable underwater imaging without fairing blocks or excessive hull drag, this stainless steel transducer features an internally tilted 20° element that maintains proper beam alignment while sitting flush against your hull. Operating at 600 watts across a 85–165 kHz CHIRP frequency band, it generates crisp fish arches, accurate bottom contours, and detailed structure imaging in both freshwater and saltwater environments.

Key Features

• 600-watt midband CHIRP sonar output with 85–165 kHz frequency range
• Maximum depth capability of 1,900 feet in freshwater and 1,200 feet in saltwater
• 20° internally tilted design eliminates need for fairing blocks on hulls with 16°–24° deadrise
• Durable stainless steel thru-hull housing with flush-mounted profile to reduce drag
• Integrated fast-response water temperature sensor for real-time fishing condition monitoring
• Garmin Auto-ID technology for automatic transducer recognition and plug-and-play configuration on compatible chartplotters

Data Insights

The GT15M-THF's 600-watt CHIRP transmission across its midband frequency range produces exceptional target separation and high-resolution returns, allowing anglers to distinguish individual fish from bait schools and clearly identify bottom composition and underwater structure. Its ability to reach 1,900 feet in freshwater provides reliable sonar coverage across most recreational and offshore fishing scenarios, while the 1,200-foot saltwater capability addresses deep-water coastal applications. The 20° internal tilt angle is specifically engineered to work with steep-deadrise hull designs, a critical specification that prevents signal distortion common in other transducers when improperly angled relative to the boat's keel.

Usage Instructions

Install the GT15M-THF using the included mounting hardware and installation guide, ensuring your hull deadrise falls between 16° and 24° for optimal sonar beam alignment. Connect the 8-pin transducer connector to a compatible Garmin chartplotter or sonar system. The Garmin Auto-ID technology automatically detects the transducer upon connection and applies the correct sonar configuration settings without manual adjustments, enabling immediate operational use. Verify water temperature sensor functionality by displaying live water temperature on your Garmin display to confirm proper installation.

Design & Material

The GT15M-THF features a robust stainless steel thru-hull construction engineered to withstand prolonged saltwater exposure, UV degradation, and mechanical impacts while maintaining corrosion resistance across multiple seasons. Its flush-mounted profile minimizes hydrodynamic drag and turbulence, while the internally tilted piezoelectric element delivers a consistently vertical sonar beam without external fairing blocks or epoxy fill compounds.

• Stainless steel thru-hull housing with corrosion-resistant finish
• Flush-mounted design that integrates seamlessly with hull contours
• 8-pin connector compatible with Garmin NMEA 0183 and proprietary sonar networks
• Internally tilted 20° piezoelectric element for beam optimization
• Integrated thermistor water temperature sensor with fast response time
• Suitable for fiberglass, composite, steel, aluminum, and wooden hulls

Final Verdict

The Garmin GT15M-THF 20° Stainless Steel Thru-Hull CHIRP Transducer is the ideal sonar solution for boaters with steep-deadrise hull designs who need reliable, high-definition underwater imaging without installation complexity. Its 1,900-foot freshwater and 1,200-foot saltwater depth capabilities, combined with exceptional 600-watt CHIRP clarity and automatic Garmin compatibility, make it a must-have for serious anglers and cruising enthusiasts. Order the GT15M-THF today to unlock precision sonar performance and transform how you read underwater structures and locate fish.
