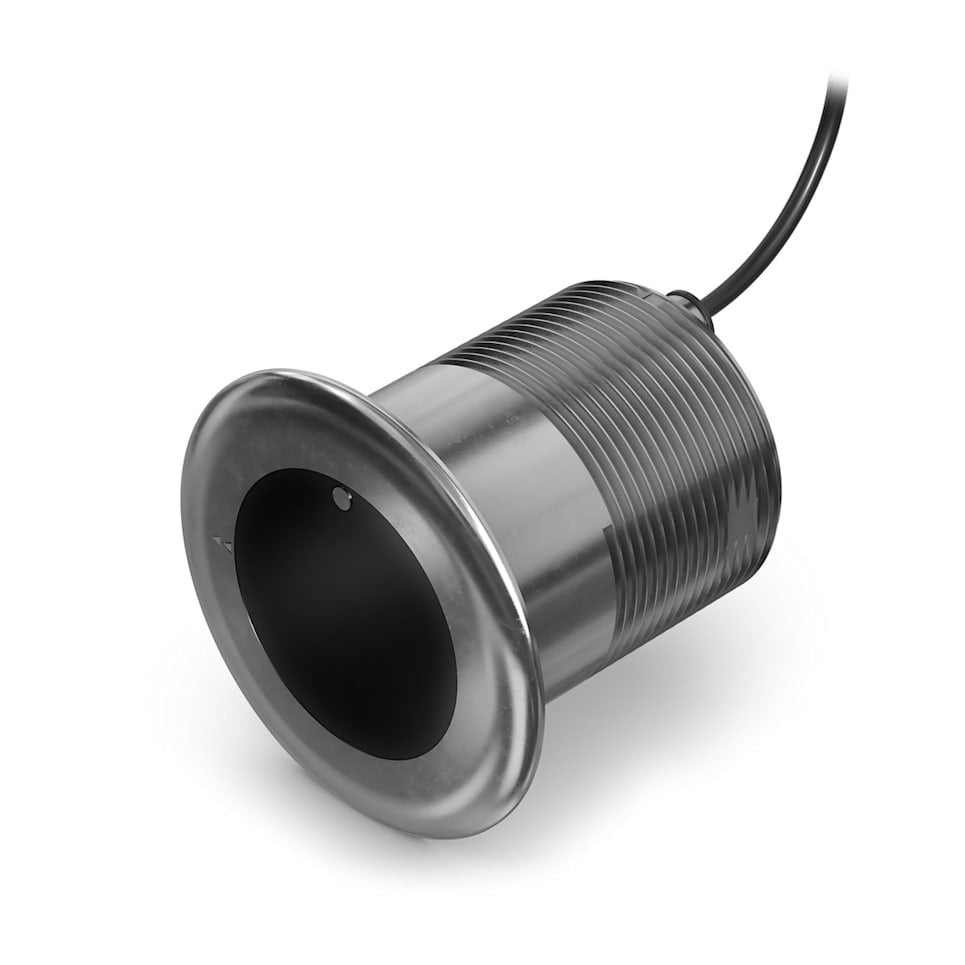

Garmin GT17M-THF 0 Degrees Transducer (010-02930-00)

Introduction

The Garmin GT17M-THF 0 Degrees Transducer is engineered for anglers and boat owners seeking powerful traditional CHIRP sonar with a streamlined, low-drag installation. Designed for both fishing and cruising vessels, this premium 1 kW stainless steel thru-hull transducer provides exceptional sonar clarity while maintaining excellent hydrodynamic performance.

Operating across a broad midband CHIRP frequency range of 80–165 kHz, the GT17M-THF produces highly detailed fish arches, sharp structure definition, and reliable bottom tracking. Its flush-mounted 0-degree design minimizes drag while eliminating the need for a fairing block on compatible hulls. Combined with fast-response water temperature sensing and Garmin Auto-ID technology, the transducer offers simple plug-and-play installation and dependable performance across a wide variety of fishing conditions.

Key Features

High-Power CHIRP Sonar

• Delivers up to 1 kW of sonar power.
• Midband CHIRP frequency range of 80–165 kHz.
• Produces highly detailed fish arches.
• Excellent target separation and bottom definition.

Exceptional Depth Performance

• Depth capability up to 2,400 feet in freshwater.
• Depth capability up to 1,800 feet in saltwater.
• Reliable bottom tracking.
• Accurate underwater imaging across varying depths.

Broad Sonar Coverage

• Beamwidth of 9°–18°.
• Wide sonar coverage for efficient searching.
• Optimized for multiple fishing environments.
• Delivers clear and consistent sonar returns.

Flush Thru-Hull Installation

• Durable stainless steel housing.
• Flush-mounted 0-degree installation.
• Reduces drag for improved vessel performance.
• Eliminates the need for a fairing block on compatible hulls.

Smart Garmin Integration

• Garmin Auto-ID technology.
• Plug-and-play installation.
• Fast-response water temperature sensor.
• Automatically configures with compatible Garmin sonar systems.

Wide Hull Compatibility

• Suitable for fibreglass hulls.
• Compatible with composite hulls.
• Supports steel and aluminium hulls.
• Suitable for wooden hulls.

Performance Insights

The Garmin GT17M-THF 0 Degrees Transducer combines powerful 1 kW output with broad midband CHIRP technology to deliver outstanding underwater detail and exceptional target separation. The wide frequency range allows anglers to adapt sonar performance to different water conditions while maintaining clear fish arches and accurate bottom tracking.

Its stainless steel flush-mounted housing minimizes drag without compromising sonar performance, while Garmin Auto-ID technology simplifies installation by automatically recognizing and configuring the transducer with compatible Garmin chartplotters and fishfinders.

Usage Instructions

Install the Garmin GT17M-THF 0 Degrees Transducer according to the supplied installation instructions, ensuring proper flush mounting and alignment for optimal sonar performance. Connect the 8-pin transducer to a compatible Garmin chartplotter or fishfinder, where Auto-ID technology automatically detects and configures the transducer.

Select the appropriate sonar settings for your fishing conditions and regularly inspect the transducer to ensure accurate temperature readings and consistent sonar performance.

Design & Build

The Garmin GT17M-THF is constructed with a rugged stainless steel housing that provides long-term durability in demanding marine environments. Its flush-mounted thru-hull design reduces drag while delivering optimum sonar beam orientation for highly accurate underwater imaging across freshwater and saltwater applications.

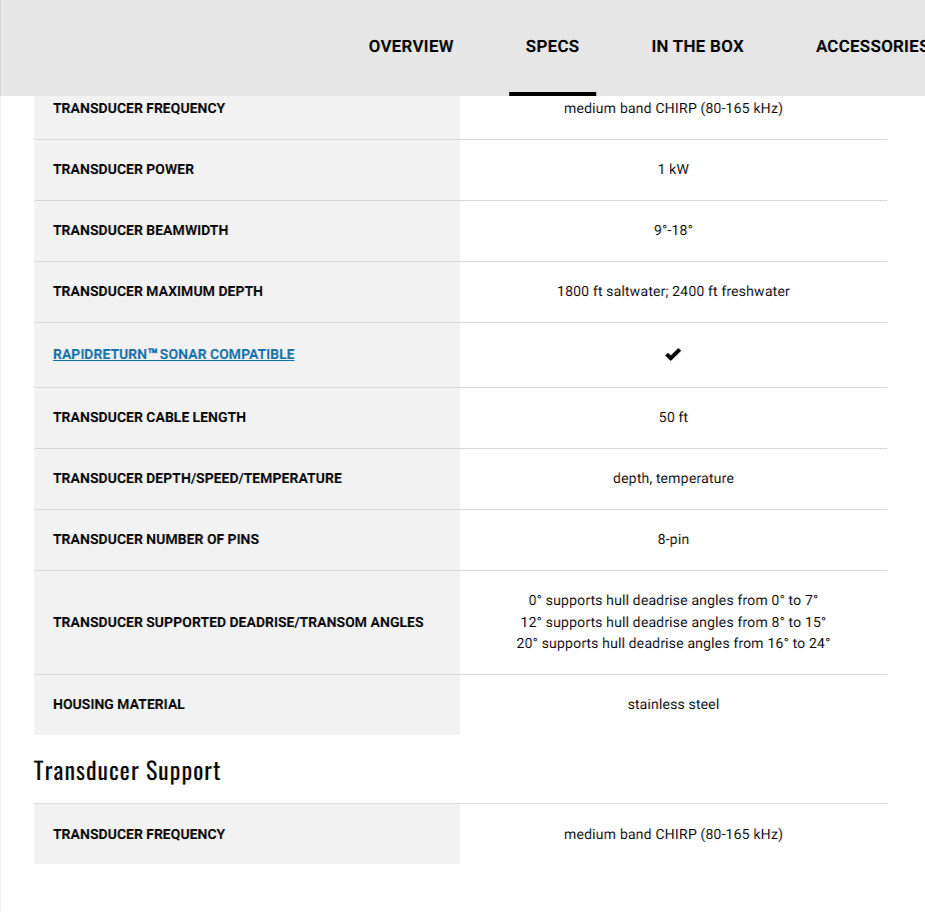

Design Highlights

• Flush-mounted stainless steel housing
• 0-degree thru-hull installation
• 1 kW sonar power
• Midband CHIRP technology
• Operating frequency of 80–165 kHz
• Beamwidth of 9°–18°
• Depth capability up to 2,400 feet in freshwater
• Depth capability up to 1,800 feet in saltwater
• Fast-response water temperature sensor
• Garmin Auto-ID technology
• 8-pin connector
• Suitable for fibreglass, composite, steel, aluminium, and wooden hulls
• Low-drag flush installation
• Rugged marine construction

Final Verdict

The Garmin GT17M-THF 0 Degrees Transducer is an outstanding choice for anglers seeking premium midband CHIRP sonar performance with a clean, low-profile installation. Its powerful 1 kW output, broad 80–165 kHz frequency range, fast-response temperature sensing, and Garmin Auto-ID technology deliver exceptional fish detection, accurate depth readings, and dependable performance in both freshwater and saltwater.

Whether you're upgrading your compatible Garmin sonar system or equipping a new fishing vessel, the Garmin GT17M-THF 0 Degrees Transducer provides the clarity, reliability, and performance needed to maximize every trip on the water.
