Garmin GT30-THP Thru-Hull Transducer Pair: Dual-Frequency CHIRP Scanning Sonar for Shallow and Coastal Waters

Introduction

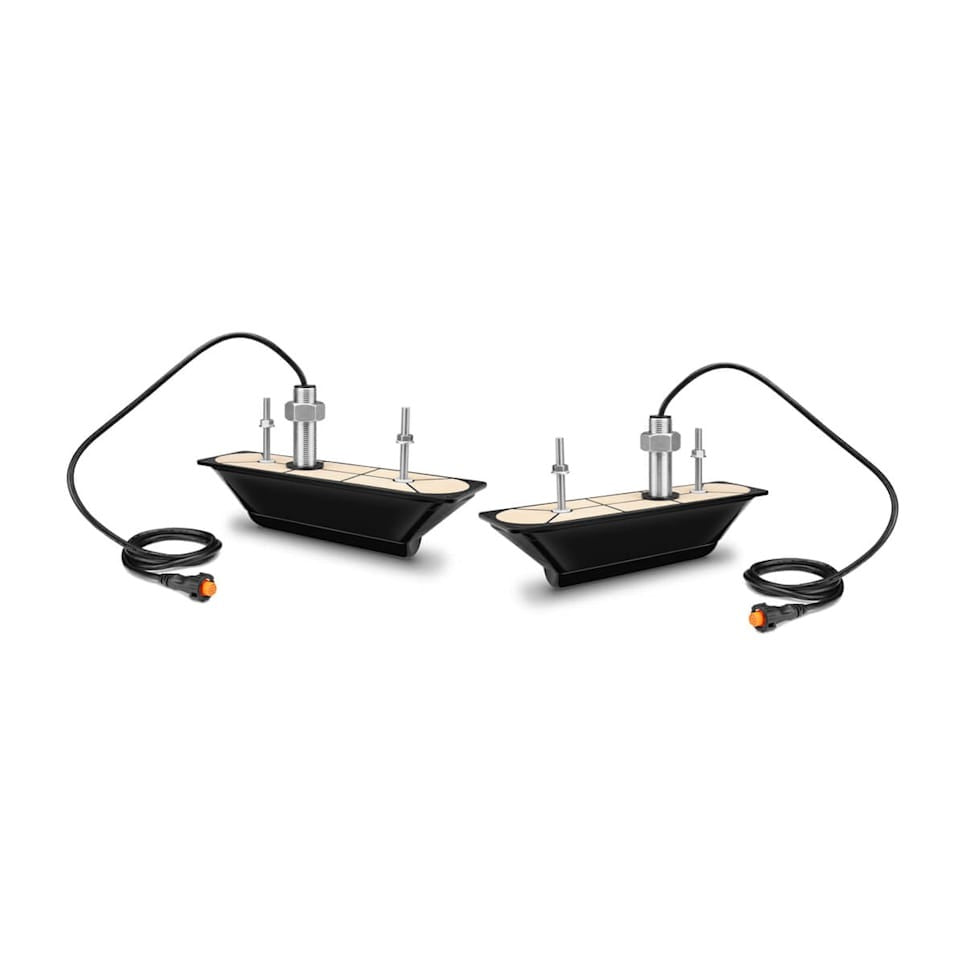

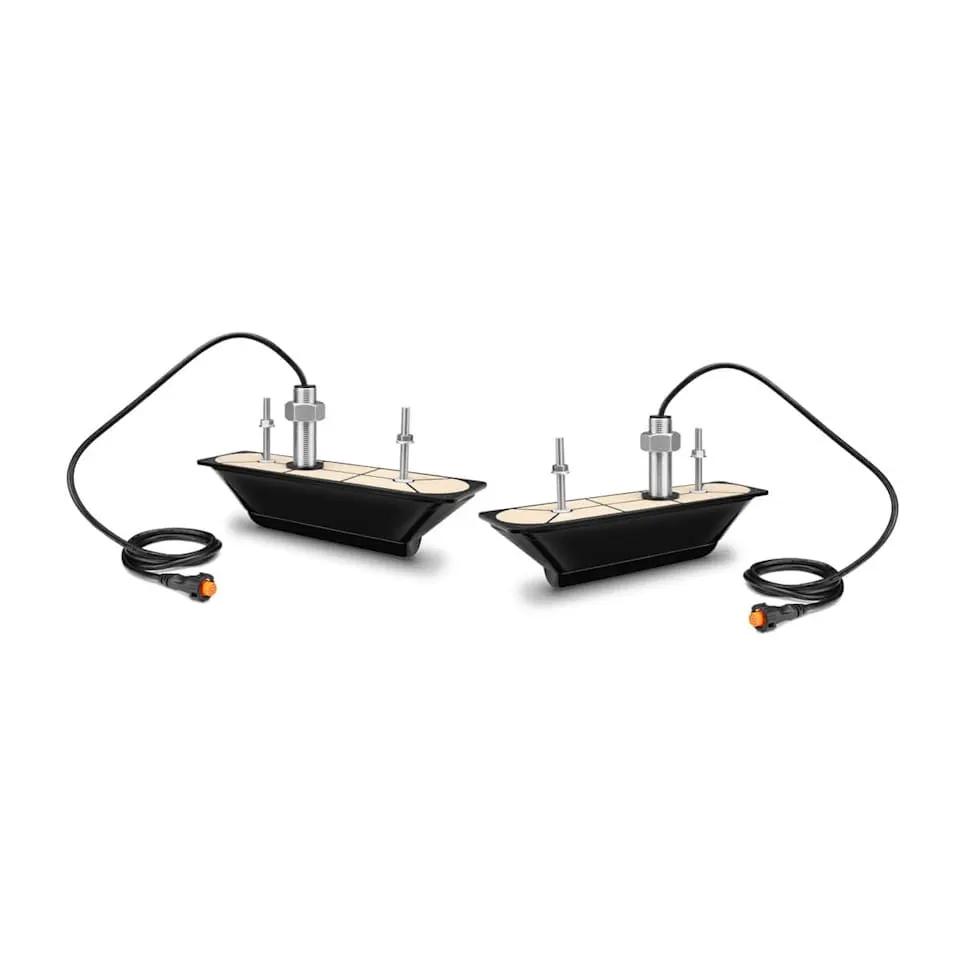

The Garmin GT30-THP Thru-Hull Transducer Pair delivers premium CHIRP scanning sonar performance by combining forward-facing and side-scanning imaging into a single integrated solution. Engineered for permanent thru-hull installation, this port and starboard transducer pair uses dual CHIRP frequencies to produce crystal-clear underwater images of fish, structures, vegetation, and bottom composition in shallow and coastal water environments. Built with stainless steel stems and rated for hull deadrises between 5° and 25°, the GT30-THP fits a wide range of boat designs while maintaining exceptional durability in saltwater and freshwater conditions.

Key Features

• CHIRP ClearVü Sonar: Produces highly detailed images directly beneath the boat with depth capability extending to 750 feet, delivering outstanding target definition for fish and submerged objects
• CHIRP SideVü Sonar: Scans both port and starboard sides simultaneously with a range of 500 feet on each side, expanding total underwater coverage without multiple passes

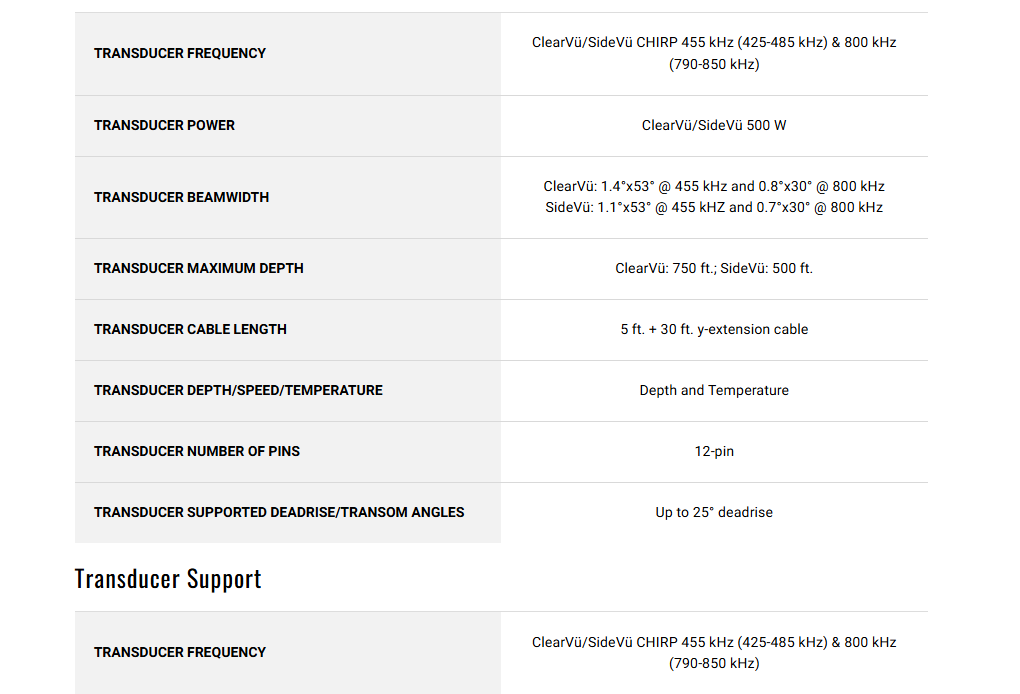

• Dual-Frequency CHIRP Technology: Operates at 455 kHz and 800 kHz frequencies for adaptive image clarity across varying water depths and conditions
• High-Performance Power Output: Delivers 500 W per sonar element with 1,500 W total combined power for superior acoustic penetration and resolution
• Integrated Temperature Sensing: Fast-response built-in sensors provide real-time water temperature readings to help identify optimal fishing conditions and seasonal patterns
• Marine-Grade Construction: Stainless steel thru-hull stems engineered for demanding saltwater and freshwater environments with long-term reliability
• Optimized Hull Compatibility: Compatible with hull deadrises from 5° to 25°, accommodating center consoles, recreational cruisers, and offshore sportfishing vessels

Data Insights

The GT30-THP's combined CHIRP imaging approach significantly reduces search time on the water. By delivering both downward-looking ClearVü coverage to 750 feet and side-scanning SideVü range of 500 feet per side, anglers can cover substantially larger water volumes with fewer boat movements. The 1,500 W total power output ensures consistent sonar performance even in challenging conditions like thermoclines, heavy vegetation, or rocky structures where target separation becomes critical. When paired with the compatible Garmin GCV 10 scanning sonar module, users gain access to real-time fish location data, structure mapping, and temperature overlays that inform strategic fishing decisions throughout the day.

Usage Instructions

Mount the GT30-THP transducers using the supplied fairing blocks and isolation bushings, positioning them to align with your hull's deadrise angle. Connect both transducers via the included Y-cable to your compatible Garmin GCV 10 scanning sonar module, then configure sonar frequency, gain, and display settings through your chartplotter interface. Activate CHIRP ClearVü to monitor fish activity and bottom structure directly beneath the boat, and toggle CHIRP SideVü to expand coverage to both sides during cruising or area searches. Perform periodic cleaning and visual inspections of the transducer domes to maintain sonar signal clarity and acoustic performance throughout the season.

Design & Material

The GT30-THP employs a professional-grade thru-hull design that combines durability with minimal hull disruption. The paired transducer configuration maintains balanced sonar coverage across your entire vessel while the stainless steel construction resists corrosion in both freshwater lakes and open saltwater environments. Each unit integrates multiple sonar elements and acoustic channels within a streamlined housing optimized for low hydrodynamic drag.

• Stainless Steel Thru-Hull Stems: Marine-grade construction resists corrosion and galvanic degradation in saltwater and brackish conditions
• Dual CHIRP Transducer Array: Port and starboard configuration enables simultaneous scanning on both sides of the vessel for comprehensive underwater awareness
• Rugged Fairing Blocks: Supplied fairing blocks improve hydrodynamic efficiency and protect transducers from direct water impact while maintaining acoustic signal clarity
• Isolation Bushings: Vibration-damping bushings included to reduce noise coupling from the hull and engine, improving sonar signal-to-noise ratio
• Integrated Temperature Sensors: Fast-response thermal elements monitor water temperature variations to help predict fish location patterns and seasonal behavior

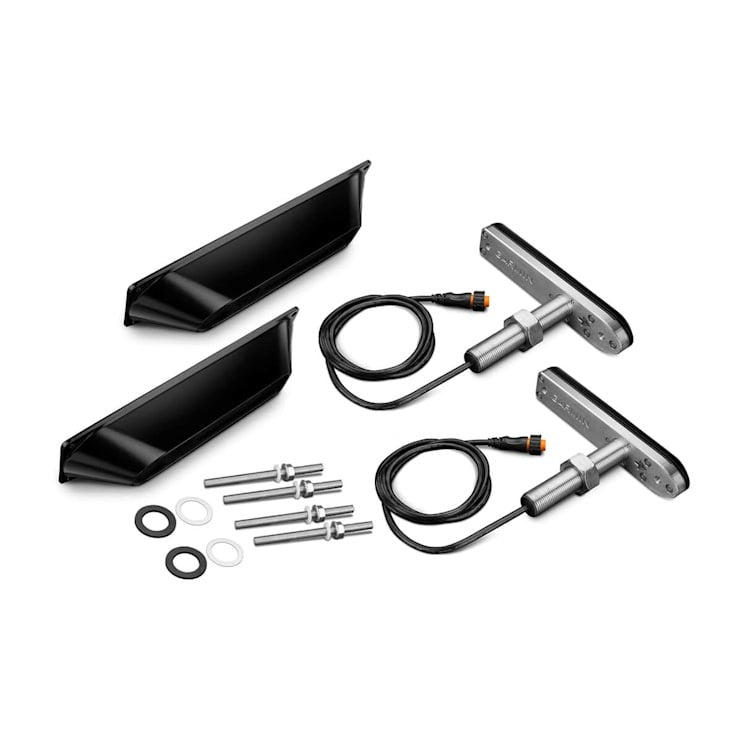

• Complete Installation Hardware: Mounting fasteners, Y-cable connector, and detailed installation guide simplify permanent integration into existing hull structures

Final Verdict

The Garmin GT30-THP Thru-Hull Transducer Pair stands as a premium choice for anglers and boaters who demand serious CHIRP scanning sonar performance in shallow and coastal waters. With 750-foot depth capability, 500-foot side-scanning range, 1,500 W total power, and integrated temperature sensing, this transducer pair delivers the underwater clarity and coverage needed to locate fish faster and fish smarter. The stainless steel construction and compatibility with Garmin GCV 10 sonar modules ensure years of reliable service across diverse fishing environments. If you're ready to transform underwater visibility and gain a measurable edge in fish finding, the GT30-THP delivers professional-grade sonar performance that pays dividends on every outing.
