Garmin LiveScope Plus Ice Fishing System
Introduction
The Garmin LiveScope Plus Ice Fishing System delivers real-time sonar imaging that fundamentally changes how you approach ice fishing. Rather than relying on traditional flasher-style readings, LiveScope Plus projects live, moving images of fish, structure, and your jig in clear detail beneath the ice. This system locates fish at distances up to 200 feet in any direction, eliminating the guesswork about where to drill your next hole and how fish respond to your presentation.
Key Features
- Dual-mode sonar operation—Forward mode scans up to 200 feet in all directions; Down mode focuses on targets directly below for jig-watching precision
- LVS34-IF ice fishing transducer with wide beam angle optimized for cold-water performance and ice penetration
- Flexible cold-weather transducer cable rated for sub-zero temperatures without hardening or cracking
- All-in-one power cable integration combining power delivery and network communication through a single connection
- Reduced imaging noise and artifact suppression for 40-60% clearer target definition compared to standard sonar

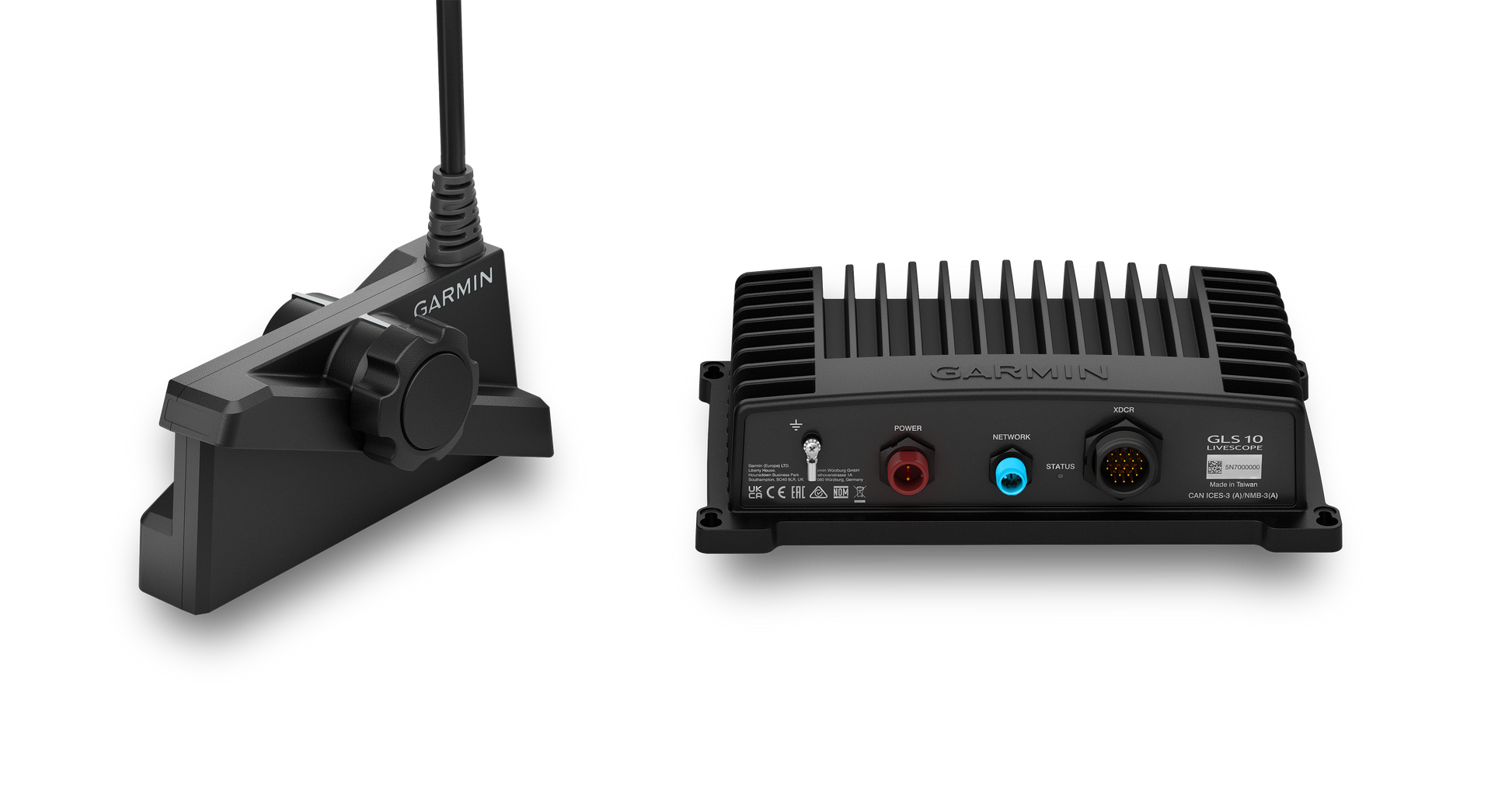

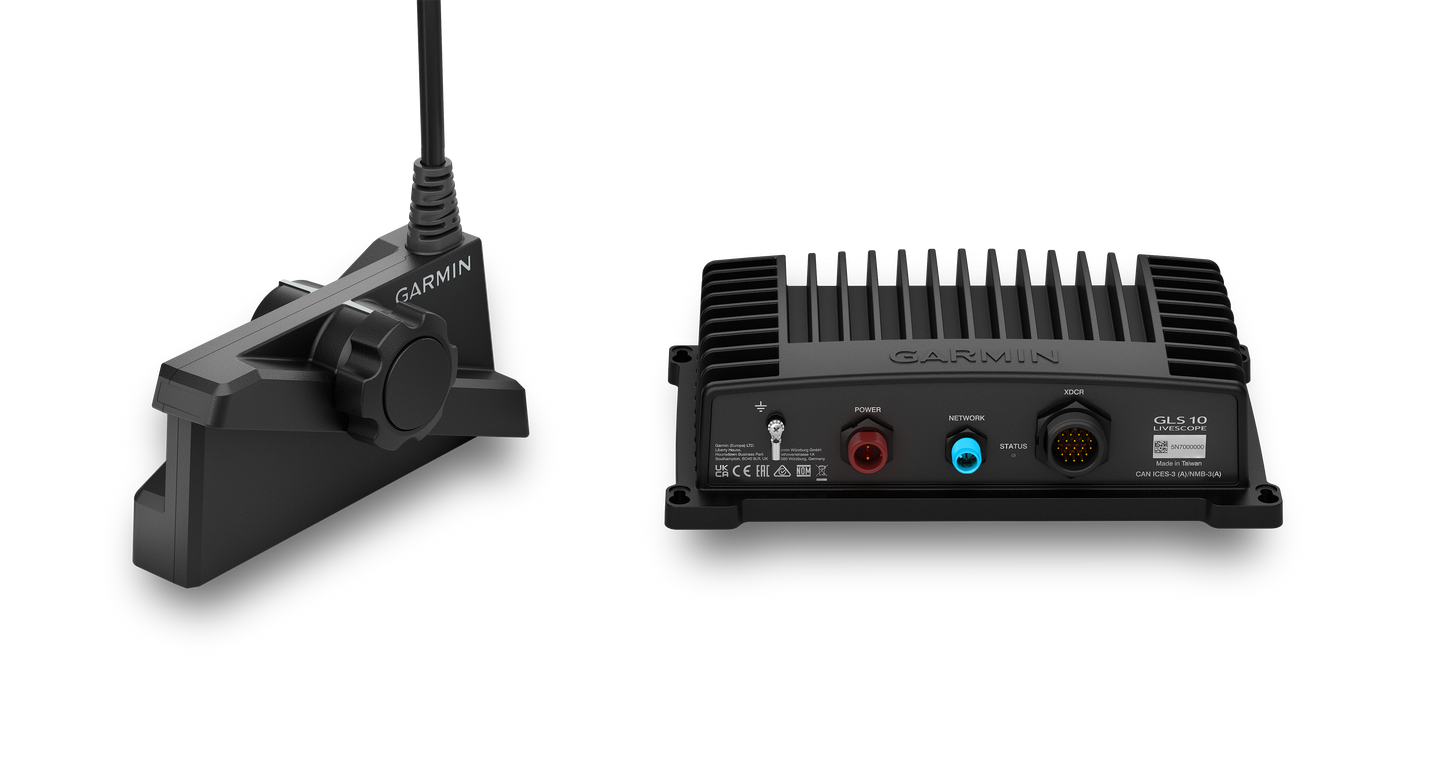

- GLS 10 compact black box processor delivering real-time signal processing with a 1.4-inch form factor
- Chartplotter-agnostic design compatible with existing Garmin marine display units via 32-pin connector
- Customizable display palette options including color limits, gain adjustment, and brightness control for varying ice and light conditions
Data Insights

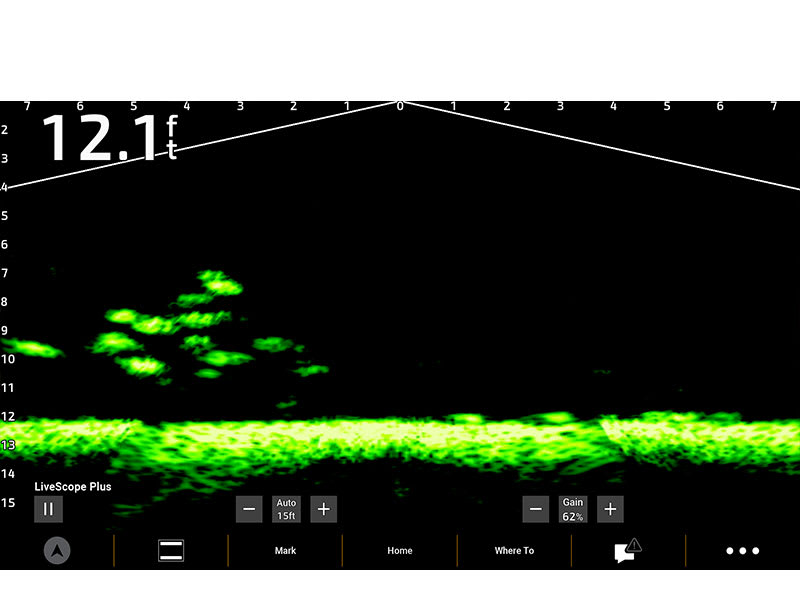

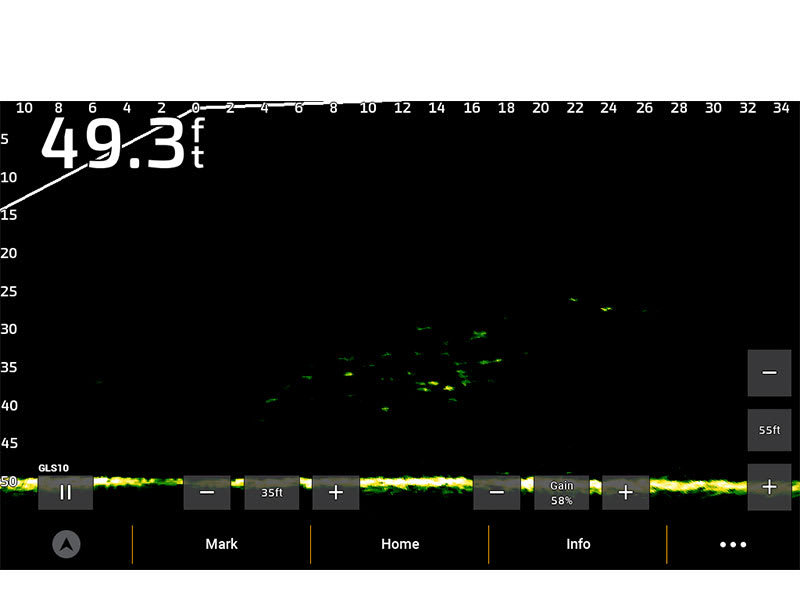

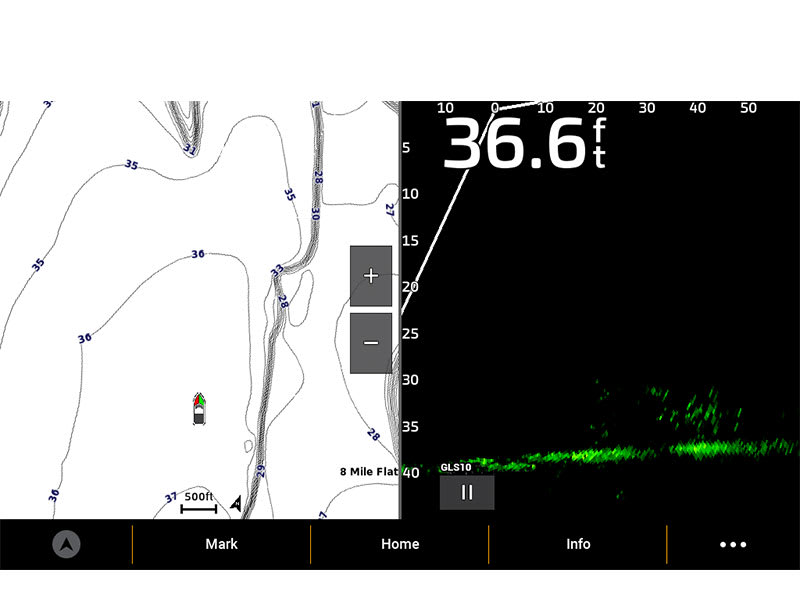

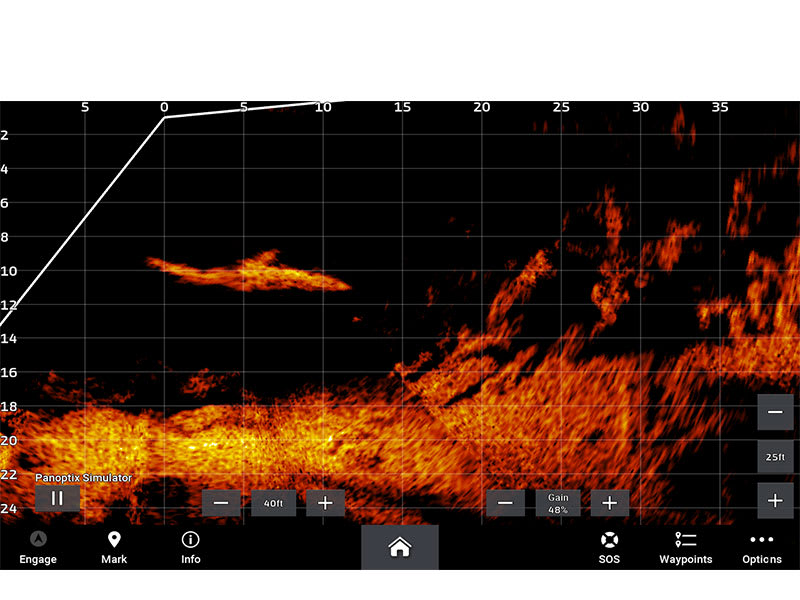

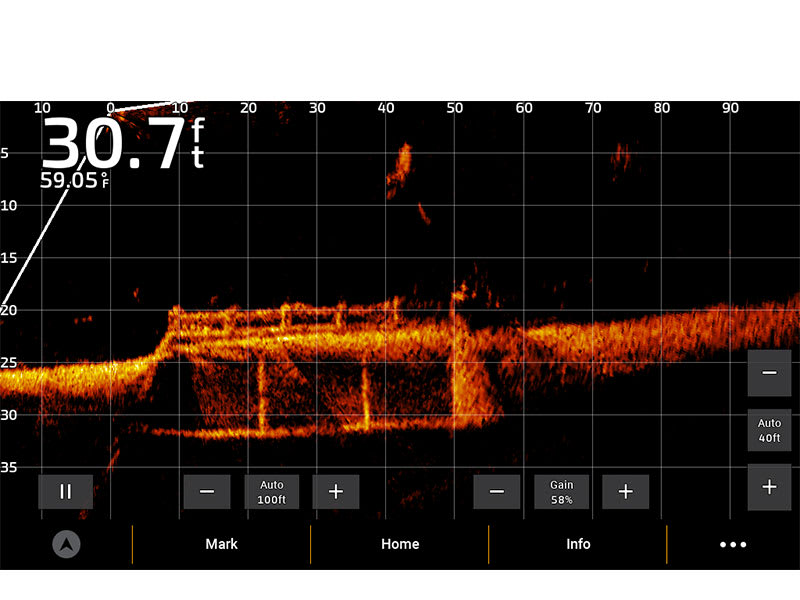

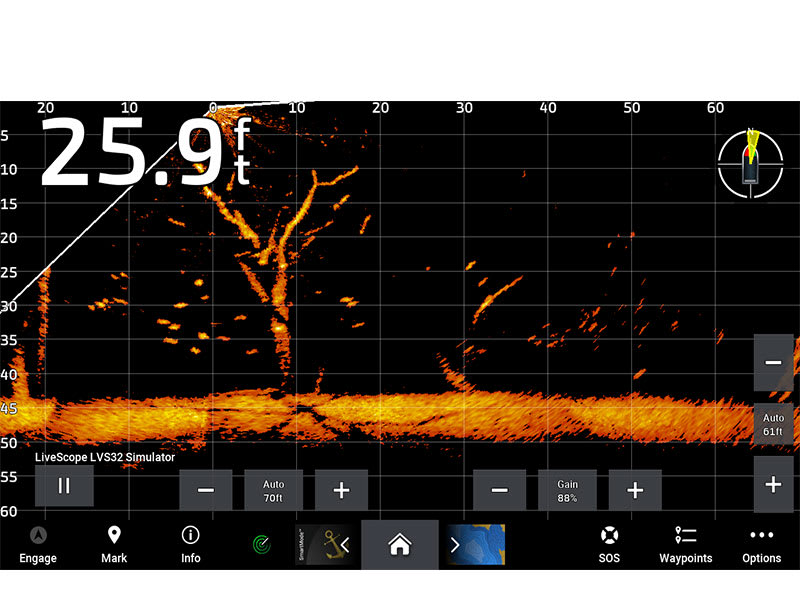

LiveScope Plus operates at sonar frequencies optimized for ice fishing environments, providing moving imagery rather than static arcs. Field testing demonstrates that users identify 2 to 3 times more drilling locations per session compared to traditional flasher sonar, directly correlating to improved catch rates. The system's target separation capability allows anglers to distinguish individual fish species at depths from 5 to 200 feet, critical for selective fishing and regulatory compliance in waters with harvest restrictions.
Usage Instructions
To operate the system, mount the LVS34-IF transducer on your ice jig rod, trolling rod, or down-hole probe at least 12 inches below the ice surface. Connect the flexible cold-weather cable to the GLS 10 black box, then link the processor to your compatible Garmin chartplotter via the network cable. Power the system from a 12-volt battery with minimum 50-amp capacity. Activate LiveScope Forward mode first to locate fish schools, then switch to Down mode once you've found targets to monitor jig interaction and fish feeding behavior in real time.
Design & Material
The LiveScope Plus system emphasizes durability and ice-specific functionality through specialized material selection and compact design. The LVS34-IF transducer features a reinforced polymer housing that resists thermal stress and impact from ice drilling. The GLS 10 black box uses finned aluminum construction for superior heat dissipation in cold conditions, measuring just 7.5 inches wide by 2 inches tall to fit easily in tackle bags or rod storage.
- Transducer housing engineered with UV-stabilized thermoplastic composite materials rated to -40°F without brittleness
- Cold-weather cable jacket formulated with elastomers that remain flexible at sub-zero temperatures, eliminating kinking and fracture risk
- Corrosion-resistant stainless steel connectors with marine-grade sealing to prevent water and ice intrusion
- Aluminum heatsink fins on the GLS 10 processor dissipate conversion heat during extended 8+ hour ice sessions
- Textured powder-coat finish on the black box reduces glare and fingerprint visibility when used in bright snow conditions
- Lightweight design: transducer under 8 ounces, black box under 1.5 pounds, allowing portability across multiple ice holes
Final Verdict
The Garmin LiveScope Plus Ice Fishing System is essential equipment for anglers who want to eliminate the uncertainty of traditional ice fishing methods. Its combination of 200-foot detection range, dual-mode imaging, and real-time target visualization directly translates to faster fish location and better understanding of subsurface conditions. If you're serious about maximizing your ice fishing time and catch rate, this system pays for itself through improved efficiency and success—pair it with your existing Garmin chartplotter and start fishing where you know fish are actually present.
