Garmin TD 50 Touchscreen Display (010-02139-10)

Introduction

The Garmin TD 50 Touchscreen Display is a versatile marine control interface that expands access to your boat's essential systems wherever additional control is needed. Whether installed at the helm, below deck, or in other onboard locations, the TD 50 allows you to monitor system data and control connected devices through a simple, responsive 5-inch touchscreen.

Designed to complement Garmin GPSMAP chartplotters, the TD 50 integrates seamlessly with compatible Garmin Marine Network, NMEA 2000, EmpirBus, and OneHelm systems. Its intuitive graphical interface provides quick access to lighting, climate control, entertainment, security systems, engine data, autopilot functions, and other onboard controls while maintaining a clean, modern appearance.

With flexible mounting options, plug-and-play installation, and a rugged IPX7-rated design, the TD 50 delivers dependable performance in demanding marine environments.

Key Features

5-Inch Touchscreen Display

• Bright 5-inch edge-to-edge glass touchscreen.
• Responsive touch controls.
• Crisp LCD display.
• Excellent daylight readability.

Complete Boat System Control

• Monitor onboard systems.
• Control electrical switching functions.
• Access connected marine equipment.
• Manage multiple vessel systems from one display.

Intuitive User Interface

• Easy-to-use graphical interface.
• Quick navigation between functions.
• Responsive touchscreen operation.
• Simplified onboard control.

Extensive System Integration

• Compatible with Garmin Marine Network.
• Supports NMEA 2000 networking.
• Works with EmpirBus systems.
• Compatible with OneHelm digital control systems.

Data Monitoring

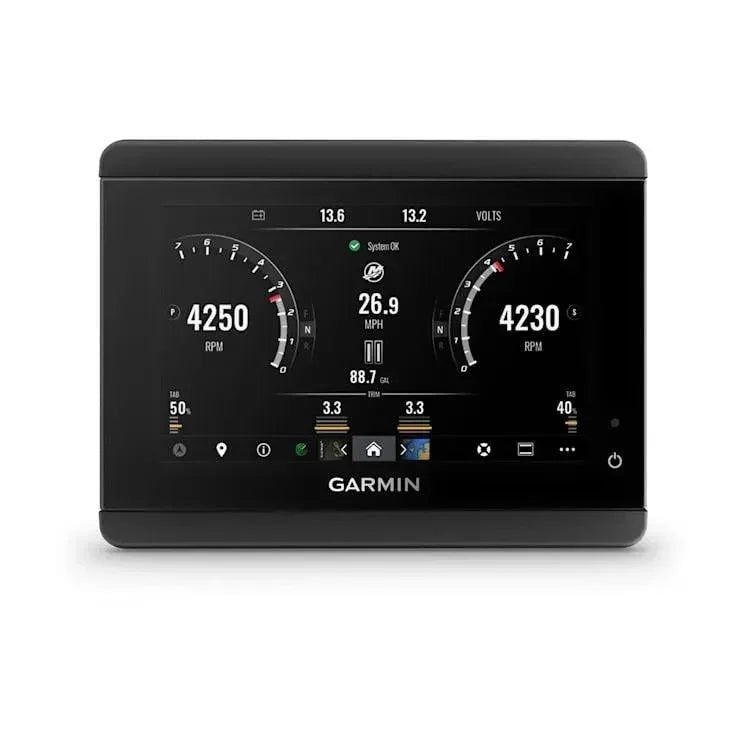

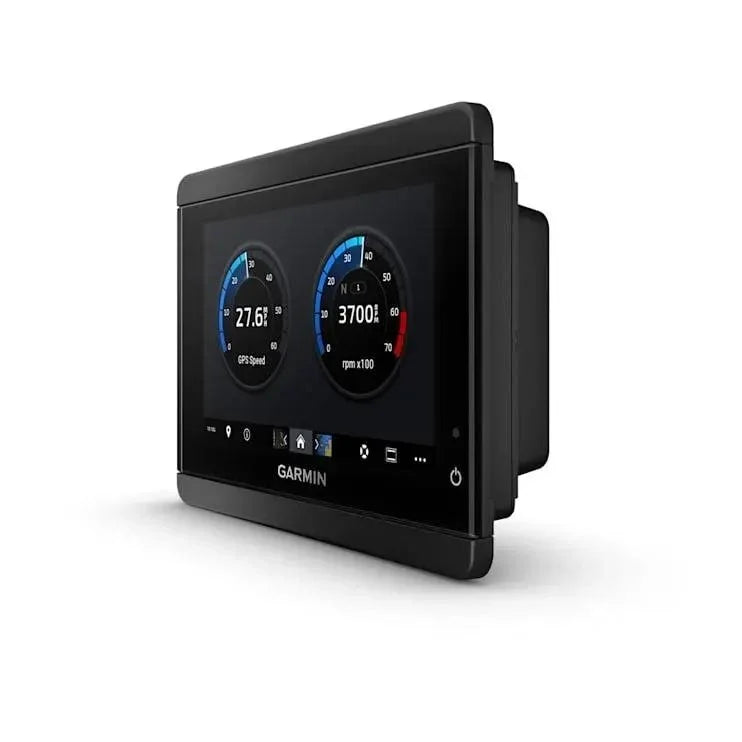

• View engine information.

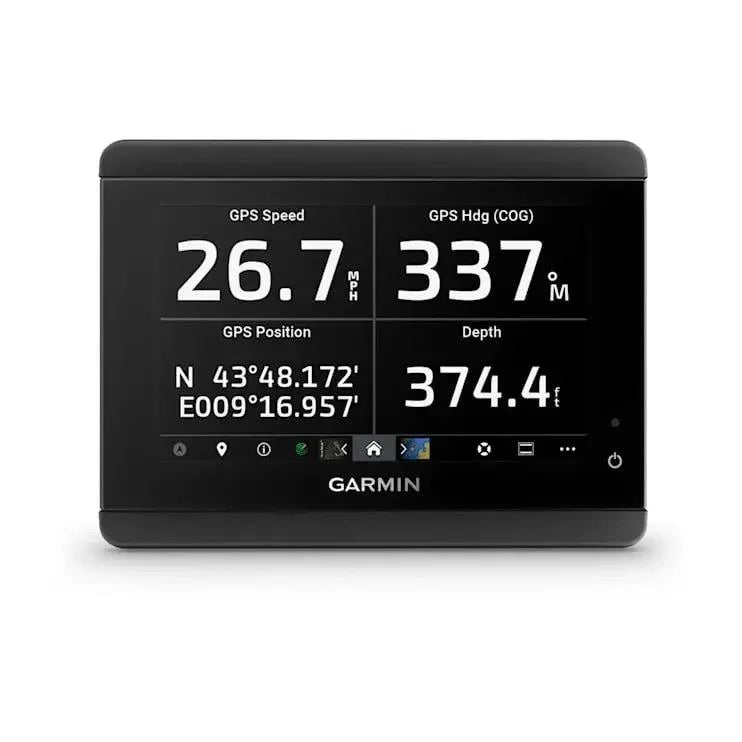

• Monitor vessel system status.
• Access onboard sensor data.
• Track important operating information.

Onboard Device Control

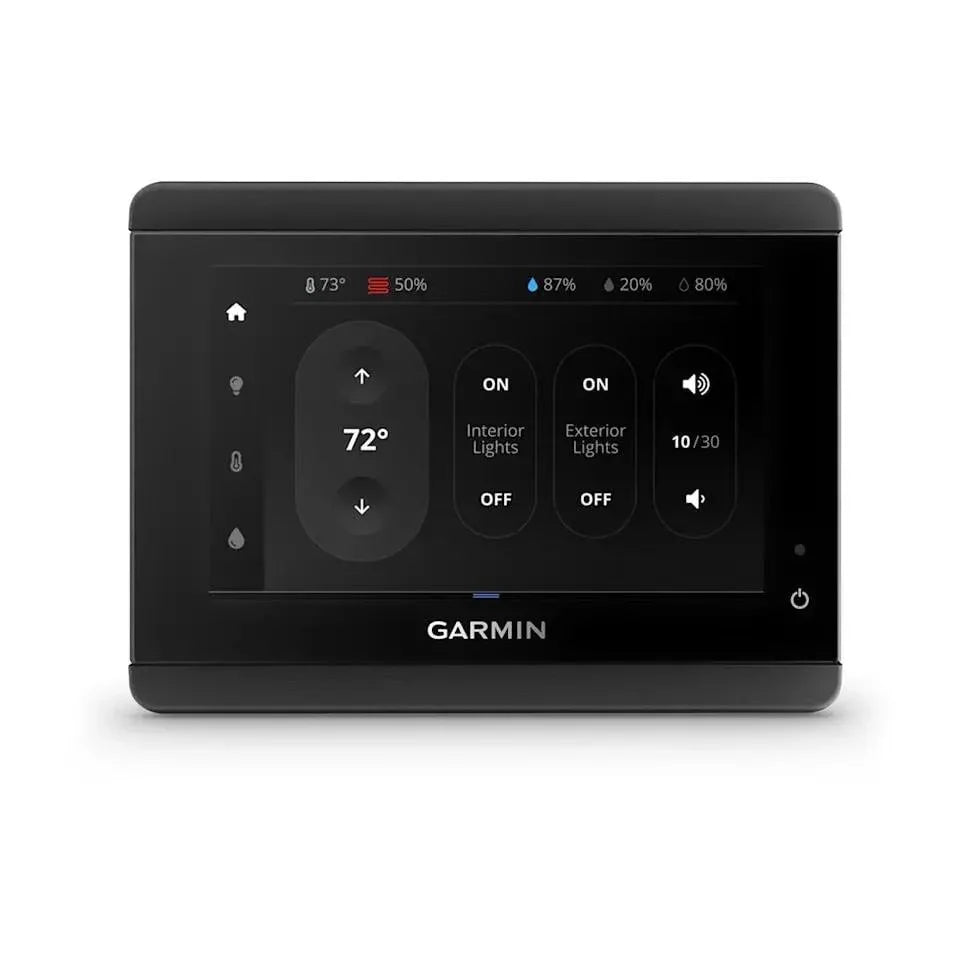

• Operate lighting systems.
• Adjust climate controls.

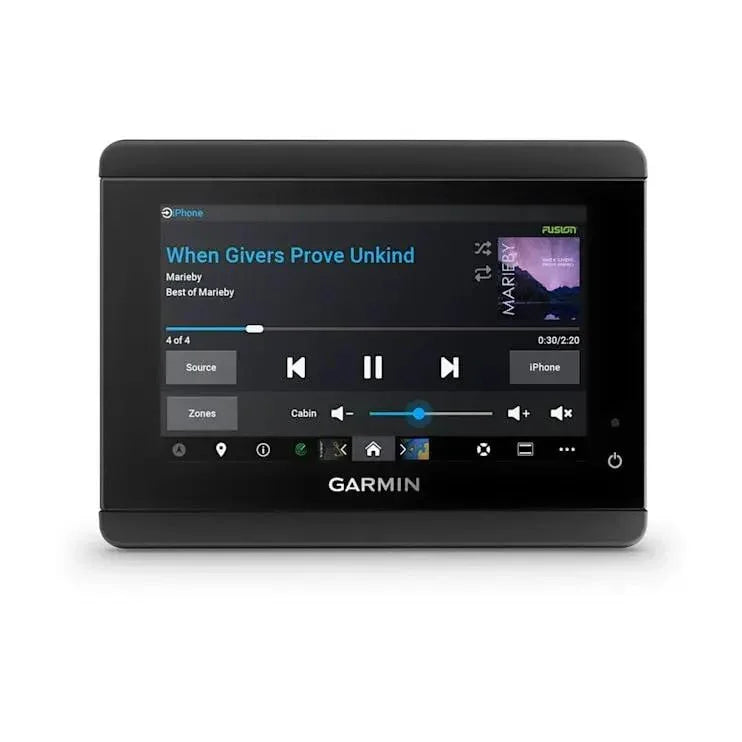

• Control compatible entertainment systems.

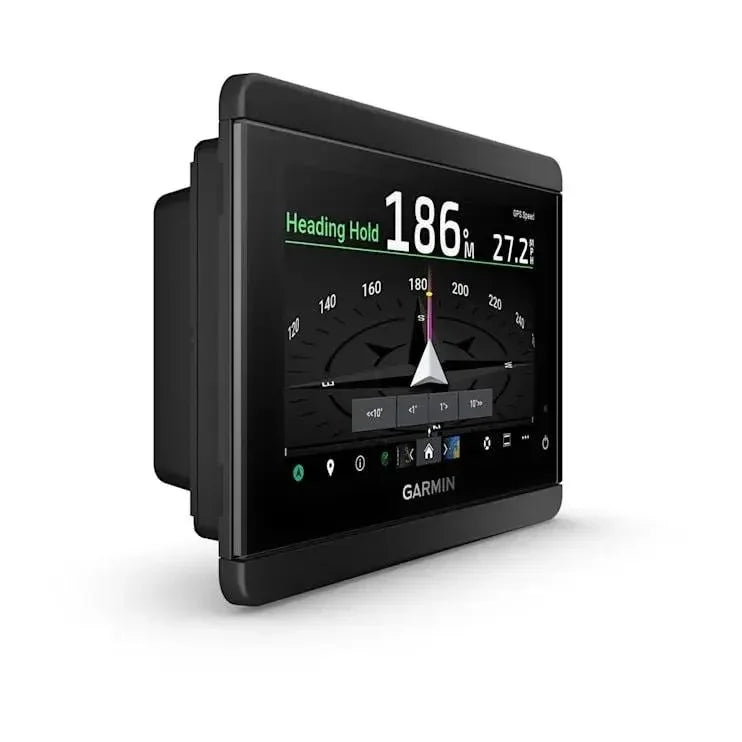

• Manage security sensors and autopilot functions.

Flexible Installation

• Flat-mount installation option.
• Flush-mount installation option.
• Compact, space-saving design.
• Suitable for multiple onboard locations.

Plug-and-Play Connectivity

• Easy network installation.
• Simple system integration.
• Reliable communication with connected devices.
• Quick setup process.

System Monitoring & Control

The Garmin TD 50 provides convenient centralized access to a wide variety of onboard systems, allowing users to monitor important vessel information and control compatible equipment from virtually any location.

Its intuitive touchscreen interface simplifies daily operation by providing quick access to lighting controls, entertainment systems, climate management, engine information, autopilot functions, switching systems, and onboard sensors. Whether installed at the main helm or below deck, the TD 50 enhances convenience and operational efficiency throughout the vessel.

Usage Instructions

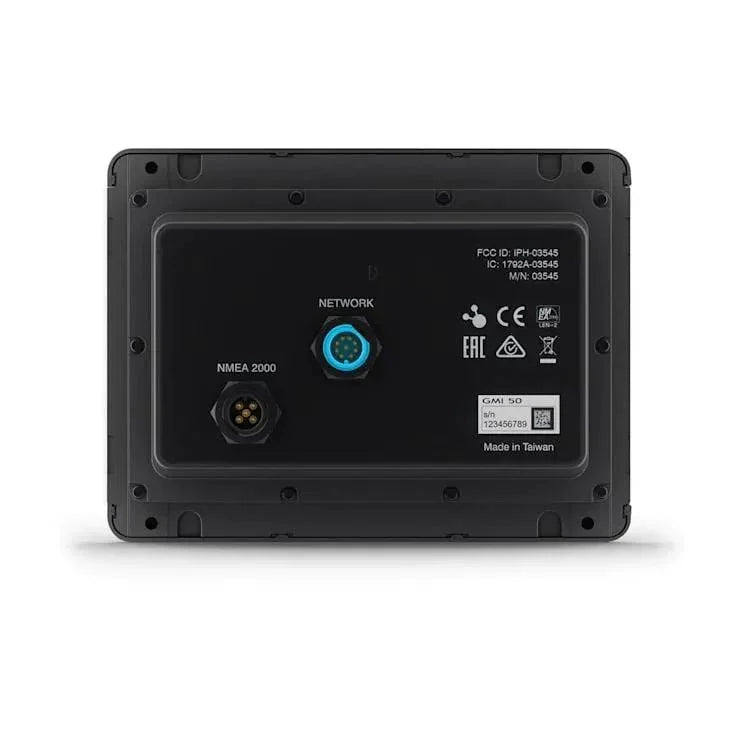

Install the Garmin TD 50 using either the flat-mount or flush-mount option according to the supplied installation instructions. Connect the display to your compatible Garmin Marine Network, NMEA 2000 network, EmpirBus system, or supported OneHelm integration.

Once connected, configure the available monitoring pages and switching functions through the touchscreen interface. Customize system controls and display layouts to provide quick access to the onboard functions most frequently used during operation.

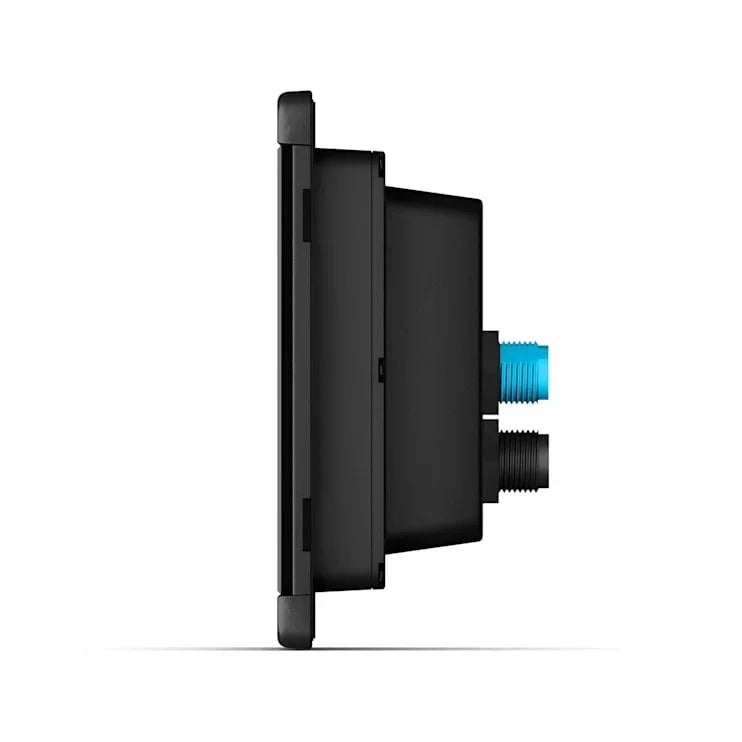

Design & Build

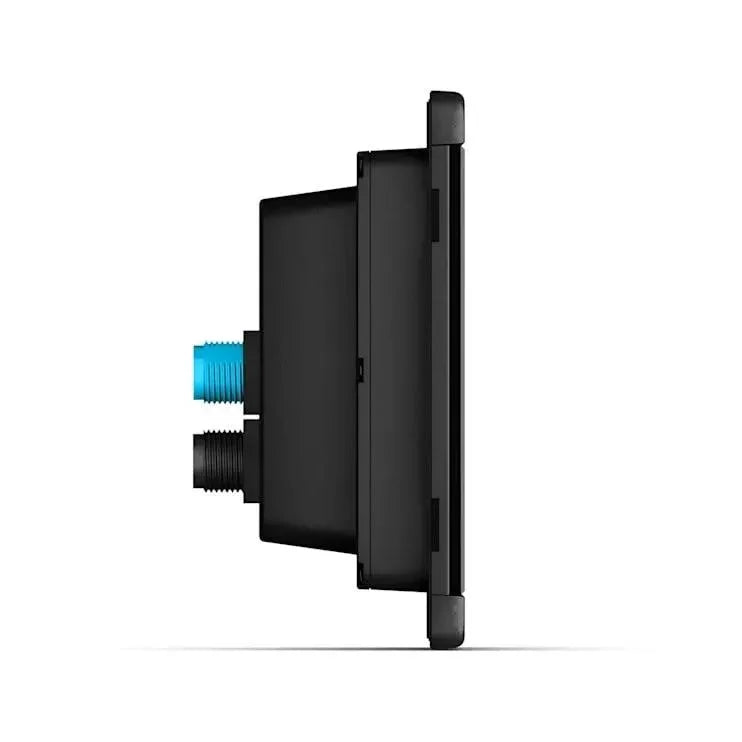

The Garmin TD 50 features a sleek edge-to-edge glass design that complements modern Garmin GPSMAP chartplotters while maintaining a minimal installation footprint. Its compact profile allows installation in locations where additional control access is required without occupying excessive dashboard or cabin space.

Engineered for marine environments, the display features an IPX7 water-resistance rating, a bright LCD screen with adjustable backlighting, and a wide viewing angle that ensures excellent visibility in both bright sunlight and low-light conditions.

Design Highlights

• 5-inch edge-to-edge glass touchscreen
• Bright LCD display
• Crisp daylight visibility
• Adjustable screen backlighting
• Wide viewing angle
• Intuitive graphical interface
• Boat system monitoring
• Electrical switching control
• Engine data monitoring
• Lighting control
• Climate control integration
• Entertainment system control
• Security sensor monitoring
• Autopilot control access
• Garmin Marine Network compatible
• NMEA 2000 compatible
• EmpirBus compatible
• OneHelm system compatible
• Plug-and-play installation
• Flat or flush mounting options
• Compact slimline design
• IPX7-rated water-resistant construction

Final Verdict

The Garmin TD 50 Touchscreen Display is an outstanding addition for boat owners seeking convenient, centralized access to their vessel's onboard systems. Its bright 5-inch touchscreen, intuitive graphical interface, and seamless integration with Garmin Marine Network, NMEA 2000, EmpirBus, and OneHelm systems make it an ideal solution for expanding system control beyond the primary helm.

Whether monitoring engine data, controlling lighting and climate systems, or managing entertainment and navigation functions, the TD 50 delivers reliable performance, flexible installation, and modern functionality that enhances everyday boating convenience.
