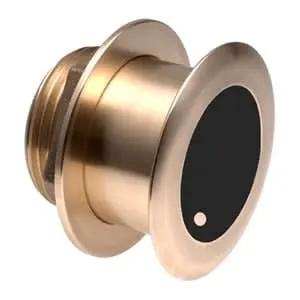

Garmin AIRMAR B175H 20° Tilt Transducer - Premium High CHIRP Sonar with Integrated Tilted Element

Introduction

The Garmin AIRMAR B175H 20° Tilt Transducer delivers powerful high CHIRP sonar performance in a streamlined, flush-mounted design that simplifies installation while maximizing fishing accuracy. Purpose-built for anglers and boat owners who need reliable underwater detection without the complexity of external fairing blocks, this thru-hull transducer combines 1 kW of sonar power with an integrated 20° tilted ceramic element to automatically compensate for hull deadrise. The result is a cleaner installation, reduced drag, and the exceptional target separation and underwater detail serious anglers demand.

Key Features

• Delivers up to 1 kW of high-performance sonar power for superior underwater penetration and clarity
• Operates across high CHIRP frequency range of 130–210 kHz for exceptional target separation and fish arch definition
• Provides accurate depth readings up to 1,000 feet in both shallow inshore and deep offshore environments
• Integrated 20° tilted ceramic element automatically compensates for hull deadrise without requiring a separate fairing block
• Flush-mounted bronze housing protrudes less than 1/4 inch outside the hull, reducing drag and protecting against trailer rollers and bunks
• 8-pin connector provides compatibility with supported Garmin chartplotters and fishfinder systems
• Heavy-duty bronze construction engineered for fibreglass and wooden hulls with long-term marine durability

Data Insights

The B175H's high CHIRP frequency band spanning 130–210 kHz delivers measurably superior performance compared to traditional fixed-frequency transducers. The frequency range produces sharper fish arches and clearer structure separation, making it significantly easier to distinguish active fish from bottom contours and submerged objects. The integrated 20° tilted element eliminates installation complexity while maintaining full sonar accuracy—no fairing block means faster setup and improved hydrodynamic efficiency without performance compromise. With depth capability reaching 1,000 feet, this transducer scales from shallow coastal flats to deep offshore structures, making it adaptable across diverse fishing environments and water conditions.

Usage Instructions

Install the B175H using the supplied documentation to ensure proper thru-hull alignment and a watertight seal. The integrated 20° tilted element is pre-engineered to accommodate compatible hull angles, eliminating the need for external fairing block adjustment. Connect the 8-pin connector to your compatible Garmin chartplotter or fishfinder, configure sonar settings for your fishing environment, and verify operation before launching. Periodically inspect and rinse the transducer face to maintain optimal sonar performance and preserve the bronze housing.

Design & Material

The B175H features a premium bronze thru-hull housing engineered for years of uncompromising marine performance. Its streamlined, flush-mounted profile minimizes drag while offering robust protection during launching, retrieval, and trailering. The integrated 20° tilted ceramic element transmits sonar efficiently without requiring external adjustment blocks, creating a compact, low-profile installation that protects your investment.

• Heavy-duty bronze thru-hull housing resistant to saltwater corrosion and marine oxidation
• Integrated 20° tilted ceramic element eliminates need for separate fairing block installation
• Flush-mounted design protrudes less than 1/4 inch to reduce drag and tower impact risk
• 1 kW high-power sonar transmission with 130–210 kHz high CHIRP frequency capability
• 8-pin connector for seamless integration with compatible Garmin sonar systems
• Engineered specifically for fibreglass and wooden hull construction
• Trailer-friendly design safe for contact with rollers and bunks during transport

Final Verdict

The Garmin AIRMAR B175H 20° Tilt Transducer is the practical choice for boat owners upgrading to premium high CHIRP sonar without the installation headaches of separate fairing blocks. Its combination of 1 kW power output, 130–210 kHz frequency range, integrated tilted element, and flush-mounted bronze construction delivers proven sonar accuracy, outstanding target separation, and dependable depth readings to 1,000 feet—whether you're fishing inshore flats, deep offshore structures, or anything between. If you run a compatible Garmin system and want simplified installation without compromising performance or drag efficiency, the B175H eliminates guesswork and delivers results. Upgrade today and experience the underwater detail and precision that makes the difference between good fishing days and great ones.
