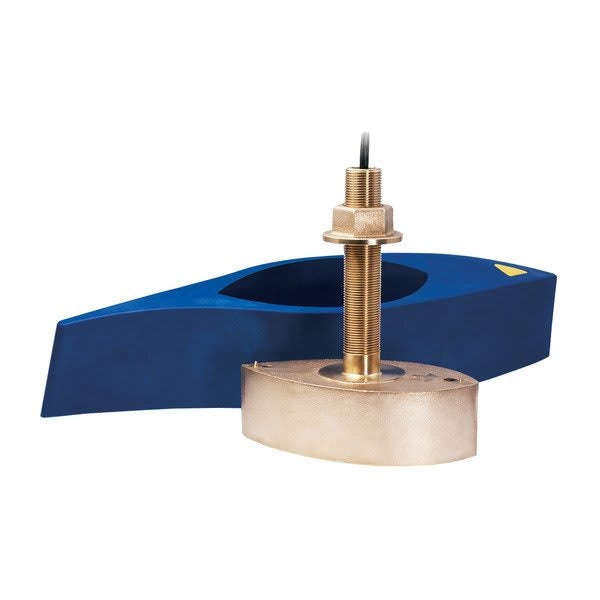

Garmin AIRMAR B275LHW Transducer (010-12183-20)

Introduction

The Garmin AIRMAR B275LHW Transducer is engineered for anglers seeking superior fish-finding performance and expanded sonar coverage beneath their vessel. Designed specifically for coastal and offshore fishing applications, this premium CHIRP transducer combines advanced sonar technology with a wide-beam design to help reveal more fish and underwater structure with exceptional clarity.

Operating within the 150–250 kHz high-frequency range, the B275LHW delivers detailed target resolution and precise fish identification. Its constant 25-degree beam width increases coverage beneath the boat, allowing anglers to monitor a larger section of the water column while maintaining excellent sonar performance.

Ideal for fiberglass and wood-hulled boats measuring 25 feet and above, the B275LHW is a dependable solution for fishermen who demand accurate sonar data and enhanced underwater visibility.

Key Features

High-Frequency CHIRP Technology

• Operates within the 150–250 kHz frequency range.
• Produces detailed sonar returns and improved target separation.
• Enhances fish detection and underwater structure visibility.
• Optimized for coastal and offshore fishing applications.

Wide 25° Beam Coverage

• Constant 25-degree beam width across the operating range.
• Expands sonar coverage beneath the vessel.
• Improves fish-finding efficiency in varying depths.
• Helps locate schools of fish over a broader area.

Enhanced Fish Detection

• Delivers clear target definition and separation.
• Helps distinguish fish from surrounding structure.
• Improves visibility of bait schools and game fish.
• Supports more accurate underwater interpretation.

Designed for Larger Boats

• Recommended for vessels 25 feet and above.
• Compatible with fiberglass and wood hull construction.
• Suitable for recreational and professional fishing applications.
• Built for demanding marine environments.

Reliable CHIRP Performance

• Provides consistent sonar returns across varying conditions.
• Supports advanced Garmin sonar systems.
• Delivers accurate underwater information for navigation and fishing.

Professional-Grade Sonar Solution

• Designed for serious anglers and offshore fishing enthusiasts.
• Enhances situational awareness beneath the boat.
• Supports high-performance fish-finding applications.

Performance Insights

The AIRMAR B275LHW utilizes advanced CHIRP sonar technology to deliver superior underwater detail and fish-target identification. By transmitting across a range of frequencies instead of a single frequency, the transducer produces clearer sonar images and improved target separation.

Its constant 25-degree beam width provides significantly wider coverage beneath the vessel, helping anglers locate fish and structure that may otherwise remain undetected. This broader viewing area is especially valuable when searching for bait schools, suspended fish, or productive fishing zones.

The high-frequency operation also provides excellent resolution, making it easier to distinguish individual fish and interpret underwater environments with confidence.

Usage Instructions

Install the B275LHW transducer according to Garmin and AIRMAR installation guidelines for fiberglass or wood-hulled vessels. Proper positioning is essential for achieving optimal sonar performance and accurate underwater readings.

Connect the transducer to a compatible Garmin marine electronics system and configure sonar settings based on fishing conditions, depth, and target species. Regularly inspect the transducer and mounting hardware to ensure reliable long-term operation.

Follow all supplied installation instructions carefully to avoid damage to the vessel or transducer.

Design & Construction

The Garmin AIRMAR B275LHW features a robust thru-hull design engineered for long-term durability and dependable marine performance. Designed for installation on larger fiberglass and wood-hulled vessels, it delivers consistent sonar operation in both coastal and offshore environments.

Its wide-beam configuration and advanced CHIRP technology combine to provide expanded underwater visibility while maintaining excellent detail and fish-target separation.

Design Highlights

• High-performance CHIRP thru-hull transducer
• Operating frequency range: 150–250 kHz
• Constant 25° beam width
• Wide underwater coverage area
• Enhanced fish target separation
• Excellent detail and clarity
• Designed for coastal and offshore fishing
• Compatible with Garmin sonar systems
• Suitable for boats 25 feet and larger
• Supports fiberglass hull installations
• Supports wood hull installations
• Reliable deep-water performance
• Broad fish-finding coverage
• Professional-grade sonar technology
• Durable marine-ready construction

Final Verdict

The Garmin AIRMAR B275LHW Transducer is an outstanding choice for anglers seeking exceptional CHIRP sonar performance and expanded underwater coverage. Its high-frequency operation, wide 25-degree beam width, and detailed target separation make it highly effective for locating fish and identifying underwater structure.

Whether you're fishing coastal waters, exploring offshore grounds, or upgrading your vessel's sonar capabilities, the B275LHW delivers the clarity, coverage, and reliability needed to improve fishing success and enhance your overall time on the water.
