Garmin AIRMAR R109LM CHIRP Transducer for Offshore Fishing

Introduction

The Garmin AIRMAR R109LM CHIRP Transducer delivers professional-grade sonar performance specifically engineered for larger offshore vessels and serious anglers who need to distinguish individual fish within bait schools and locate productive deep-water structures. Built with dual-frequency CHIRP technology, this transducer penetrates to 10,000 feet while maintaining the target resolution required for accurate fish detection and underwater mapping in coastal and offshore environments.

Key Features

• Dual-frequency CHIRP sonar with low-frequency range of 38–75 kHz and medium-frequency range of 80–130 kHz for optimized depth and detail performance
• Maximum depth capability of 10,000 feet for deep-water bottom tracking and fish detection
• Superior target separation technology that distinguishes individual baitfish from game fish within the water column
• Compatible with fiberglass, wood, and metal hull construction for installation flexibility across vessel types
• Designed exclusively for vessels measuring 40 feet and larger to ensure adequate power delivery and mounting surface
• Advanced acoustic design that delivers cleaner sonar returns and enhanced underwater structure identification compared to fixed-frequency sonar systems

Data Insights

The R109LM's low-frequency CHIRP range excels in deeper waters, providing strong bottom tracking and consistent fish detection at significant depths, while the medium-frequency range improves target detail and separation for more precise species identification. By sweeping across a continuous range of frequencies rather than operating at a single fixed frequency, CHIRP technology generates superior sonar clarity and helps anglers identify individual fish activity throughout the water column. This dual-frequency approach enables users to maintain reliable sonar performance in challenging offshore environments where traditional single-frequency transducers often lose target definition.

Usage Instructions

Install the R109LM according to manufacturer guidelines, ensuring proper mounting placement for optimal sonar performance. Verify compatibility with your vessel's hull type and available mounting space before installation. Connect the transducer to a compatible Garmin marine electronics system and configure sonar settings based on current water depth and fishing conditions. Utilize the low-frequency range for deep-water applications and switch to the medium-frequency range when enhanced target detail is required. Perform regular inspection and maintenance of the transducer mounting hardware to ensure reliable long-term performance.

Design & Material

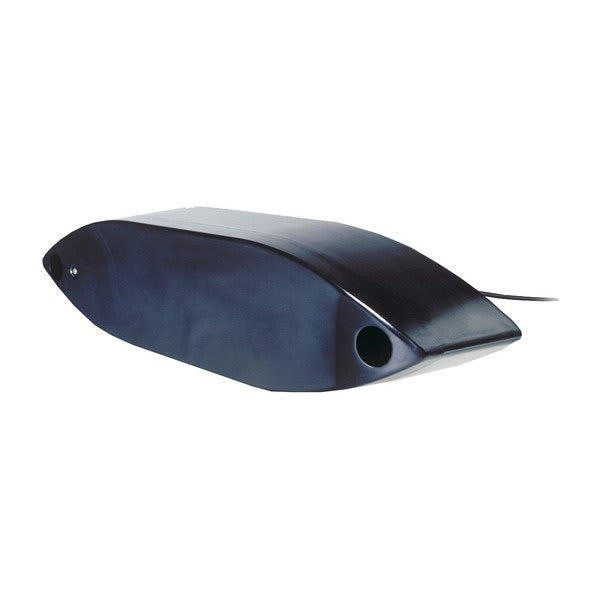

The R109LM features a streamlined fish-shaped acoustic design optimized for CHIRP sonar transmission and reception in demanding marine environments. Its robust construction withstands offshore conditions while maintaining consistent sonar performance across extended fishing seasons.

• Engineered for offshore and coastal fishing environments with professional-grade acoustic performance
• Low-frequency CHIRP operating range of 38–75 kHz for deep-water penetration and bottom detection
• Medium-frequency CHIRP operating range of 80–130 kHz for enhanced target separation and structure detail
• Rated for bottom detection to 10,000 feet in deep-water applications
• Hull compatibility includes fiberglass, wood, and metal construction for diverse vessel types
• Engineered specifically for boats 40 feet and larger with appropriate power and mounting infrastructure

Final Verdict

The Garmin AIRMAR R109LM is the ideal transducer choice for serious offshore anglers and professional fishing vessels requiring reliable deep-water sonar performance. Its dual-frequency CHIRP technology provides the target separation and structural detail necessary to locate fish-holding zones, distinguish game fish from bait schools, and maintain accuracy at extreme depths. For vessels 40 feet and larger seeking professional-grade offshore sonar capabilities, the R109LM delivers the precision and dependability required for consistent fishing success. Invest in this transducer to transform your offshore sonar capabilities and gain a competitive advantage in deep-water fishing environments.
