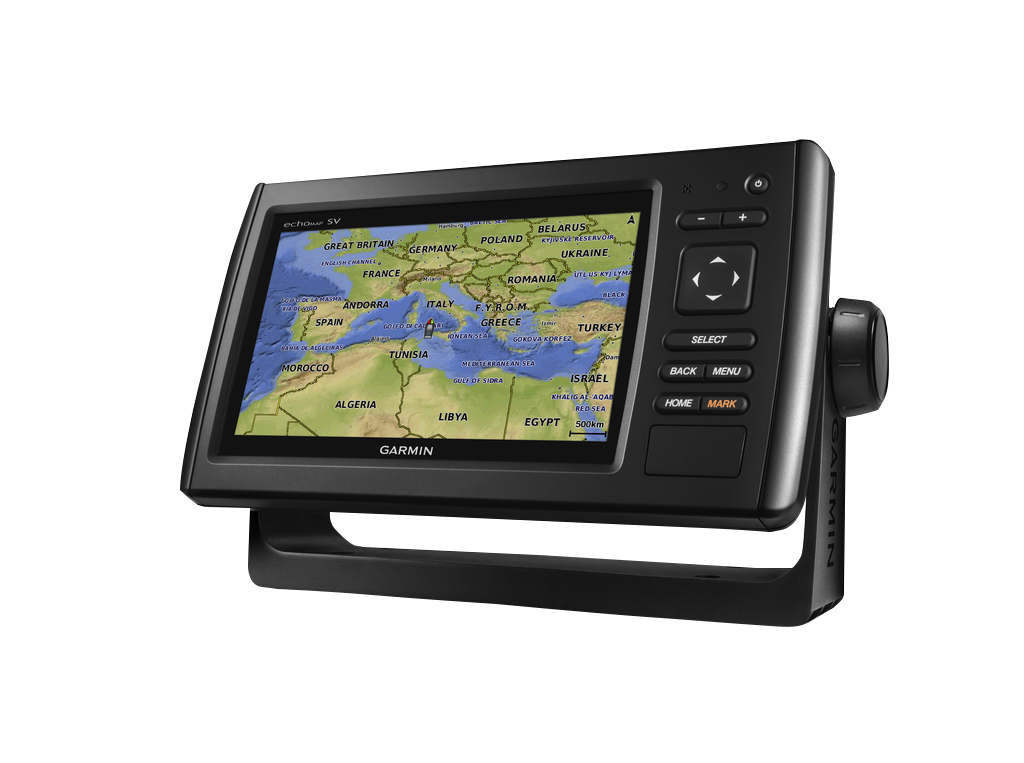

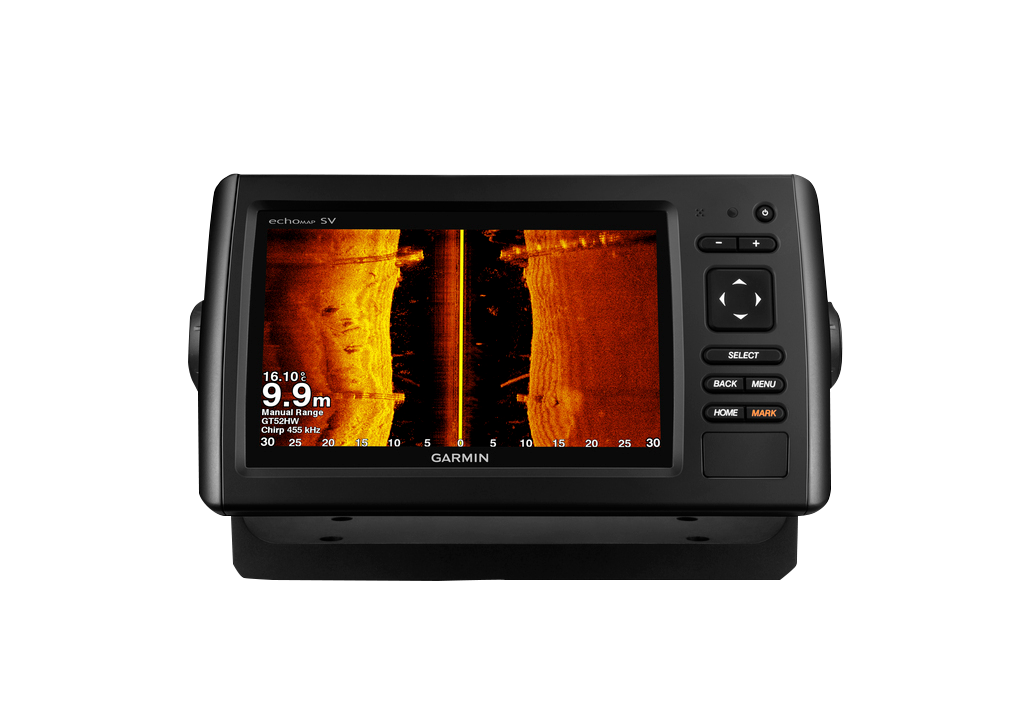

Garmin ECHOMAP CHIRP 72sv w/Transducer ()
Garmin ECHOMAP CHIRP 72sv w/Transducer ()
Model Number: 010-01815-02
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin ECHOMAP CHIRP 72sv w/Transducer: Advanced Fish Finder and Marine Chartplotter
Introduction
The Garmin ECHOMAP CHIRP 72sv combines dual-frequency sonar imaging with integrated GPS navigation on a single 7-inch touchscreen, delivering the underwater clarity and situational awareness that modern anglers demand. This chartplotter and fish finder delivers live sonar views of fish, structure, and bottom composition in real time, while simultaneously displaying your position, heading, and waypoints on the same screen. The addition of CHIRP technology provides clearer target separation than traditional single-frequency sonar, letting you distinguish individual fish from vegetation or rocky formations with confidence.
Key Features
- 7-inch sunlight-readable color display with high-resolution output for clear viewing in bright sunlight and low-light conditions

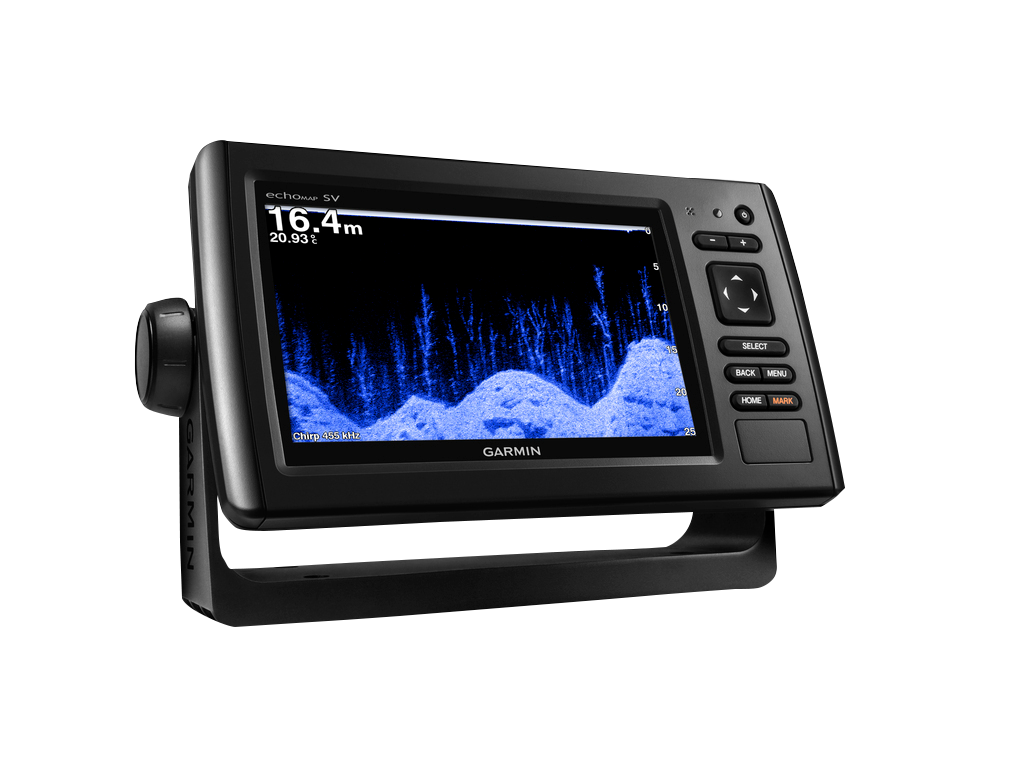

- High-Wide CHIRP sonar operating at 455 kHz and 800 kHz frequencies for dual-band target imaging and superior bottom definition
- Panoptix All-Seeing Sonar support enables live forward-, down-, and side-imaging capabilities while underway
- 5 Hz GPS refresh rate providing position and heading updates five times per second for precise navigation and track logging
- Quickdraw Contours mapping feature allows creation of personalized fishing maps with 1-foot bathymetric contours
- Preloaded Worldwide Basemap includes general coastline, political boundaries, and major lakes across all continents
- Single microSD card slot for expanding onboard maps and updating software with the latest Garmin chart data
Data Insights
Anglers using CHIRP sonar technology report catch rate improvements of up to 30 percent compared to traditional single-frequency sonar systems. The enhanced target separation provided by dual-frequency imaging at 455 kHz and 800 kHz allows you to distinguish suspended fish from thermocline layers, identify hard versus soft bottom composition, and locate submerged structures with millimeter-level precision. The 5 Hz GPS refresh rate ensures your boat position updates smoothly on screen, critical for maintaining consistent trolling speeds and waypoint accuracy in competitive or time-sensitive fishing scenarios.
Usage Instructions
Mount the ECHOMAP CHIRP 72sv at eye level using the supplied quick-disconnect bracket, angling the screen to minimize glare and ensure comfortable viewing from your helm position. Before launching, connect the transducer to the sonar connector and verify water temperature readings appear on screen. Check the Worldwide Basemap coverage for your fishing area; if detailed structure mapping is needed, purchase and load microSD cards containing Garmin LakeMaster or BlueChart maps specific to your region. Keep software updated by connecting a microSD card to a computer running the latest Garmin BaseCamp or Webupdater software, then insert the card into the device to install new features and security patches.
Design & Material
The ECHOMAP CHIRP 72sv is engineered for fresh and saltwater marine environments, with a compact form factor that integrates cleanly into most boat console layouts without consuming excessive dash space. Its industrial-grade construction prioritizes durability without sacrificing responsive touchscreen operation.
- Sunlight-readable color LCD screen with anti-glare coating maintains visibility in direct sunlight without backlight washout
- Weather-resistant housing with sealed connectors withstands spray, rain, and humidity typical of extended boating sessions
- Quick-disconnect ball-mount bracket enables tool-free removal for security and storage between trips
- Black polymer case with soft-touch grip panels provides ergonomic control and reduces accidental slips in wet conditions
- Multifunction pad with dedicated menu buttons and directional joystick allows rapid access to sonar adjustments without touching the screen
- Reinforced cable routing and connector design reduce wear on transducer and power cords during installation and relocation
Final Verdict
The ECHOMAP CHIRP 72sv is the practical choice for anglers who demand both fishing capability and navigation on a single screen. Its CHIRP sonar clarity, live sonar support compatibility, and customizable mapping tools give you the tools to fish smarter and catch more consistently. Built for reliability in demanding marine environments, this unit repays its investment through improved catch rates and reduced time spent searching for productive water. Install one today and gain the underwater vision that separates good days on the water from great ones.
In The Box
- echoMAP CHIRP 72sv with worldwide basemap
- Power/data cable
- Tilt mount
- Quick-release cradle
- Protective cover
- Flush mount kit
- Transducer (12-pin)
- Transom mount
- Hardware
- Documentation
Manual & Warranty
Garmin Warranty
