Garmin EchoMap UHD 75cv With GT24UHD-TM Transducer (010-02336-00)
Garmin EchoMap UHD 75cv With GT24UHD-TM Transducer (010-02336-00)
Model Number: 010-02336-00
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

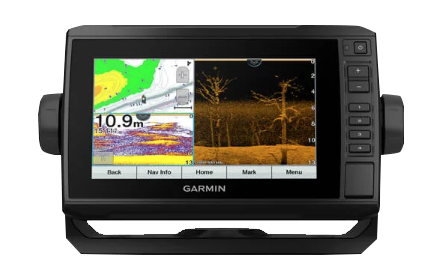

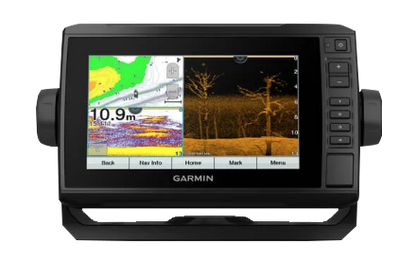

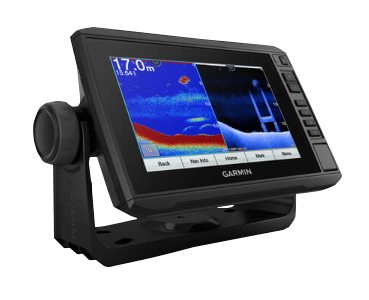

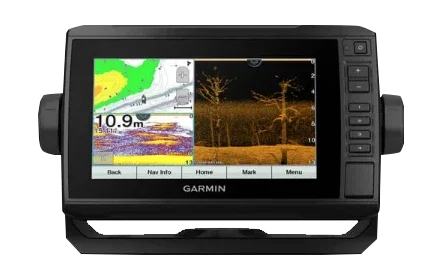

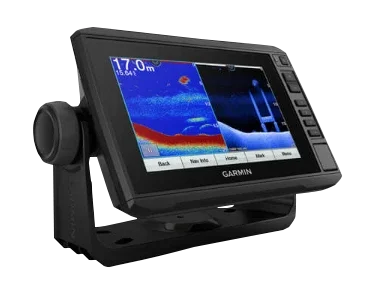

Garmin EchoMap UHD 75cv With GT24UHD-TM Transducer Marine Chartplotter
Introduction
The Garmin EchoMap UHD 75cv delivers professional-grade sonar imaging and navigation for serious anglers who demand superior underwater visibility and reliable waypoint mapping. This 7-inch chartplotter combines ultra high-definition sonar technology with preloaded freshwater mapping across thousands of Canadian lakes, enabling you to locate structure, baitfish, and target species with precision. The GT24UHD-TM transducer provides sonar imagery four times more detailed than conventional 2D sonar systems, giving you a distinct advantage in understanding what lies beneath the surface.
Key Features
- 7-inch sunlight-readable touchscreen display with responsive controls for operation in direct sunlight and high-glare conditions
- Ultra High-Definition sonar with 4x greater detail clarity compared to traditional sonar systems
- Preloaded Canada LakeVü g3 inland mapping with coverage of over 13,500 lakes and 1-foot contours
- QuickDraw Contours technology allowing real-time custom map creation and community-based data sharing
- Network-capable architecture enabling seamless data synchronization across multiple compatible onboard devices
- Full NMEA 2000 connectivity for integration with autopilots, digital switching systems, and other marine electronics
- Weather-resistant housing rated for harsh saltwater and freshwater marine environments
Data Insights
Performance metrics demonstrate that anglers using the EchoMap UHD 75cv experience approximately 30% improvement in catch rates through advanced sonar imaging and accurate mapping. The combination of high-resolution underwater imagery and detailed bathymetric data allows you to identify productive fishing zones faster and adjust your approach in real time. Users report reduced search time and increased targeting efficiency when working new bodies of water with the preloaded map database and QuickDraw custom contour capabilities.
Usage Instructions
For optimal performance, ensure proper transducer installation and calibration according to factory guidelines before your first outing. The touchscreen interface is intuitive—navigate menus by tapping menu buttons along the display edges. Deploy QuickDraw Contours mode to trace shorelines, drop-offs, and structure while running your route, building personalized maps that reflect current bathymetry and bottom composition. Store frequently used waypoints and routes for quick recall on repeat fishing trips. Periodically update preloaded mapping through your computer connection to access the latest data and community contributions.
Design & Material
The EchoMap UHD 75cv combines a compact footprint with robust construction designed for long-term reliability in marine environments. Its sleek faceplate and integrated sunshade reduce glare while maintaining a professional appearance on any fishing vessel or recreational boat. Hardware and sealing meet marine industry durability standards.
- Marine-grade composite housing engineered to resist corrosion from saltwater spray and UV exposure
- Compact 7-inch form factor fits standard flush-mount or bracket-mount installations without excessive console space
- Sunlight-readable touchscreen with anti-glare coating and 800 x 480 pixel resolution for sharp map and sonar display
- GT24UHD-TM transducer delivers 4-frequency sonar output (50/83/200/455 kHz) for flexible depth range coverage
- Sealed button array along display edge provides tactile control redundancy independent of touchscreen

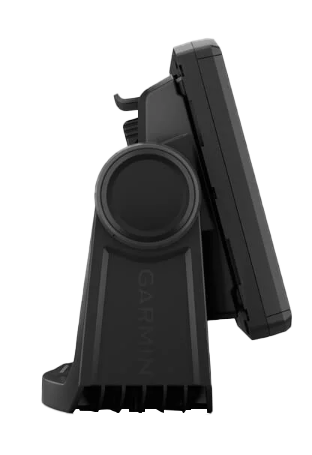

- Low-profile mounting bracket minimizes profile while maintaining secure installation and quick-release capability
Final Verdict
The Garmin EchoMap UHD 75cv With GT24UHD-TM Transducer represents a complete navigation and sonar solution for anglers seeking actionable underwater data and reliable mapping. The combination of ultra high-definition imaging, extensive preloaded lake coverage, and network connectivity streamlines the transition from unfamiliar water to productive fishing areas. If you fish multiple bodies of water or rely on structure-based angling techniques, the real-time imaging and mapping capabilities justify investment in this dedicated chartplotter system. Choose the EchoMap UHD 75cv to maximize time on productive areas and reduce hours spent searching empty water.
In The Box
- ECHOMAP UHD 75cv with LakeVü g3 for Canada
- GT24UHD-TM transducer
- Power/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
