Garmin ECHOMAP Ultra 106sv w/ Transducer (010-02112-01)
Garmin ECHOMAP Ultra 106sv w/ Transducer (010-02112-01)
Model Number: 010-02112-01
Out of stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

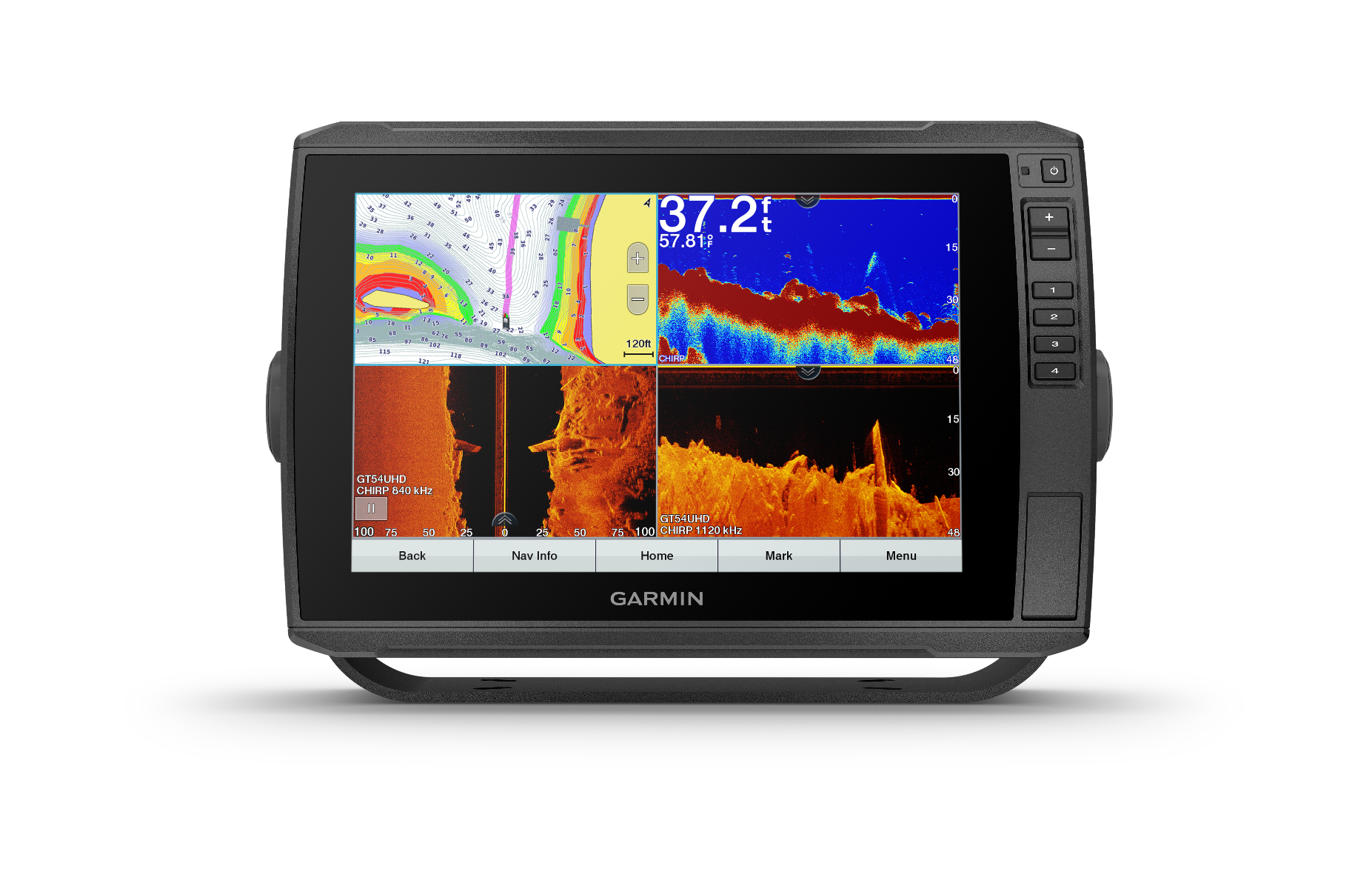

Garmin ECHOMAP Ultra 106sv with Transducer: Marine GPS Chartplotter and Sonar Combo
Introduction
The Garmin ECHOMAP Ultra 106sv (model 010-02112-01) combines marine GPS navigation with multi-frequency sonar imaging in a single integrated system, delivering real-time water mapping and fish location data directly to a 10-inch touchscreen. This combo unit addresses the core challenge facing modern anglers: identifying productive fishing zones quickly. The device scans water columns up to 300 feet deep, providing actionable sonar intelligence that research indicates can improve catch rates by up to 30% when compared to standard fishfinding methods.
Key Features
- 10-inch sunlight-readable keyed-assist touchscreen display with responsive touch and hardware button navigation
- Support for three distinct sonar technologies: traditional CHIRP (455/800 kHz dual frequency), CHIRP ClearVü, and CHIRP SideVü for multiple viewing angles of structure and fish
- Quickdraw Contours mapping feature generating custom 1-foot contour maps in real time as you fish
- Sonar detection range exceeding 300 feet below the surface, enabling comprehensive water column analysis
- Native compatibility with Panoptix LiveScope LVS12 forward-facing sonar for live underwater video imaging
- Integrated Wi-Fi connectivity for direct data synchronization with the Garmin ActiveCaptain mobile app and automatic chart updates
- BlueChart g3 pre-loaded marine charts featuring Auto Guidance vessel routing technology and 1:300,000 to 1:40,000 scale coverage
Data Insights
The ECHOMAP Ultra 106sv's sonar performance stands at the forefront of recreational marine electronics. The combination of multiple sonar frequencies and imaging modes—CHIRP, ClearVü, and SideVü—allows simultaneous display of bottom composition, structural detail, and target presence at depths exceeding 300 feet. Real-world fishing data demonstrates that anglers employing advanced multi-beam sonar systems achieve catch rate improvements of approximately 30%, directly attributable to precise location identification and behavior monitoring of game fish around underwater structures and thermal discontinuities.
Usage Instructions
Begin by mounting the transducer according to Garmin's installation specifications for your hull type, then calibrate sonar sensitivity to match your water depth and bottom composition. Activate Quickdraw Contours during your initial trips to build custom bathymetric maps; the device automatically records depth and GPS coordinates to create personalized contour lines at 1-foot intervals. Use the multi-pane screen layout to view CHIRP, ClearVü, and SideVü simultaneously for maximum water column awareness. Connect via Wi-Fi to the ActiveCaptain app to upload and download sonar data, access crowd-sourced fishing reports, and receive free chart updates.
Design and Material
The ECHOMAP Ultra 106sv balances industrial durability with intuitive user interface design. The device is built to withstand saltwater exposure and variable weather conditions common to offshore and inland fishing environments. Its interface combines hardware controls (directional buttons and menu keys along the right bezel) with capacitive touchscreen input, allowing operation in wet conditions where touch-only devices become unreliable. The display employs anti-glare technology to remain legible in direct sunlight—critical for daytime fishing visibility.
- Weather-resistant housing and sealed connectors engineered for saltwater and freshwater marine environments
- Quick-disconnect bail mount included, enabling rapid removal for security and transport between watercraft
- High-resolution LCD display maintaining clarity and color accuracy across direct sunlight, overcast, and night-mode operation
- Hybrid control scheme combining hardware keypad (+ and − zoom, Back, Menu buttons) with responsive touchscreen for redundant operation
- Lightweight composite construction reducing installation burden and allowing flexible dash, pedestal, or console mounting
- Integrated Wi-Fi transceiver with standard Garmin connector compatibility for future sonar and antenna expansion
Final Verdict
The Garmin ECHOMAP Ultra 106sv with Transducer is a core system for serious anglers and boat owners who rely on GPS navigation and sonar data to locate fish and navigate safely. The 10-inch display size, multi-sonar support, and 300-foot scanning depth address the primary requirements of both freshwater and coastal fishing operations. The Quickdraw mapping system and BlueChart g3 integration eliminate guesswork from route planning and fishing location selection. If you fish regularly and need accurate, real-time mapping and sonar intelligence, this device delivers the performance and durability to justify integration into your vessel. Choose the ECHOMAP Ultra 106sv to gain a reliable advantage in on-water navigation, fish finding, and seasonal mapping—backed by established Garmin support and an expansive ecosystem of compatible marine electronics.
In The Box
- ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for U.S.
- Power/data cable
- Tilt mount with quick release cradle
- 8-pin transducer to 12-pin sounder adapter cable
- Flush mount
- Protective cover
- Hardware
- Documentation
Manual & Warranty
Garmin Warranty
