Garmin Electronic Control Unit (ECU) for GHP Compact Reactor (010-11053-01)
Garmin Electronic Control Unit (ECU) for GHP Compact Reactor (010-11053-01)
Model Number: 010-11053-01
Low stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs

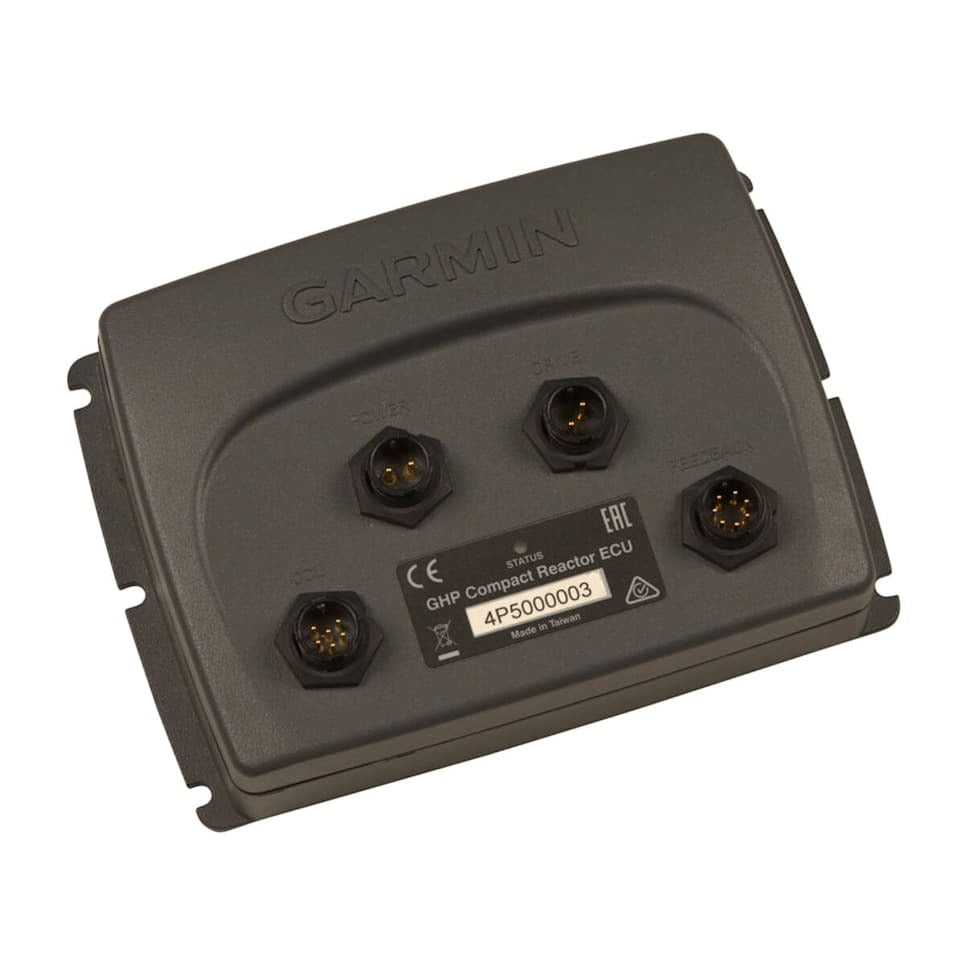

Garmin Electronic Control Unit (ECU) for GHP Compact Reactor Autopilot System
Introduction
The Garmin Electronic Control Unit (ECU) serves as the central intelligence hub of the GHP Compact Reactor Autopilot System, translating navigation commands into precise hydraulic steering adjustments. By acting as the bridge between the Course Computer Unit and the hydraulic pump, this ECU enables responsive course corrections and consistent heading maintenance without constant manual steering intervention. For vessel operators managing commercial routes, extended cruises, or demanding offshore conditions, the ECU's real-time signal processing and power management deliver the steering precision needed to maintain efficiency and reduce fatigue.
Key Features
- Dual-function power management: supplies stable voltage to both the Course Computer Unit and hydraulic pump simultaneously
- Real-time steering command processing from the Course Computer Unit with immediate hydraulic response
- Hydraulic pump operation control supporting smooth, incremental steering adjustments in varying sea states
- Marine-grade construction rated for saltwater, high-humidity, and temperature-variable environments typical of recreational and offshore vessel operations
- Compact footprint measuring approximately 180mm × 240mm, engineered for tight installation spaces on vessels with limited navigation station room
- Multiple M12 hexagonal connector ports enabling secure, weatherproof wiring integration with compatible GHP Compact Reactor system components
- CE certification compliance and Taiwan manufacturing ensuring consistent quality standards for international marine applications
Data Insights
The ECU's intelligent hydraulic pump control enables the GHP Compact Reactor system to execute heading corrections within fractions of a second of receiving navigation updates from the Course Computer Unit. This rapid response capability significantly reduces oversteer and undershoot during course changes, particularly critical when navigating narrow channels or maintaining precise waypoint routes in commercial fishing or charter operations. The power distribution architecture maintains stable voltage delivery even during peak steering demand, preventing voltage sag that would degrade autopilot responsiveness in systems with extended cable runs or multiple simultaneous electrical loads.
Usage Instructions
Mount the ECU in a protected location near the autopilot installation, following the supplied wiring diagram to connect the four M12 ports to the Course Computer Unit, hydraulic pump, vessel main power bus, and system ground. Ensure all connector seals are properly seated to prevent saltwater intrusion. After physical installation, access the compatible Garmin display interface to run the autopilot calibration routine, which confirms signal integrity between all components and optimizes pump response timing for your specific vessel's steering characteristics. This calibration step is essential for achieving stable heading control.
Design & Material
The Garmin ECU features a compact, sealed enclosure engineered to withstand high-salinity marine environments. Its rugged construction protects internal electronics while the modular connector system allows straightforward integration into existing GHP Compact Reactor installations without custom fabrication or modifications to vessel wiring infrastructure.
- Weatherproof polymer and metal composite housing rated for continuous saltwater exposure and UV radiation
- Sealed M12 hexagonal connector ports with gold-plated contacts for corrosion resistance and reliable signal transmission
- Internal power regulation circuitry optimized for the voltage fluctuations typical of marine electrical systems
- Conformal coating on circuit board protecting against moisture, salt spray, and thermal cycling across tropical to cold-water operating ranges
- DIN-rail or bracket-mount design providing secure installation options in engine compartments, helm stations, and below-deck navigation centers
- Model designation 010-11053-01 with labeled status indicators for troubleshooting connection and power issues during system commissioning
Final Verdict
The Garmin Electronic Control Unit (010-11053-01) is the essential command center that transforms raw navigation data into precise, responsive steering adjustments throughout extended voyages and dynamic operating conditions. If you're upgrading to automated steering or maintaining an existing GHP Compact Reactor system, this ECU ensures the reliability and signal integrity your autopilot demands. Install this control unit to unlock the full performance potential of your Garmin GHP Compact Reactor autopilot system and reduce steering workload across every nautical mile.
