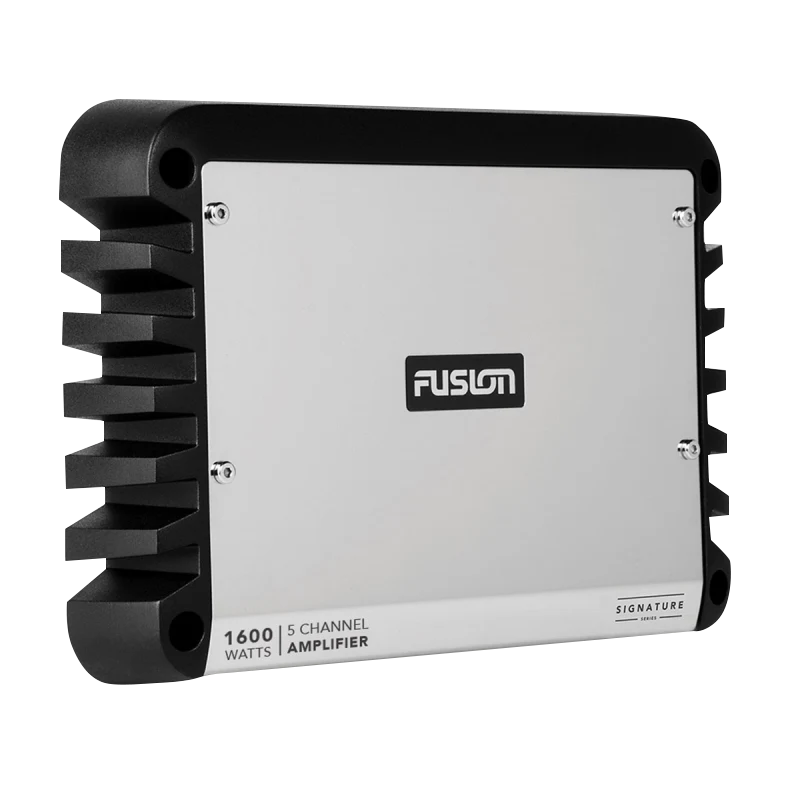

Garmin Fusion Signature Series 5 Channel 1600-Watt Marine Amplifier

Introduction

The Garmin Fusion Signature Series 5 Channel 1600-Watt Marine Amplifier (Model 010-01968-00) delivers professional-grade audio power to marine vessels while withstanding salt spray, UV exposure, and temperature swings that would damage conventional amplifiers. Built on Class-D amplification architecture, this amp produces 1600 watts of output across five independent channels, powering everything from full-range speakers to dedicated subwoofers without the battery drain of older amplifier designs.

Key Features

• 1600 watts total power output across 5 channels for full-spectrum marine audio
• Class-D high-efficiency design delivers up to 40% more power efficiency than Class-AB amplifiers
• True-Marine™ certification with proven salt fog, UV, temperature fluctuation, and vibration testing
• Multiple impedance configurations supporting 2-ohm per channel or bridged 4-ohm operation

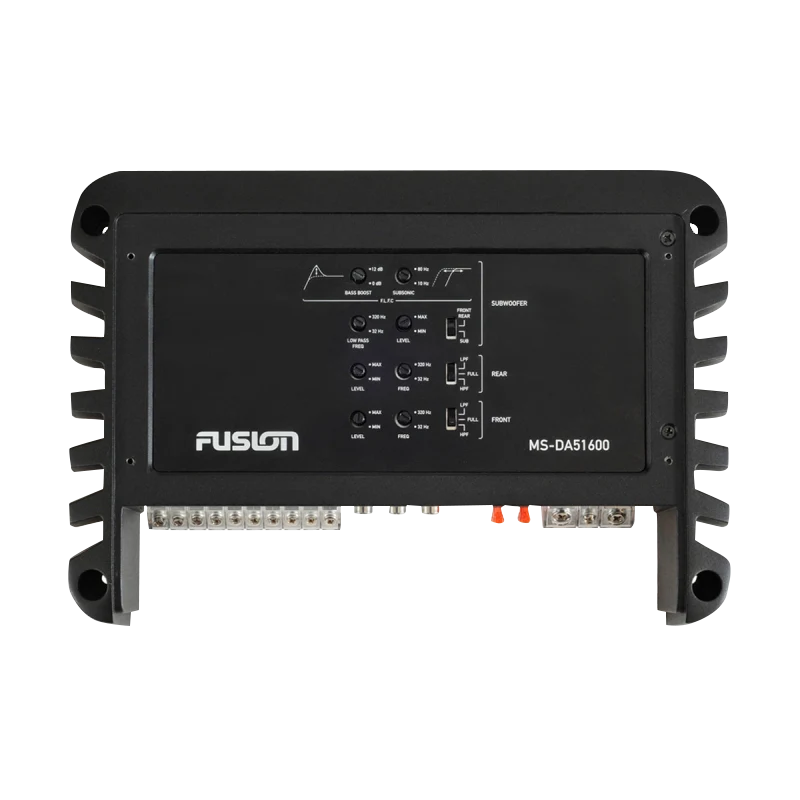

• Variable Bass Boost, Subsonic Filter, and Crossover Filters for tunable frequency response
• Conformal-coated printed circuit boards for moisture and corrosion resistance in marine environments
• Rigid aluminum alloy heat sink with die-cast chassis for optimal thermal management

Data Insights

The amplifier's Class-D topology achieves substantially lower current draw than conventional designs—up to 40% better efficiency means extended battery life on smaller vessels and reduced alternator strain on larger boats. With 1600 watts available across five channels, users can customize power distribution between multi-zone audio systems, dedicating full power to subwoofers while maintaining moderate output for cabin and cockpit speakers. The impedance flexibility allows either high-power, low-impedance wiring or standard 4-ohm bridged configurations depending on existing speaker installations.

Usage Instructions

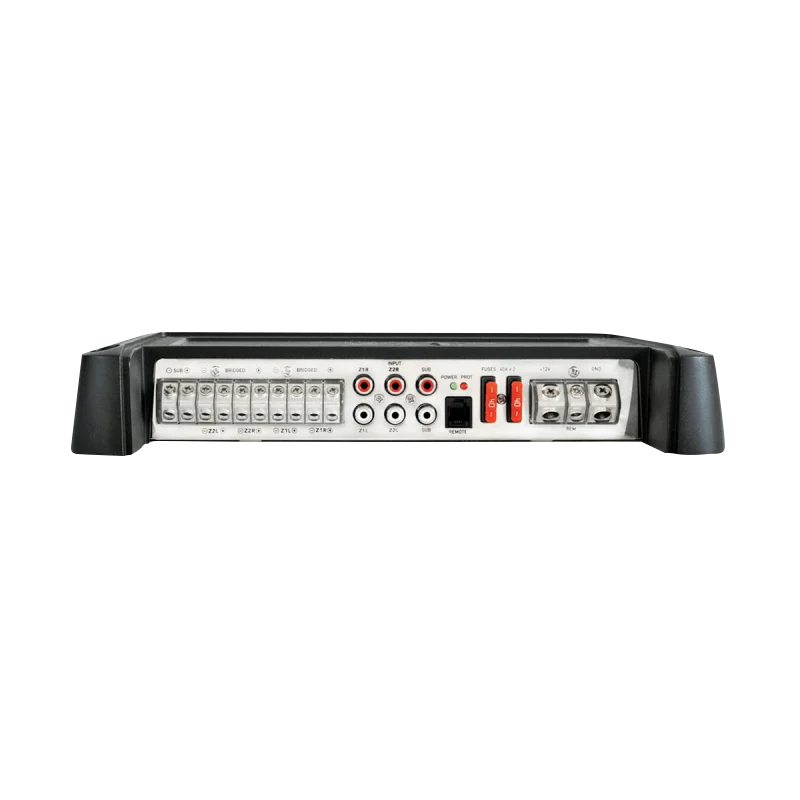

Mount the amplifier in a dry, well-ventilated location to allow heat dissipation through the precision-fin cooling structure. Connect speakers and subwoofers according to your impedance configuration and vessel's power budget, then adjust the built-in Variable Bass Boost, Subsonic Filter, and Crossover settings to match your speaker types and listening preferences. Secure all power and signal cables to prevent chafing and short circuits common in marine vibration environments.

Design & Material

The amplifier combines stainless steel protection with engineered thermal management. Its industrial aesthetic reflects purpose-built marine electronics rather than consumer audio styling, with all exposed metals chosen for corrosion resistance in saltwater environments. The compact footprint allows installation in engine compartments, lazarettes, or equipment lockers typical on recreational and professional vessels.

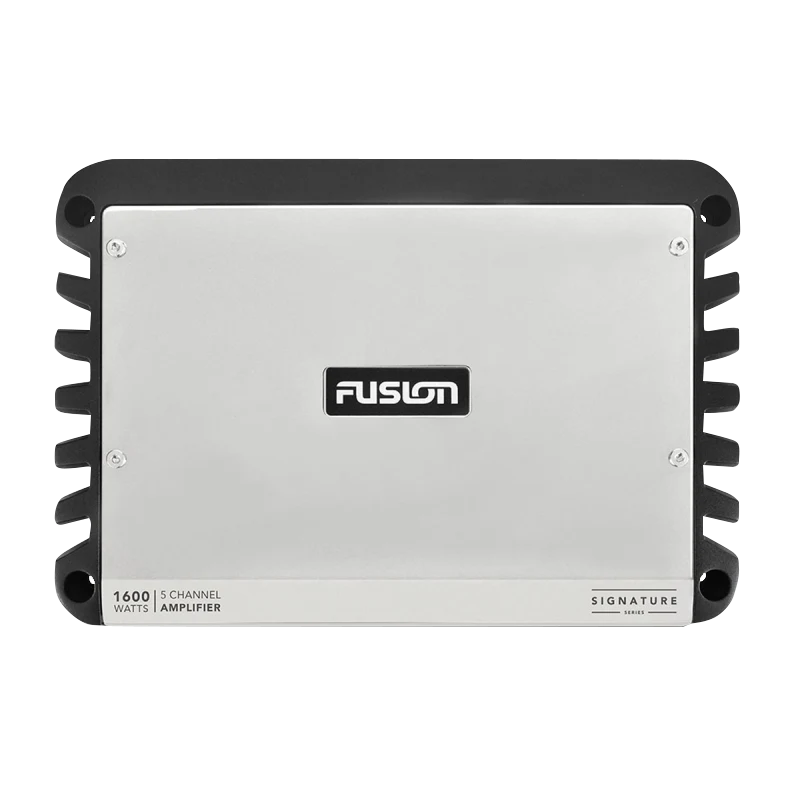

• Stainless steel mirror-finish control panel cover protects cable connections from spray and UV degradation
• Die-cast aluminum chassis integrated with frame for rigid structure and heat dissipation

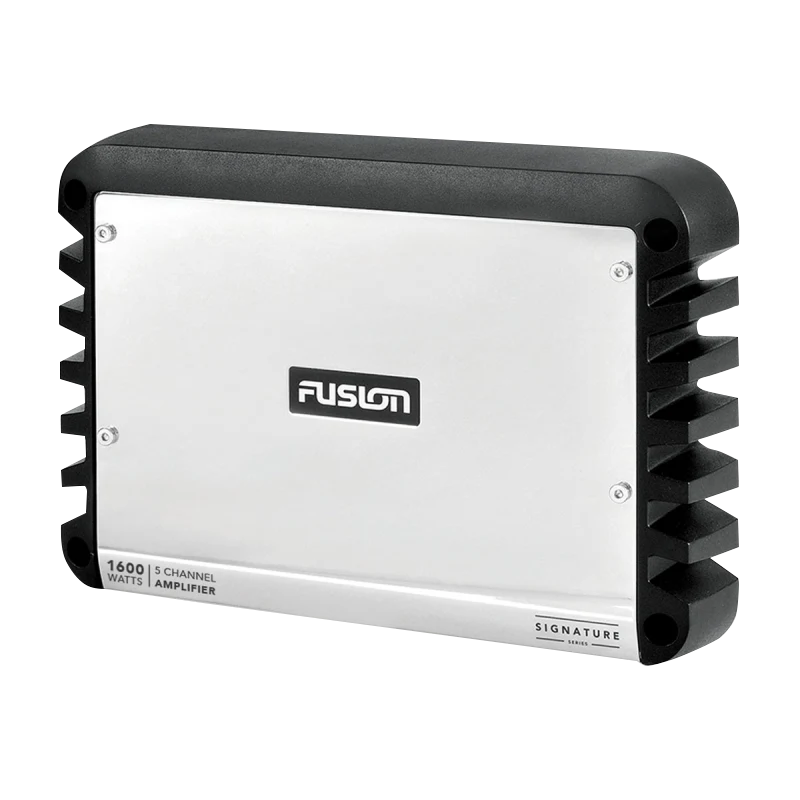

• Aluminum alloy heat sink with precision-fin layout ensures effective cooling under sustained output
• Conformal coating on all PCBs provides secondary protection against salt fog and moisture infiltration
• Compact form factor fits standard marine equipment locations without requiring custom modifications
• Finned external casing promotes natural convection cooling without relying on active ventilation

Final Verdict

The Garmin Fusion Signature Series 5 Channel 1600-Watt Marine Amplifier solves the core problem facing serious boaters: delivering high-power audio without the corrosion failures and battery drain that plague consumer electronics on the water. True-Marine™ certification combined with Class-D efficiency and five independent channels makes this amplifier a direct replacement for outdated marine audio systems while maintaining forward compatibility with modern marine head units. Install this amplifier to unlock full audio capability on your vessel—order the Garmin Fusion Signature Series (Model 010-01968-00) today.
