Garmin GMI/GNX Wired Sail Pack 52 Marine Instrumentation System

Introduction

The Garmin GMI/GNX Wired Sail Pack 52 delivers complete real-time visibility into wind, water, and vessel dynamics through an integrated marine instrument system built specifically for sailors. This four-component package combines dual displays—one in vibrant color, one in high-contrast monochrome—with dual transducers that measure true wind data, water depth, boat speed, water temperature, and vessel attitude. The system integrates through NMEA 2000 networking, eliminating the need for separate instrument runs and providing sailors with unified, accurate data for improved sail trim, navigation confidence, and performance optimization.

Key Features

• GMI 20 color marine instrument with 4-inch high-visibility glass-bonded display and 170-degree viewing angle
• GNX 20 monochrome LCD instrument displaying depth, speed, temperature, and more than 50 vessel parameters
• Displays combined 100+ marine and vessel performance parameters across both instruments
• gWind Wired transducer with twin-fin technology and three-bladed propeller for accurate true wind speed and angle measurement across all wind ranges
• AIRMAR DST810 smart thru-hull transducer operating at 235 kHz with 5 Hz water speed output and depth measurement capability to 330 feet
• Full vessel attitude sensing including heel, trim, pitch, and roll data from DST810 smart transducer

Data Insights

The performance data from this package reflects marine-grade accuracy standards. The DST810 transducer delivers fast 5 Hz water speed output, enabling real-time response to changing conditions. Its 235 kHz operating frequency combined with 330-foot depth capability makes it suitable for both coastal cruising and offshore passages. The GMI 20's 170-degree viewing angle ensures visibility across the helm from multiple crew positions, while the gWind Wired transducer's three-bladed propeller and twin-fin design improve accuracy in light air—a critical advantage when racing or working through variable wind zones.

Usage Instructions

Mount the GMI 20 and GNX 20 displays in accessible helm positions where crews can view them without obstruction. Install the gWind Wired transducer at the masthead or appropriate wind sensing location, and position the AIRMAR DST810 thru-hull transducer in a spot with clear water flow beneath the hull. Connect all components through NMEA 2000 networking cables, then customize GMI 20 display pages and calibrate the DST810 using the AIRMAR Cast app for maximum accuracy. Inspect transducers and displays regularly to maintain reliable operation in salt spray and dynamic marine environments.

Design & Material

The Garmin GMI/GNX Wired Sail Pack 52 integrates durable marine-grade construction across all components. The GMI 20 features a glass-bonded anti-glare display that maintains readability in direct sunlight and reduces eye strain during extended sailing sessions. The GNX 20 pairs a monochrome LCD display with large scalable digits for quick reference of critical data. Both instruments house electronics sealed against salt spray and moisture. The gWind Wired transducer employs optical sensing technology, and the AIRMAR DST810 thru-hull transducer is built with materials designed to withstand constant submersion and mechanical stress.

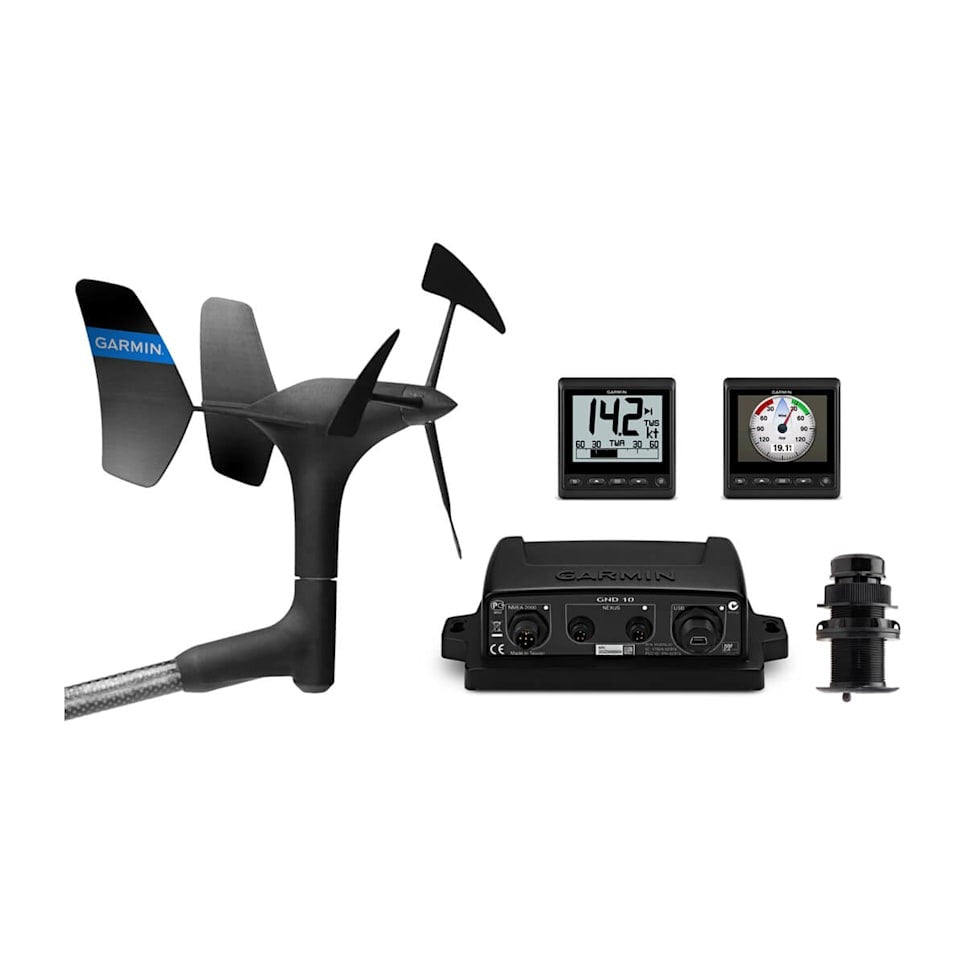

• Complete wired package with GMI 20, GNX 20, gWind Wired, and DST810 smart transducers
• 4-inch GMI 20 color display with glass-bonded screen and anti-glare coating
• High-visibility monochrome GNX 20 display with large scalable digits
• Day and night display modes on GMI 20 with multiple customizable page layouts
• Plug-and-play NMEA 2000 connectivity for seamless multi-component integration
• Wireless calibration capability via AIRMAR Cast app for precise transducer performance

Final Verdict

The Garmin GMI/GNX Wired Sail Pack 52 is a complete marine instrumentation solution for sailors who demand accuracy and reliability across all wind and water conditions. With over 100 combined parameters, dual displays for crew positioning flexibility, accurate wind sensing from the gWind Wired transducer, and full vessel attitude data from the DST810, this system eliminates guesswork from sail trim, navigation, and performance decisions. Whether racing, cruising extended offshore passages, or navigating challenging coastal waters, invest in the GMI/GNX Wired Sail Pack 52 for the unified, precise data that improves both safety and sailing performance.
