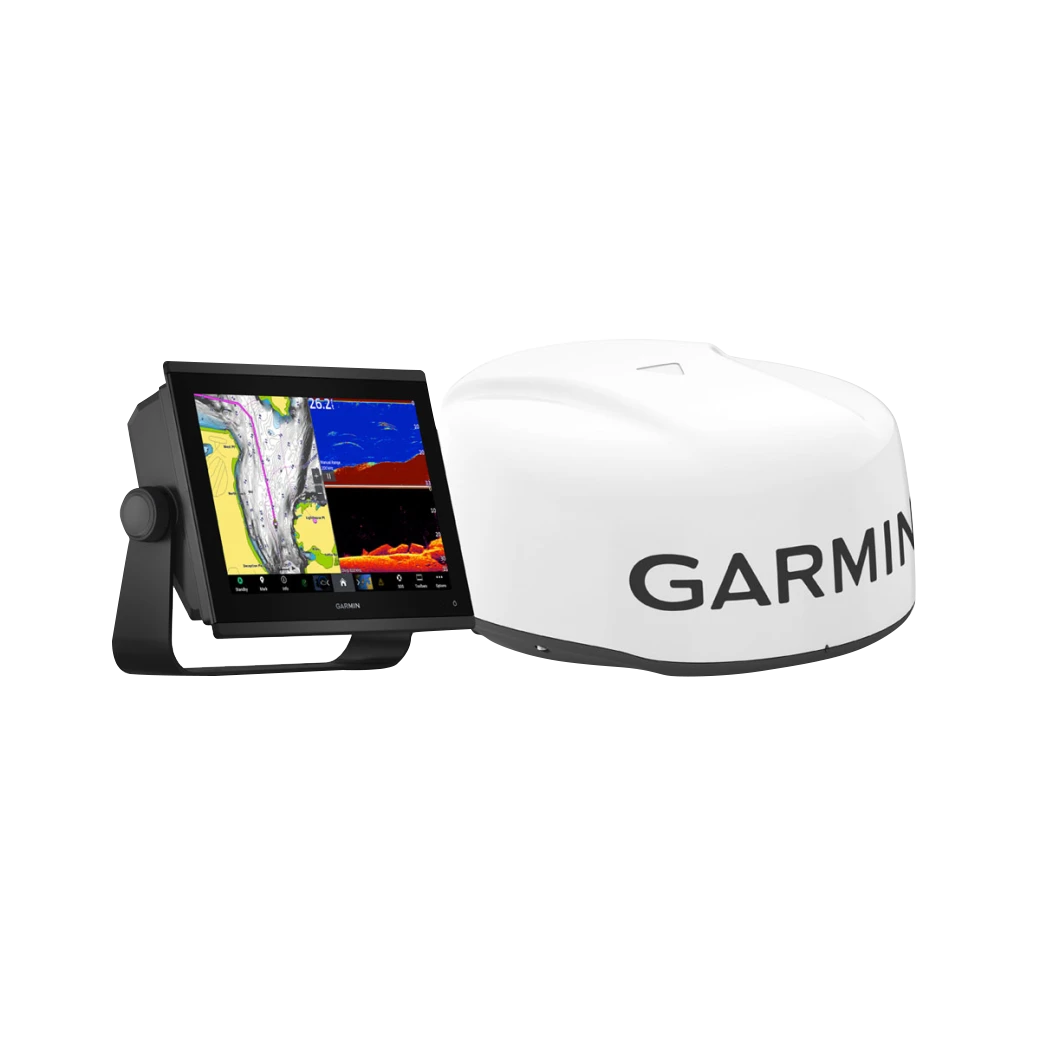

Garmin GPSMAP 1243xsv With GMR 18 HD3 Radome Chartplotter

Introduction

The Garmin GPSMAP 1243xsv paired with the GMR 18 HD3 Radome delivers integrated navigation and sonar capabilities in a 12-inch marine chartplotter built for commercial and serious recreational boating. This system combines high-definition scanning sonar with real-time weather radar integration, enabling you to make faster, more confident decisions on the water. Whether you're positioning for a catch, navigating coastal shallows, or managing multi-vessel operations, the GPSMAP 1243xsv centralizes control and delivers the situational awareness required for both safety and efficiency.

Key Features

• 12-inch high-resolution IPS display with edge-to-edge glass and sunlight-readable output for visibility in direct sunlight

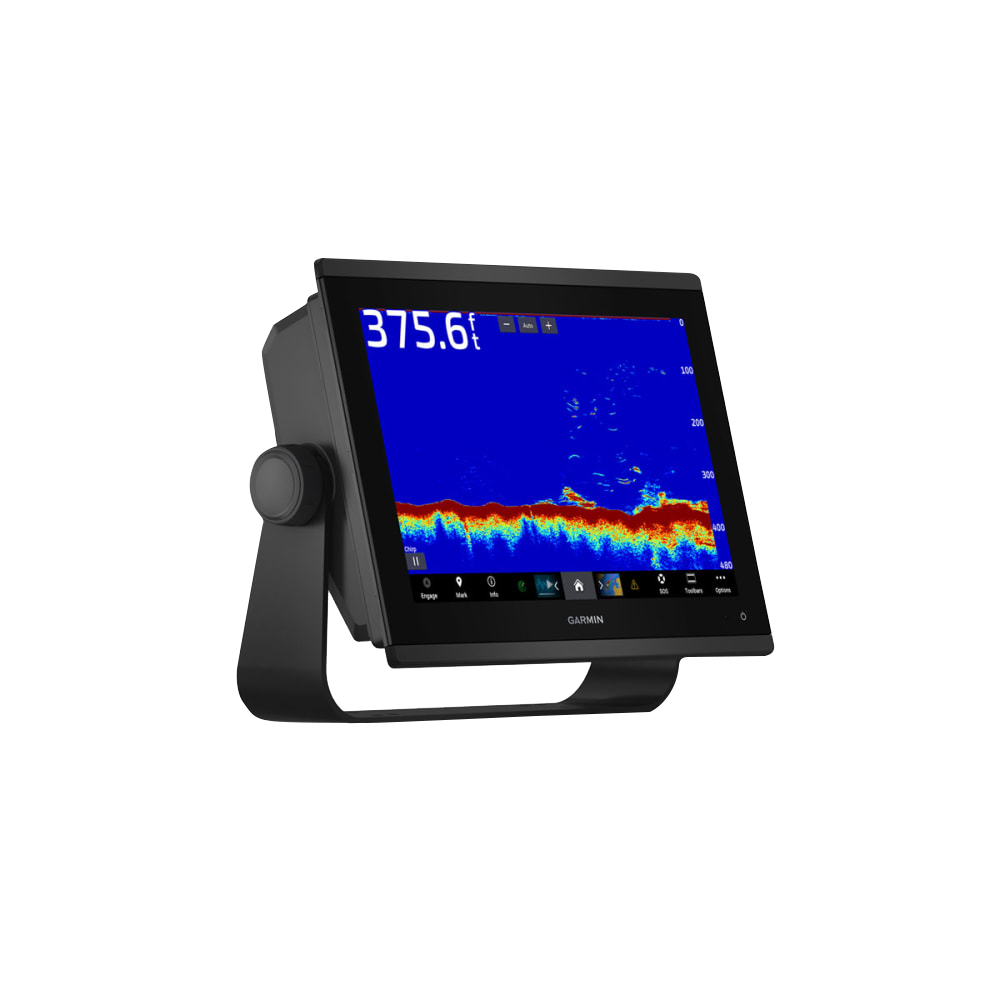

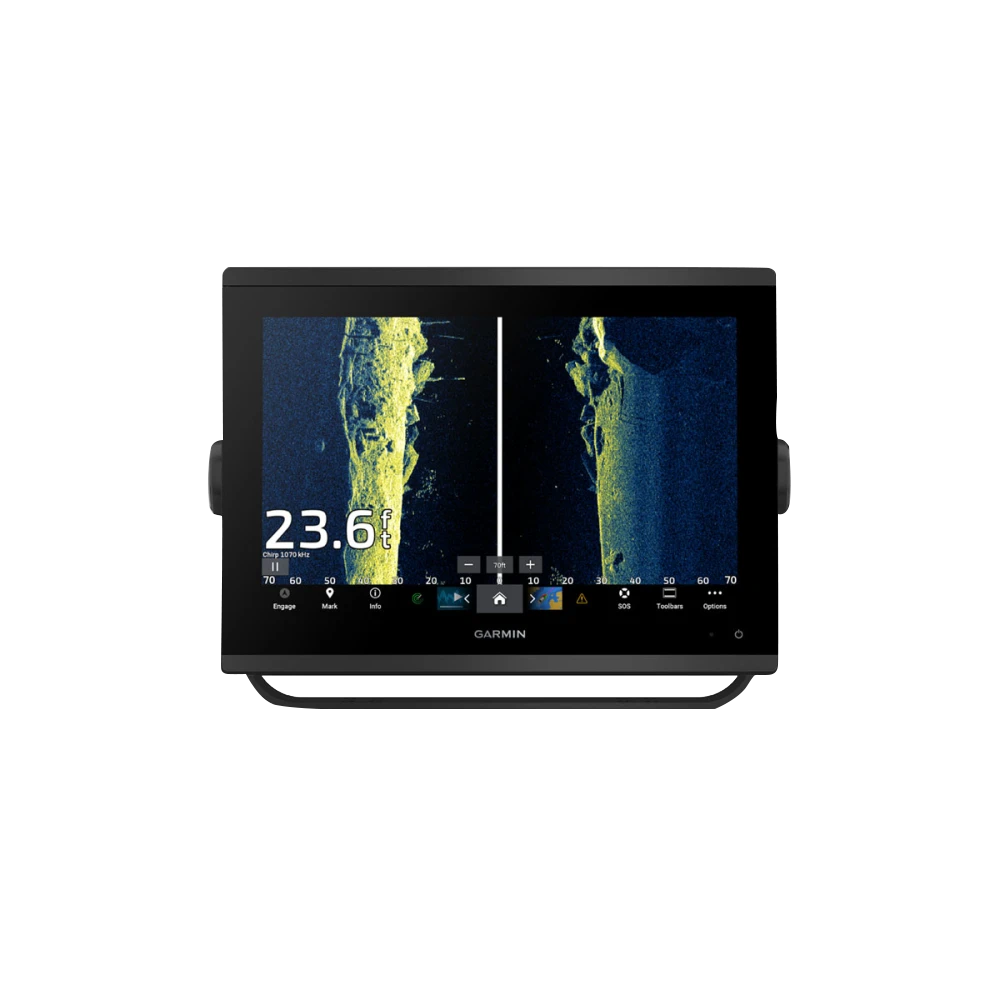

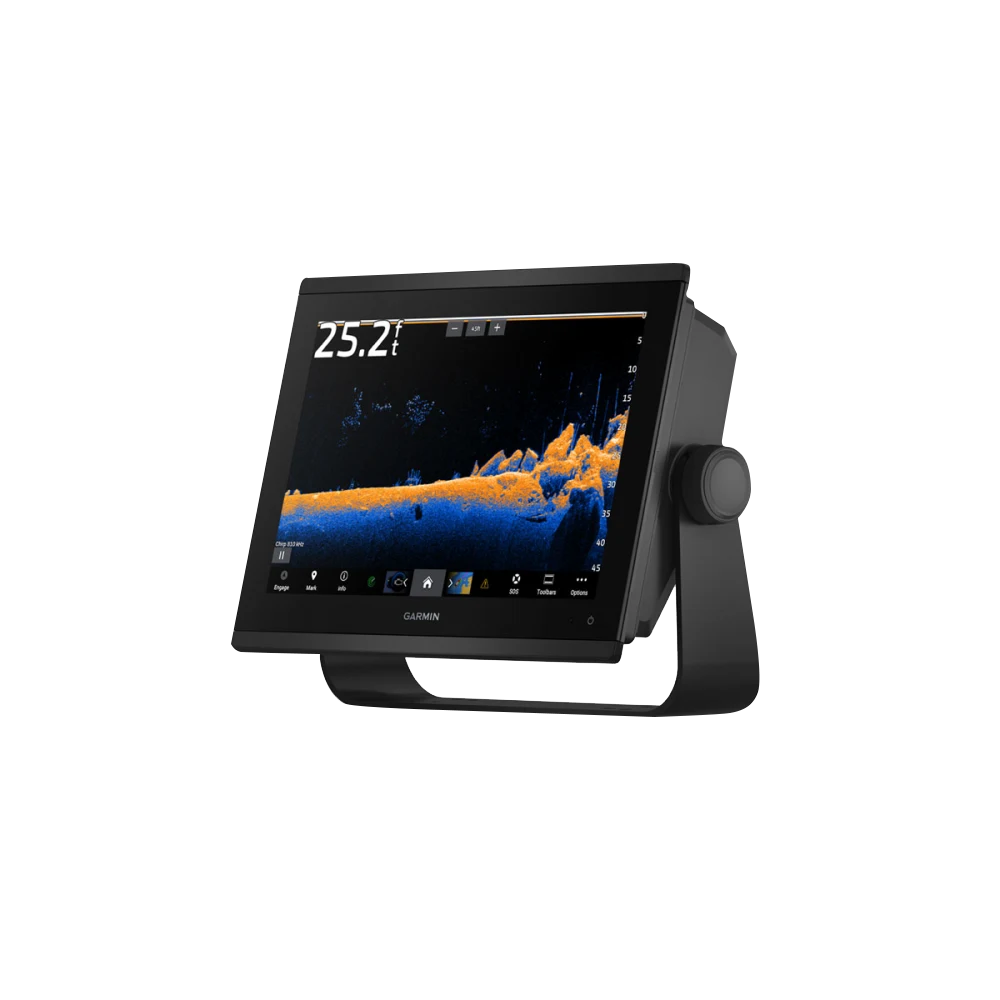

• Ultra High-Definition scanning sonar with SideVü and ClearVü technologies delivering target separation up to 50% better than traditional sonar systems
• Live sonar functionality providing real-time water column views around your vessel for precise fish and structure detection

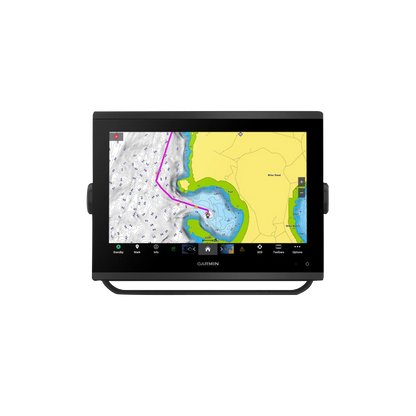

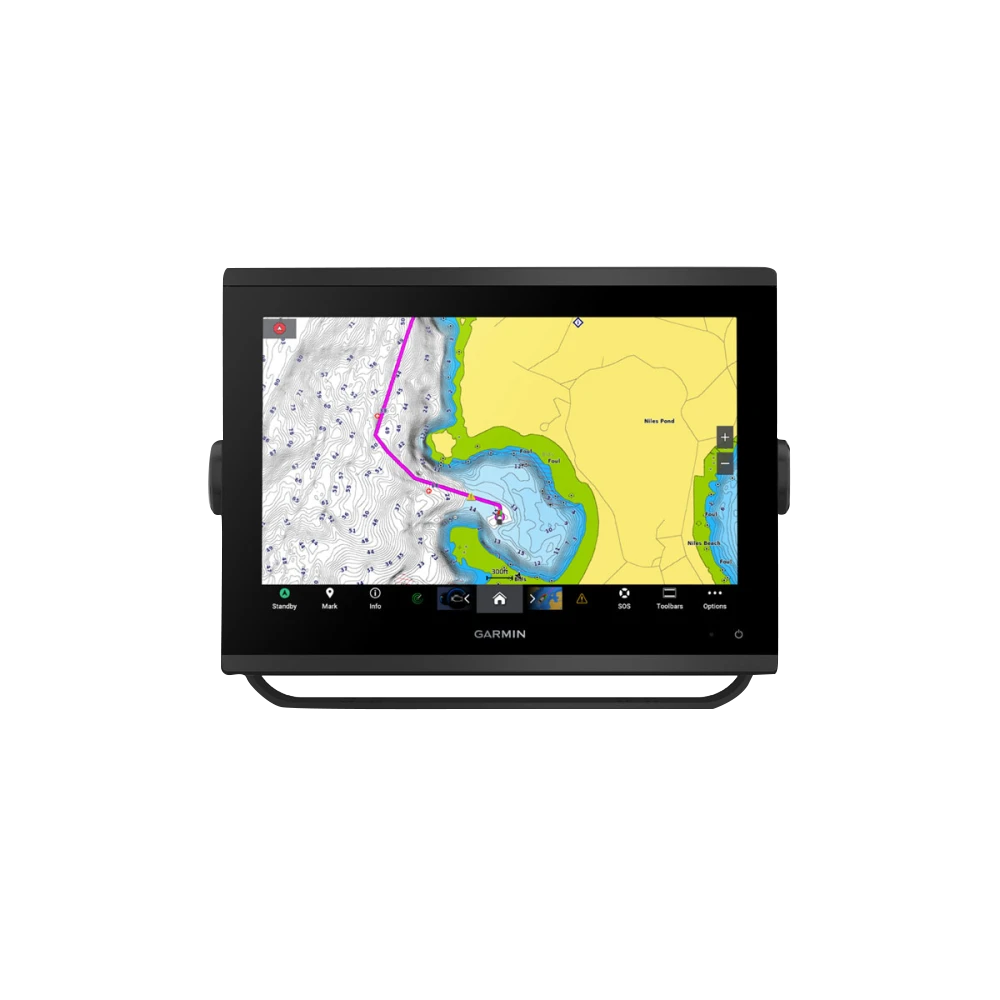

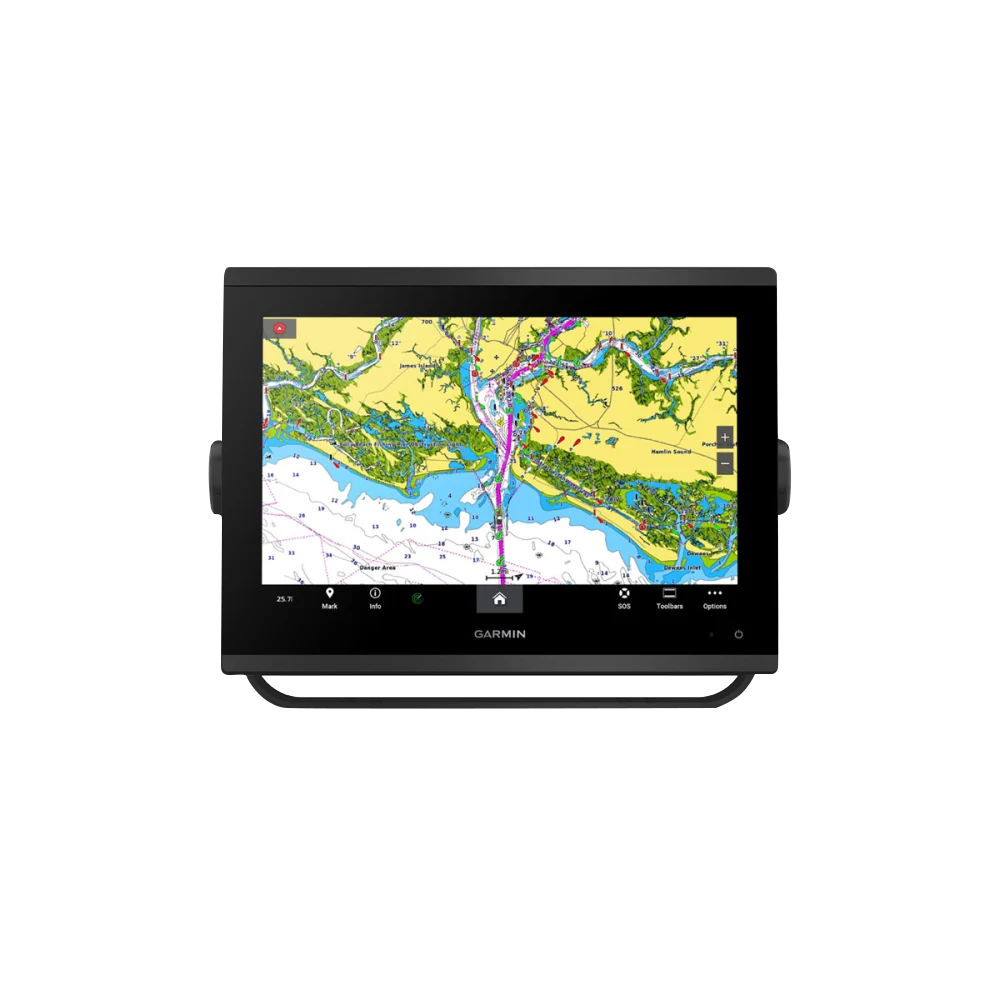

• Preloaded Garmin Navionics+ charts covering detailed coastal and inland waterways with regular update capability
• NMEA 2000 and Wi-Fi connectivity enabling seamless integration with networked marine systems and remote management via OneHelm digital switching

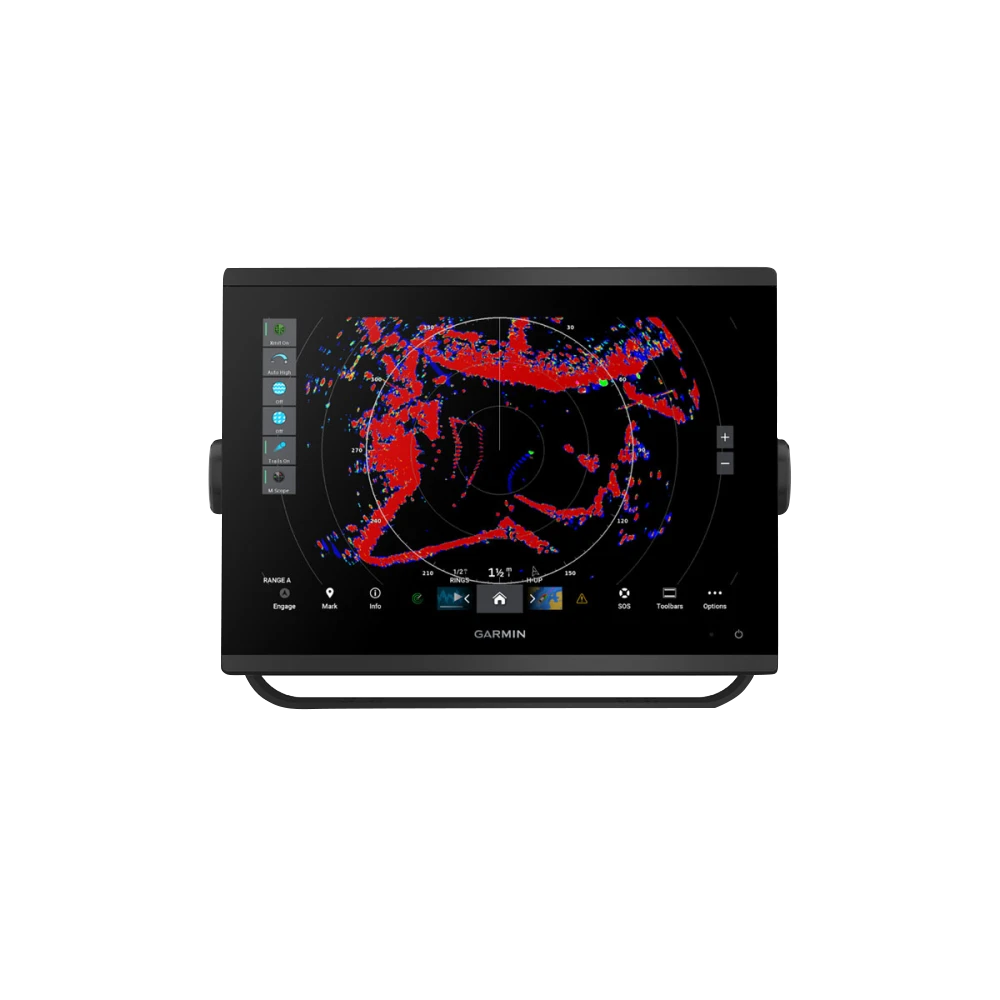

• GMR 18 HD3 Dome Radar integration for weather tracking, collision avoidance, and enhanced navigation capability in low-visibility conditions
• Matte black finish reducing glare and reflections in bright marine environments
• Flexible mounting solutions compatible with standard dash configurations and minimal structural modification

Data Insights

The combination of Ultra High-Definition sonar and live sonar technology positions the GPSMAP 1243xsv as a high-performance solution for structure-focused fishing and professional navigation. The 50% improvement in target separation compared to conventional sonar directly translates to better ability to distinguish individual fish, baitfish schools, and bottom contours. Live sonar delivers instantaneous water-column imaging, eliminating the interpretation lag inherent in traditional frequency-based sonar and enabling anglers to watch fish respond to lures in real time. The integrated GMR 18 HD3 radar adds weather discrimination and vessel tracking capabilities, critical for coastal and offshore operations where conditions change rapidly.

Usage Instructions

Mount the GPSMAP 1243xsv in a location with minimal obstruction above the waterline to optimize radar performance and ensure clear visibility of the display from your normal operating position. Connect sonar transducers, radar antenna, and additional network devices via NMEA 2000 backbone or direct Wi-Fi for centralized control through the OneHelm interface. Activate the OneChart feature within the device menu to automatically download the latest Garmin Navionics+ chart updates, ensuring your navigation database reflects current bottom composition, hazards, and coastal detail. Configure sonar frequencies and live sonar parameters according to water depth and target species for optimal performance.

Design & Material

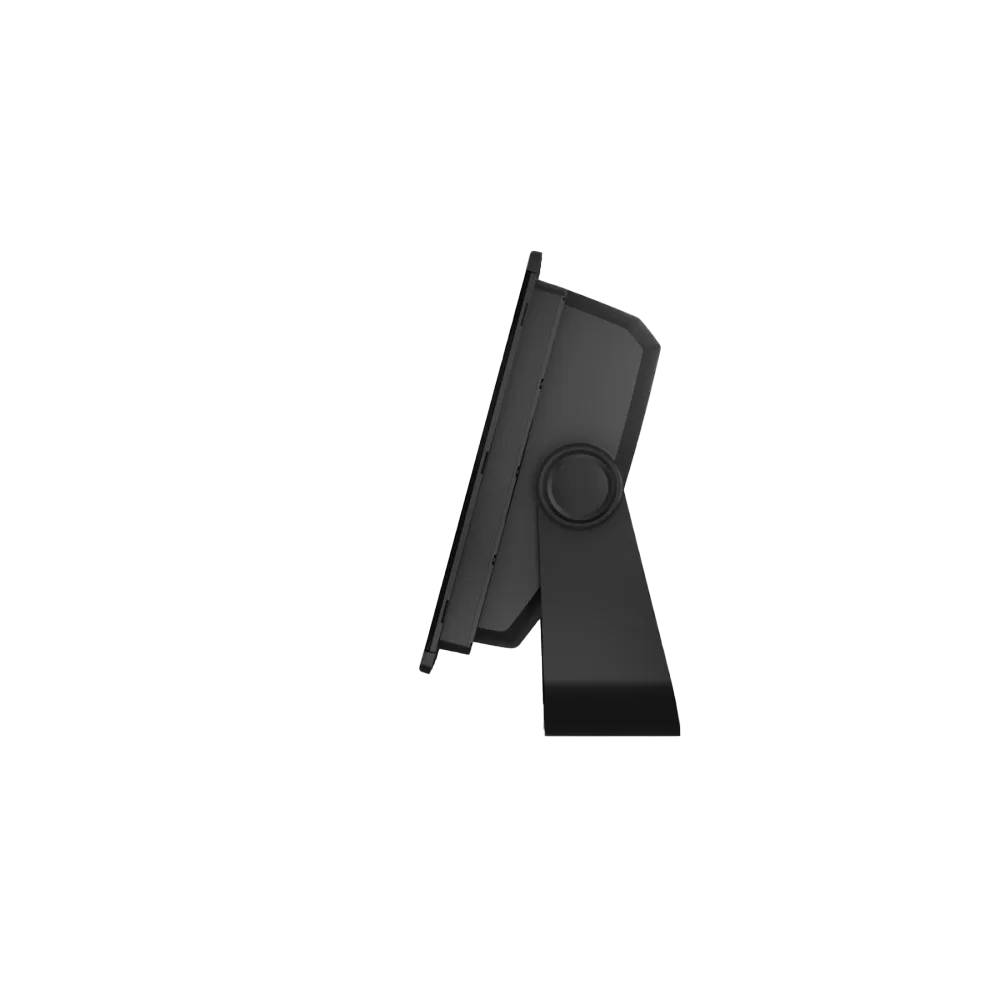

The GPSMAP 1243xsv employs a modern slimline chassis with an edge-to-edge glass front that maximizes display real estate while maintaining a compact footprint suited to varied console configurations. The design prioritizes durability and visibility in demanding marine environments where salt spray, vibration, and intense sunlight are constants.

• High-quality tempered glass face providing scratch and impact resistance with superior optical clarity
• Matte black composite housing reducing glare and reflections in bright water conditions
• Weatherproof construction rated for exposure to salt spray and washdown without corrosion or sealing failure

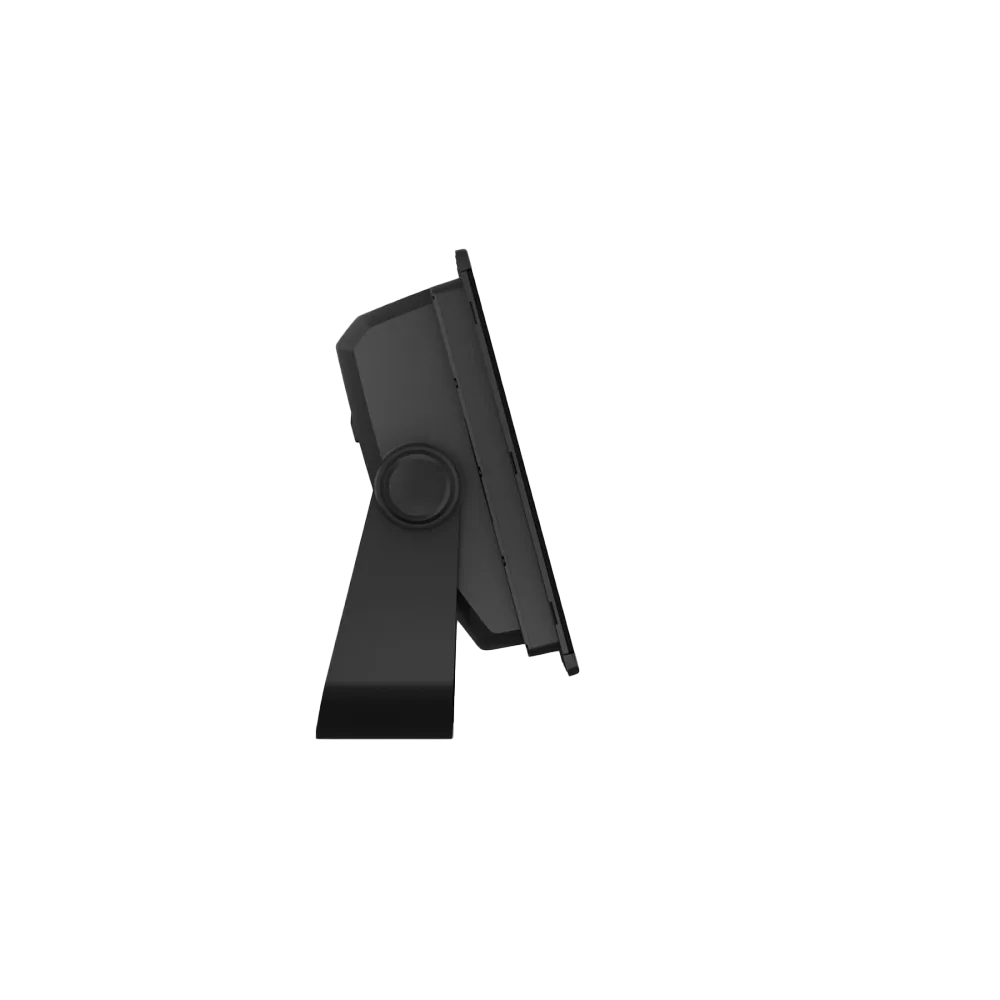

• Low-profile mounting bracket system compatible with both flush dash integration and elevated console positioning
• Lightweight design enabling installation without additional structural reinforcement or power system upgrades

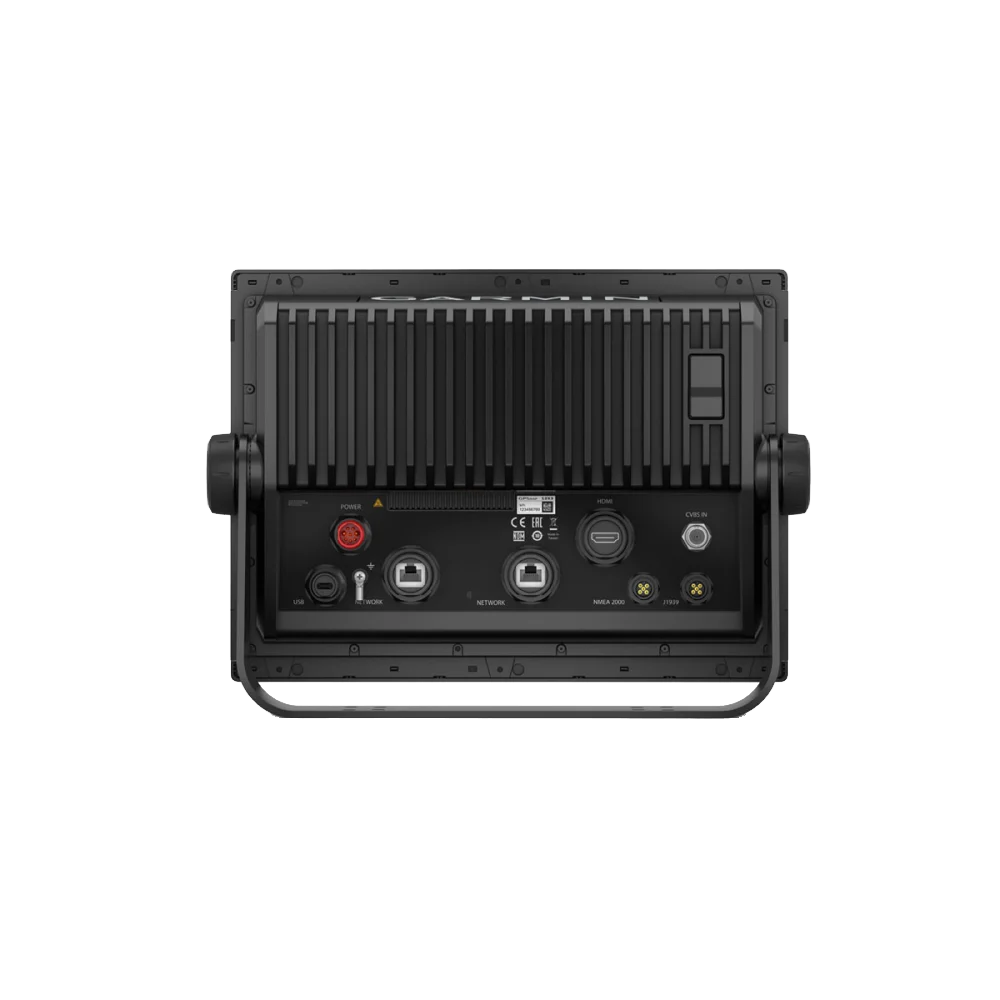

• Integrated cable management and recessed connector placement protecting marine plugs and reducing snag hazards

Final Verdict

The Garmin GPSMAP 1243xsv with GMR 18 HD3 Radome represents a strategic marine electronics investment for operators who require integrated sonar, radar, and charting in a single intuitive interface. The 50% target separation advantage, live sonar innovation, and robust weather radar make this system invaluable for both structure fishing and professional vessel operations. Network integration via NMEA 2000 and Wi-Fi eliminates the need for redundant displays and reduces total system cost. Invest in the GPSMAP 1243xsv to gain the on-water confidence and operational efficiency that advanced marine technology delivers.
