Garmin GPSMAP 1523xsv Marine Chartplotter with SideVu, ClearVu, and Traditional CHIRP Sonar

Introduction

The Garmin GPSMAP 1523xsv delivers professional-grade marine navigation and sonar capabilities in a 15-inch ultrawide display that outperforms traditional 9-inch chartplotters by 74% in screen width. This integrated chartplotter combines ClearVu and Traditional CHIRP sonar technologies with high-definition mapping and built-in radar to give serious boaters and fishing enthusiasts real-time underwater imaging, precise navigation, and advanced vessel control from a single screen.

Key Features

• 15-inch ultrawide edge-to-edge glass touchscreen with superior pixel density for enhanced underwater and surface detail visibility

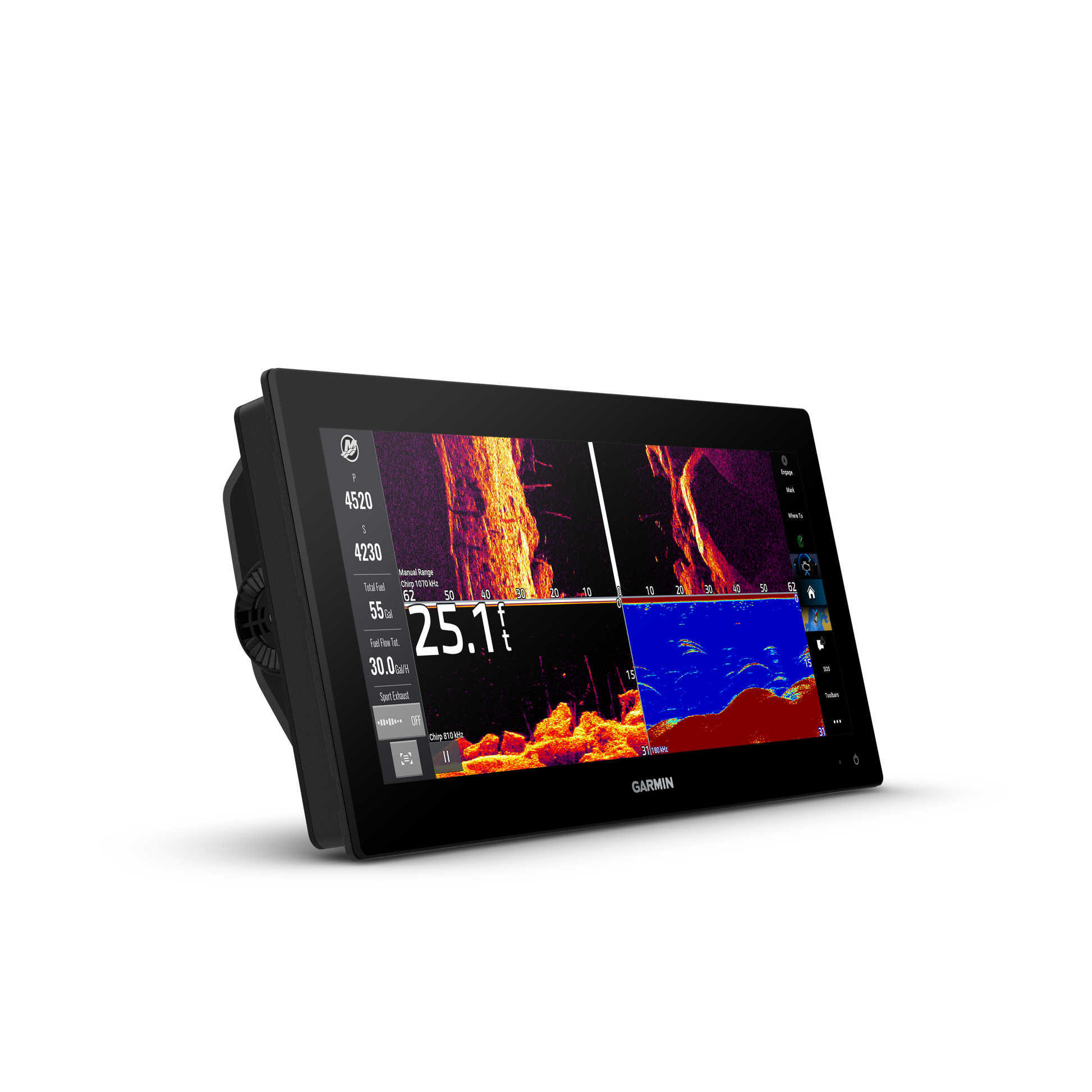

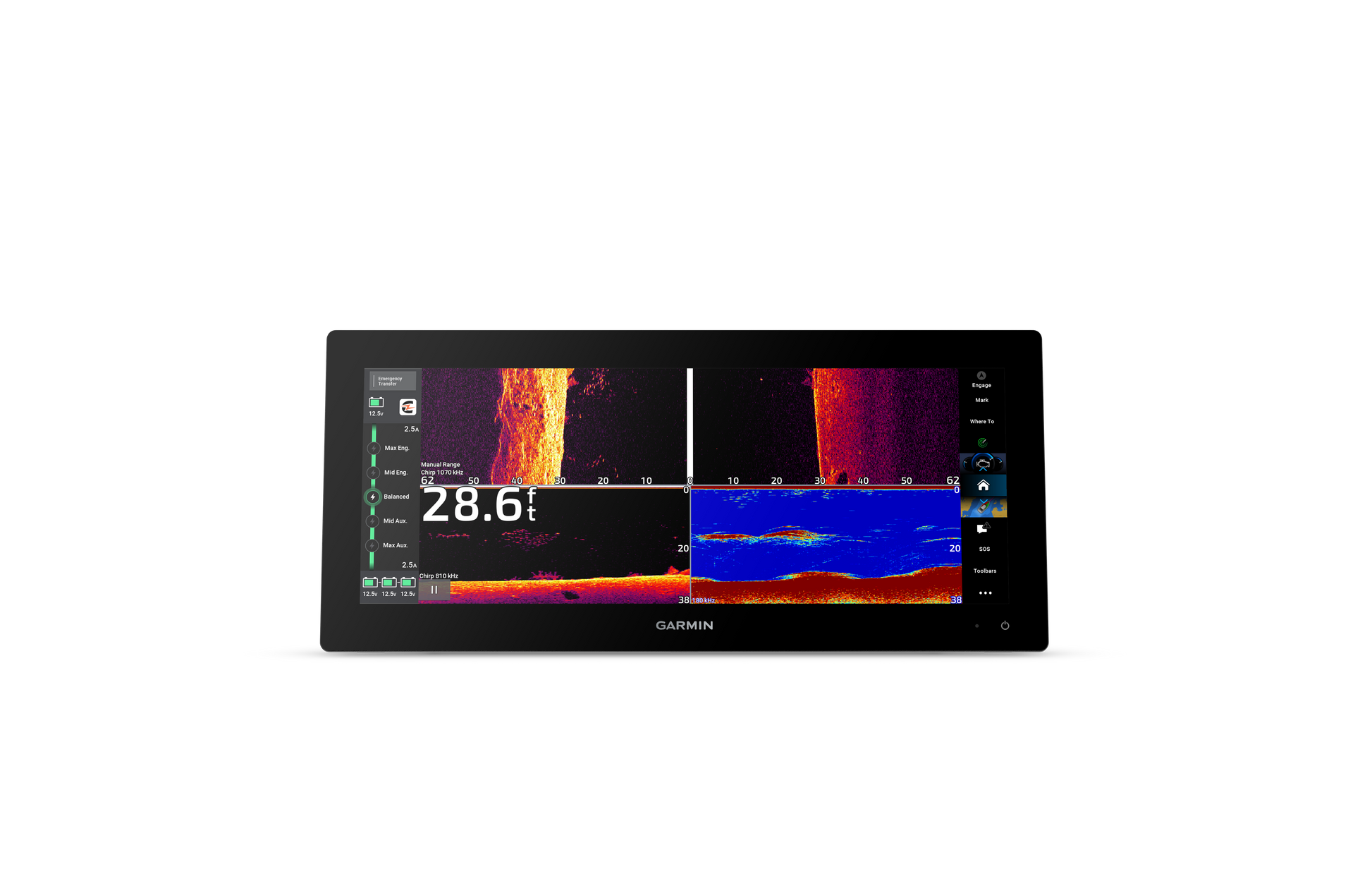

• SideVu, ClearVu, and Traditional CHIRP sonar modes with up to 90% accuracy in fish and structure detection
• Integrated GMR 18 HD3 Radome for advanced marine radar capabilities and weather monitoring

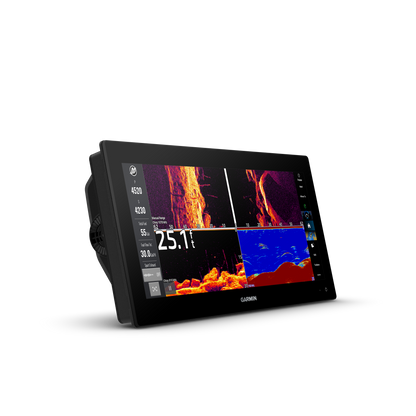

• Multi-engine compatibility enabling independent control of vessel systems across different powerplant configurations
• NMEA 2000 certification for full integration with autopilots, VHF radios, and other marine electronics
• Pre-installed microSD card slot with worldwide basemap and support for expanded Navionics+ chart layers

Data Insights

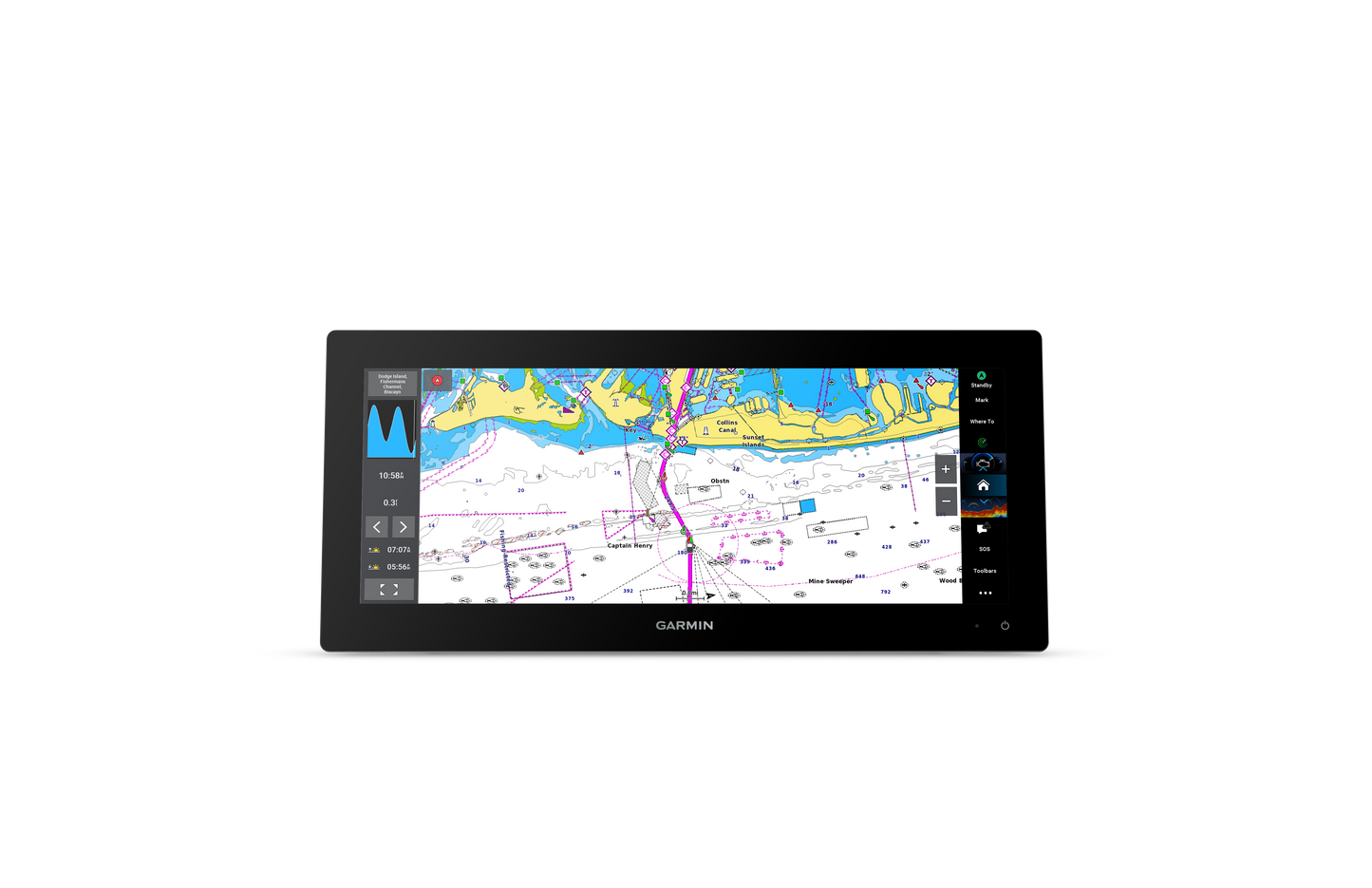

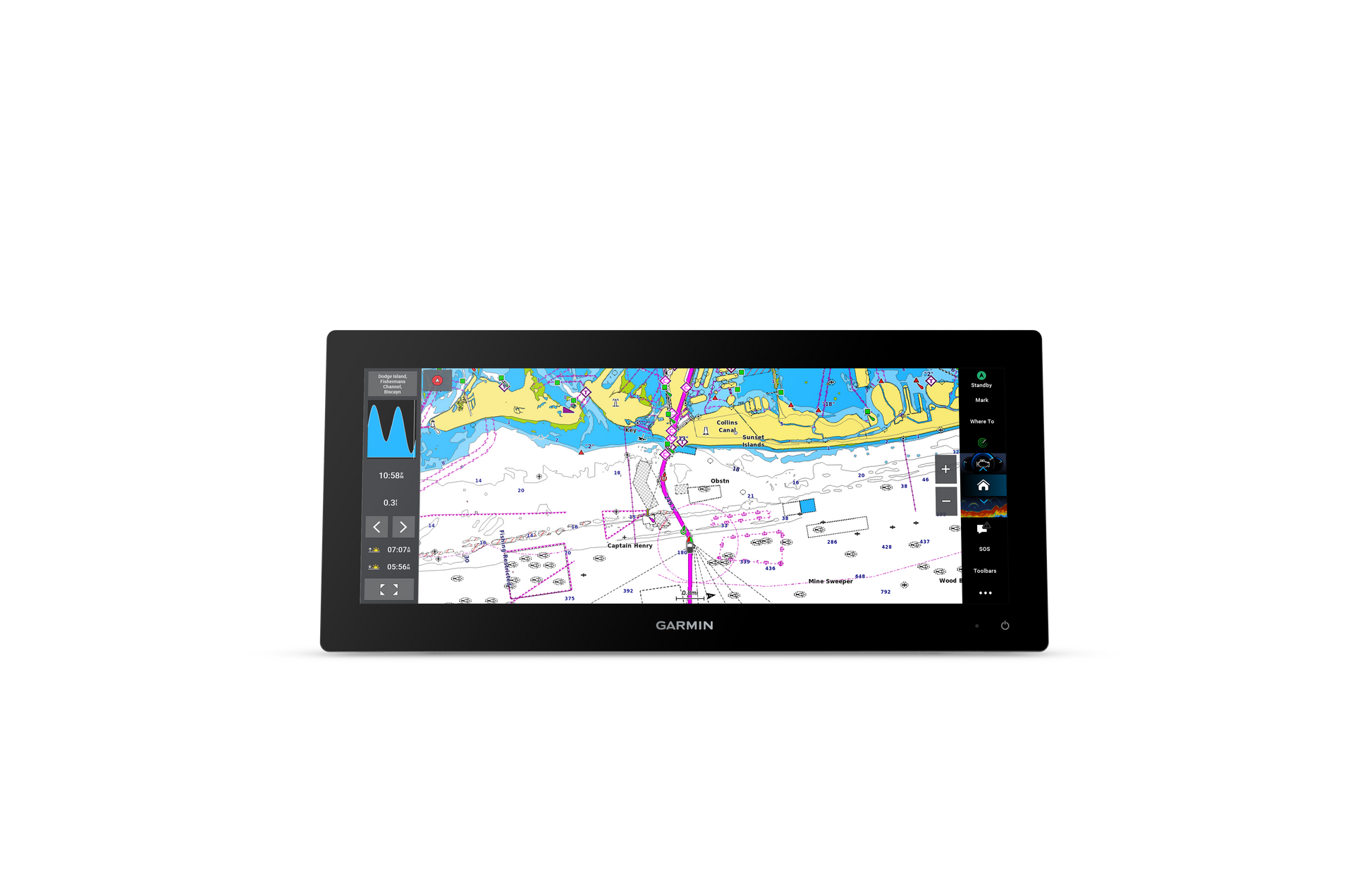

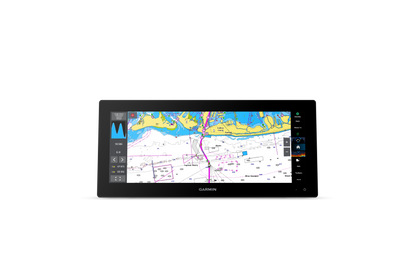

The GPSMAP 1523xsv achieves up to 90% accuracy in fish detection through its advanced sonar architecture, significantly reducing the guesswork in locating productive fishing grounds. High-definition mapping combined with real-time sonar overlay reduces navigation errors and improves route planning, while the 74%-wider display compared to standard 9-inch units provides enhanced situational awareness across weather patterns, bathymetry, and surface conditions without requiring multiple screen references.

Usage Instructions

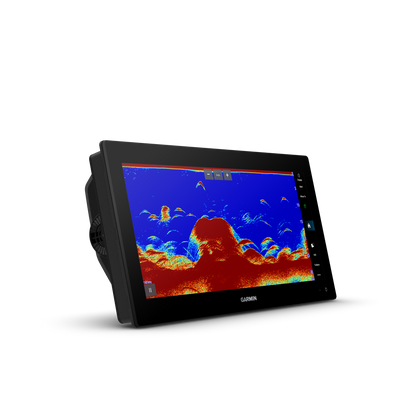

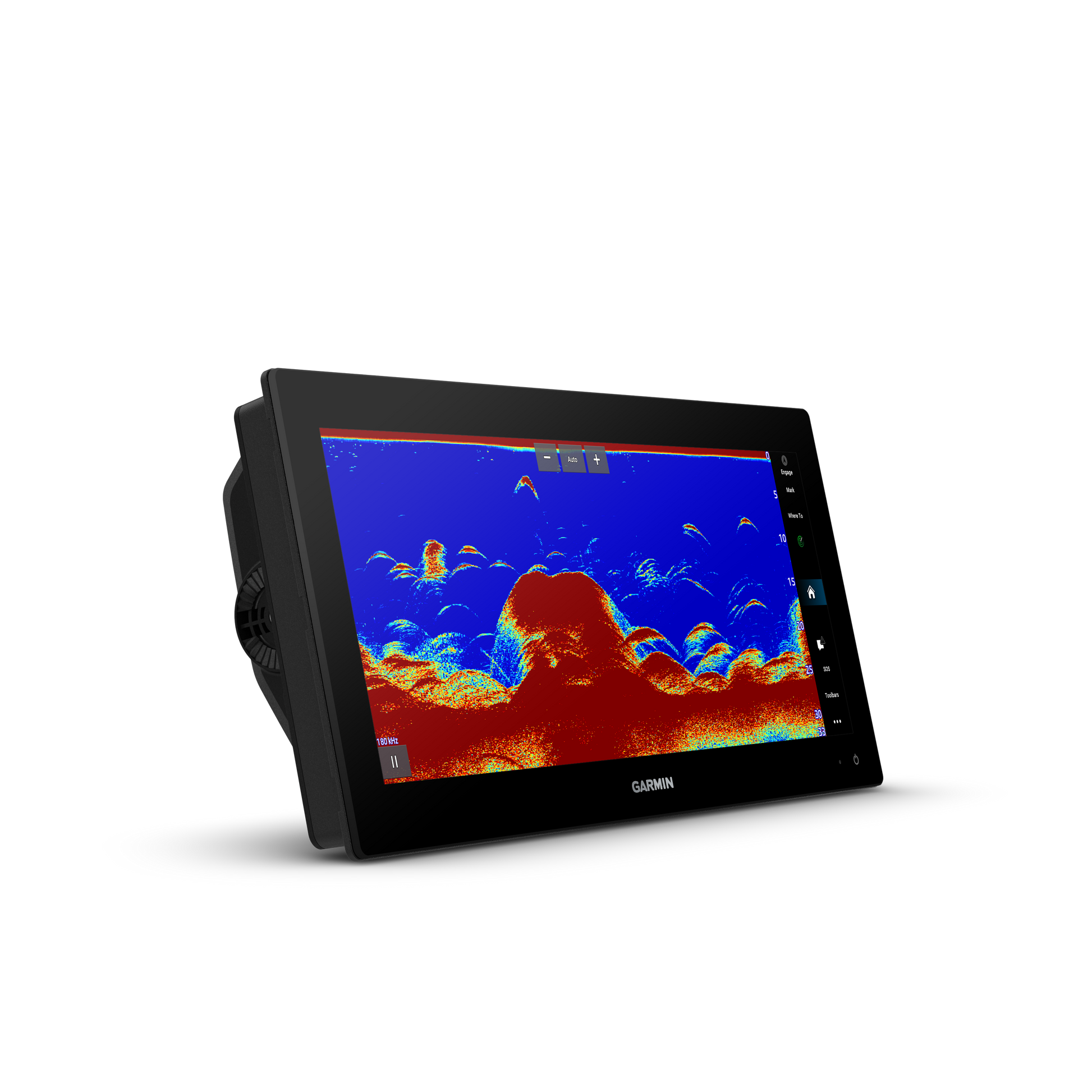

Mount the unit securely using the provided bail or flush-mount kit, ensuring stable placement above the waterline. Power on the device and complete the initial setup wizard to configure your vessel profile and sonar preferences. Select ClearVu mode for detailed high-frequency imaging of structure, baitfish, and bottom composition, or Traditional CHIRP for broader water column coverage and deeper penetration. Regularly update your basemap and chart data via the microSD card slot to maintain accurate waypoint alignment and navigational safety.

Design and Material

The GPSMAP 1523xsv combines a sleek black housing with intuitive button placement along the right side, optimizing both aesthetics and one-handed operation in rough seas. The design prioritizes durability and marine functionality without sacrificing visual appeal or usability in bright sunlight or darkness.

• Marine-grade aluminum and composite construction rated for saltwater corrosion resistance and impact durability
• Edge-to-edge tempered glass display with anti-glare coating for visibility in direct sunlight and low-light conditions

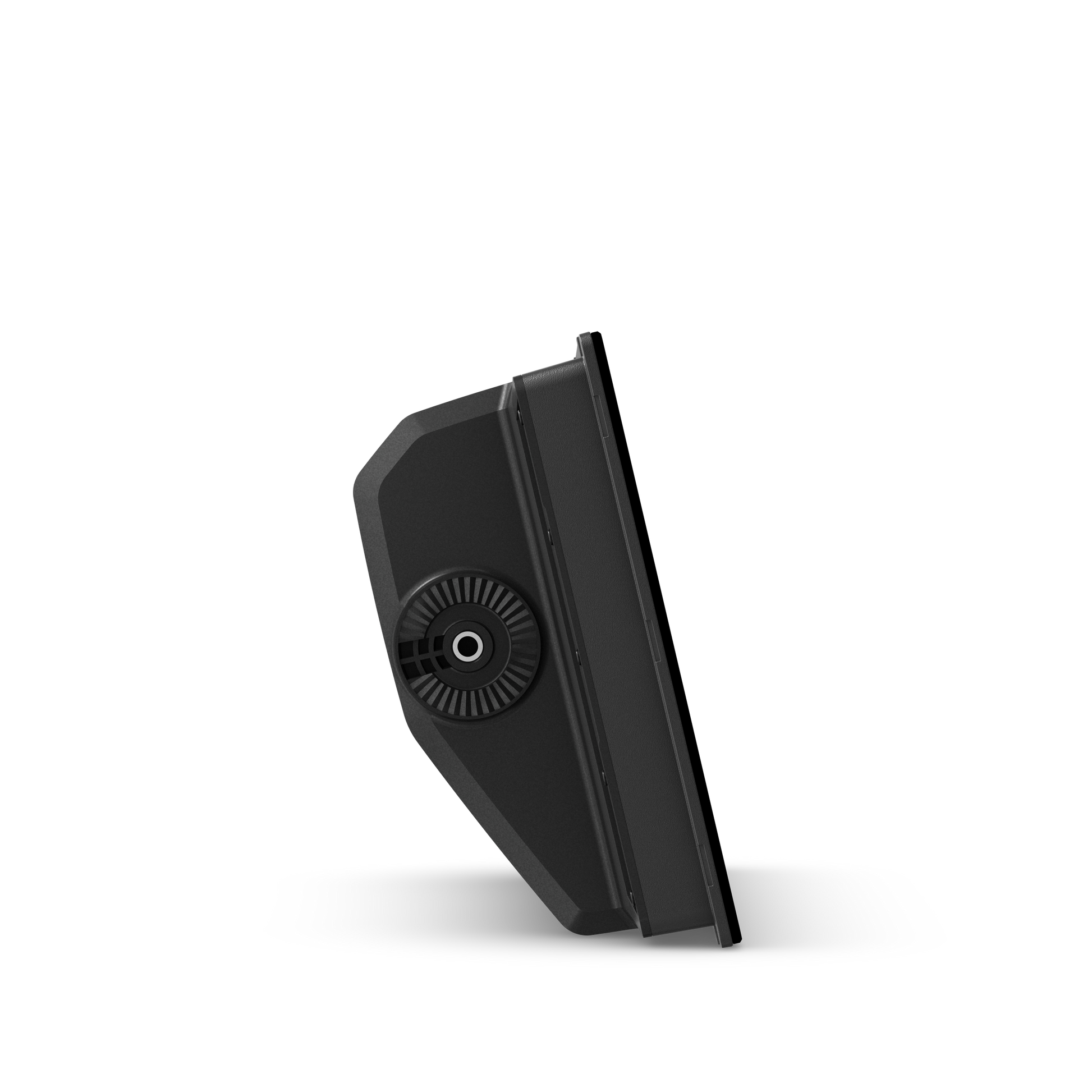

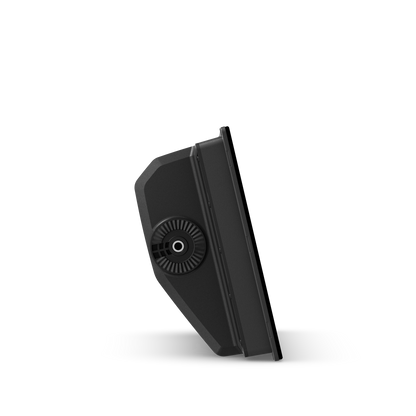

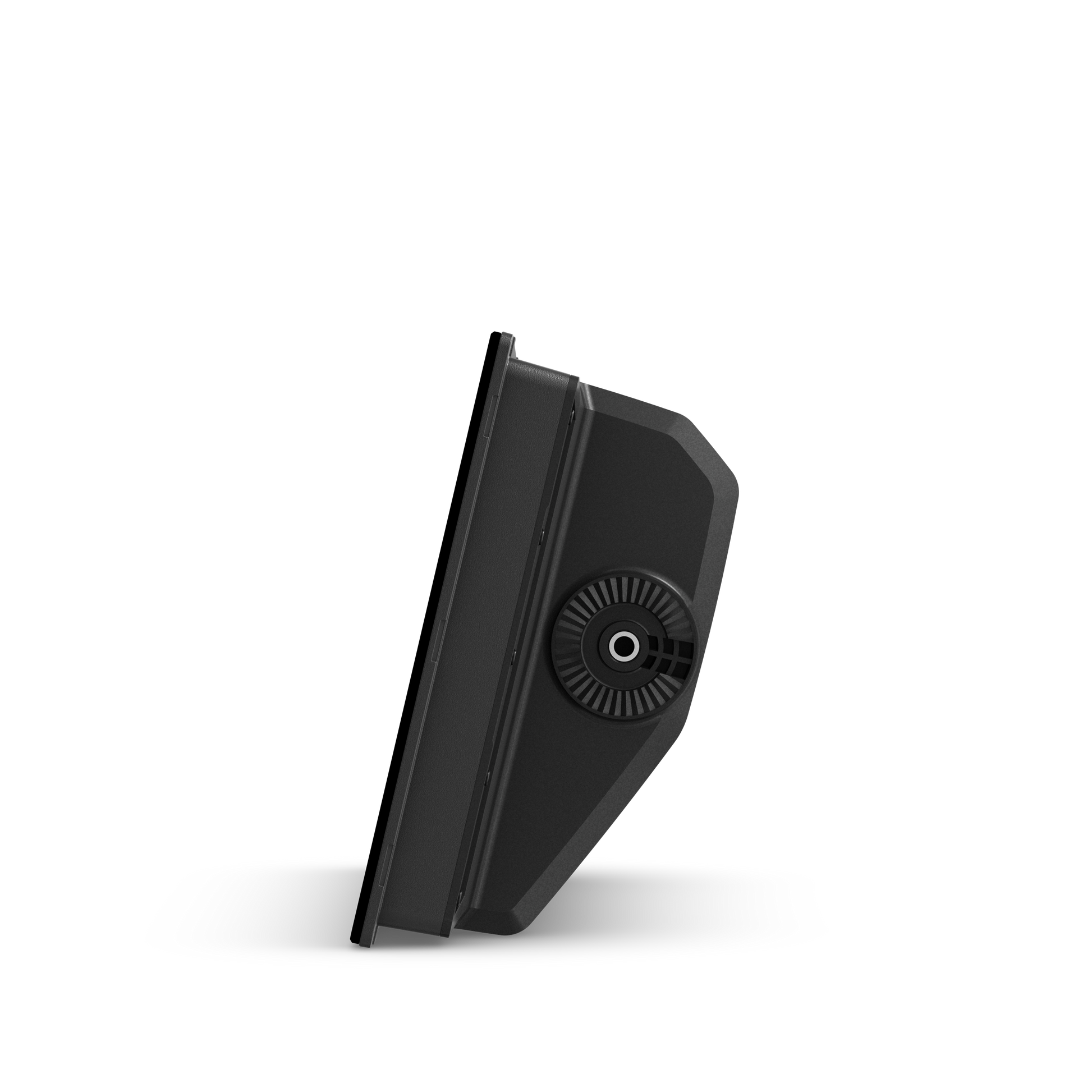

• Integrated flush-mount bracket system for seamless cockpit integration without external antennas obstructing sight lines
• Sealed touchscreen interface with tactile feedback and gloved-hand operation support in cold or wet weather
• Weather-resistant casing with ingress protection rated for spray, rain, and occasional submersion during boarding conditions
• Included protective cover and mounting hardware for rapid installation and long-term environmental protection

Final Verdict

The Garmin GPSMAP 1523xsv (model 010-03855-00) combines navigation precision, advanced sonar imaging, and weather monitoring into a single display that eliminates the need for multiple electronics systems. Its 15-inch screen, 90% fish detection accuracy, and seamless NMEA 2000 integration make it essential for recreational anglers and professional captains alike. Order yours today!
