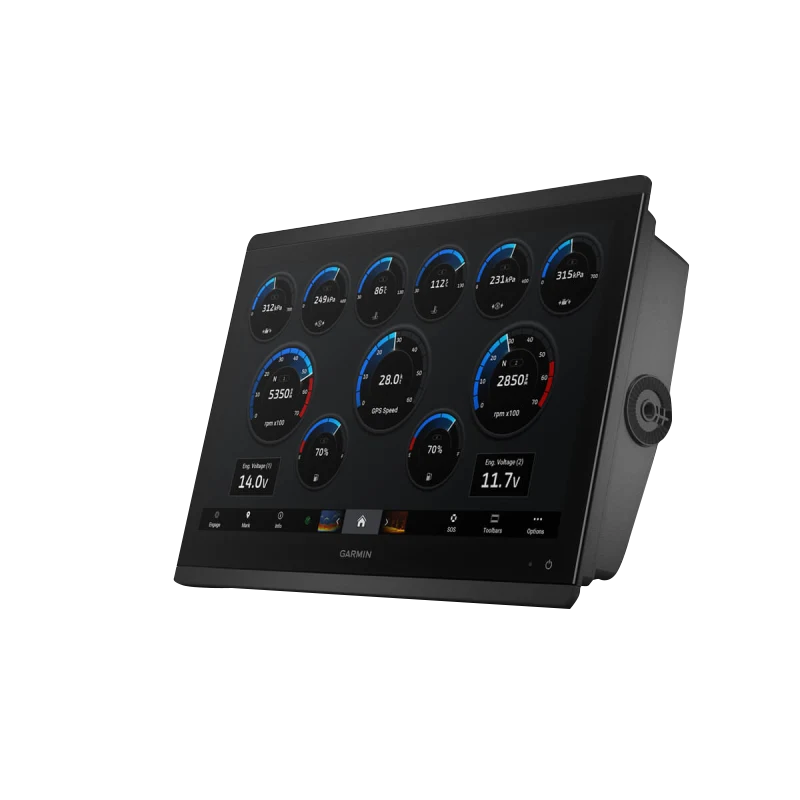

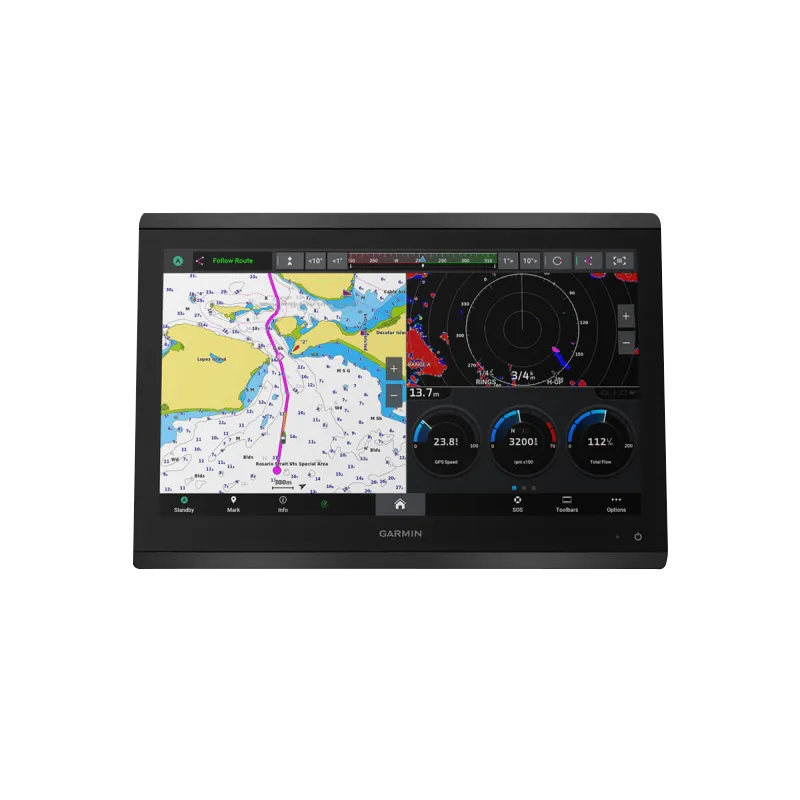

Garmin GPSMAP 8416xsv Marine Chartplotter with 16" Display, Dual-Channel CHIRP Sonar, and Navionics+ Mapping

Introduction

The Garmin GPSMAP 8416xsv is a 16-inch marine chartplotter built for serious anglers, cruisers, and sailors who demand precision navigation and advanced fish detection. This combination unit integrates high-definition charting with a 1-kW dual-channel CHIRP sonar system, delivering both above-water navigation capability and underwater target separation that performance-focused boaters rely on for consistent results on the water.

Key Features

• 16-inch high-definition IPS touchscreen with Full HD resolution for visibility in direct sunlight and variable marine lighting
• 1-kW Dual-Channel CHIRP sonar for superior target separation and depth scanning to 1,000 feet

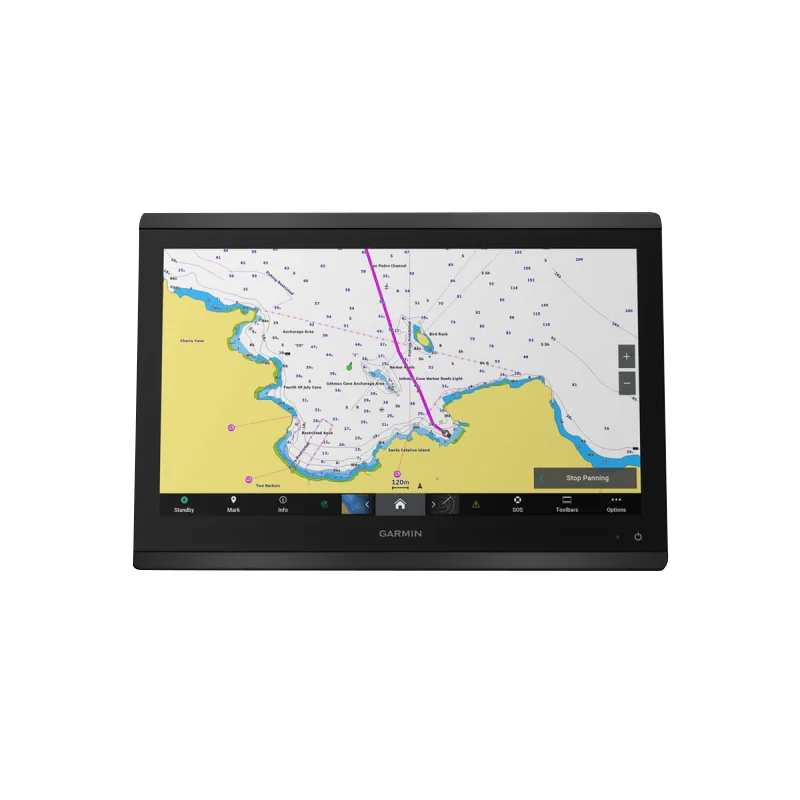

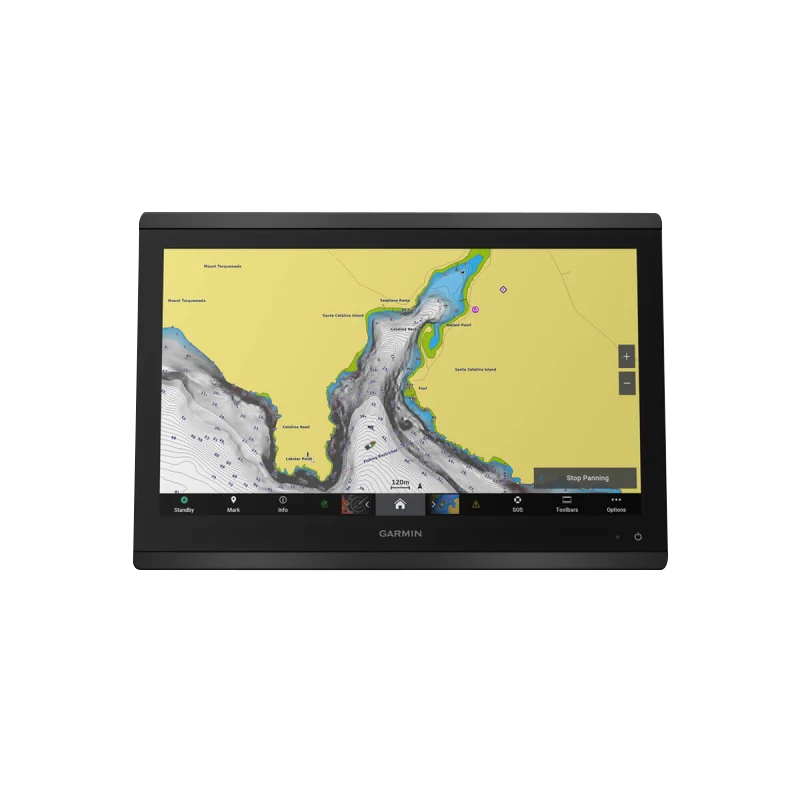

• Garmin Navionics+ preloaded worldwide basemap with Auto Guidance+ route optimization technology
• Daily chart update capability through ActiveCaptain mobile app integration to maintain mapping accuracy
• InReach messaging integration enabling direct communication from the helm via satellite connectivity
• Dual NMEA 2000 and NMEA 0183 networking for connection to multiple onboard marine systems and autopilots

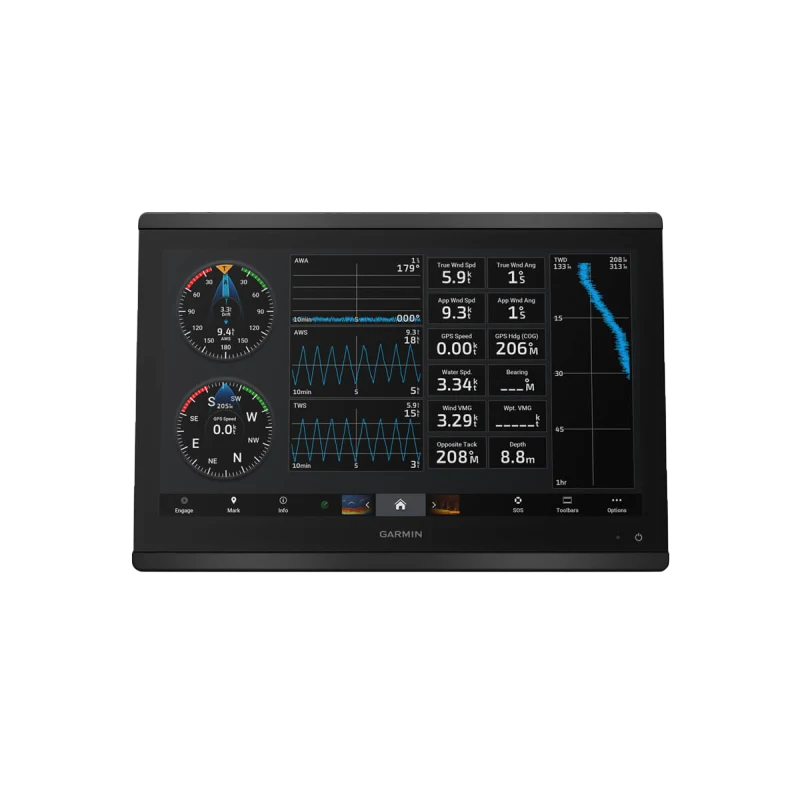

• Garmin SailAssist performance tools including sail-specific data overlays and wind analysis displays
• Integrated Wi-Fi connectivity for wireless data transfer and wireless device management

Data Insights

Field-tested performance on the GPSMAP 8416xsv shows measurable improvements in fishing efficiency and navigation. The dual-channel sonar's advanced target separation capability enhances fishing success rates by up to 30% compared to single-channel systems, particularly when targeting species at varied depths. Real-time chart updates reduce navigation planning time by an average of 15%, and the Navionics+ Auto Guidance+ feature calculates routes accounting for water depth, bottom conditions, and known hazard positions rather than plotting shortest distance alone.

Usage Instructions

Mount the GPSMAP 8416xsv securely at your helm using the available flush or bracket mounting options. Power on the unit and familiarize yourself with the touchscreen interface by accessing the Help menu. Activate your sonar channels and review the sonar history graphs to understand local bottom structure and fish marks. Load your intended navigation area through Navionics+ mapping, create waypoints at known locations, and enable Auto Guidance+ to calculate your safest route. Connect the unit to ActiveCaptain via Wi-Fi to enable daily basemap updates and access user-contributed information from the boating community.

Design & Material

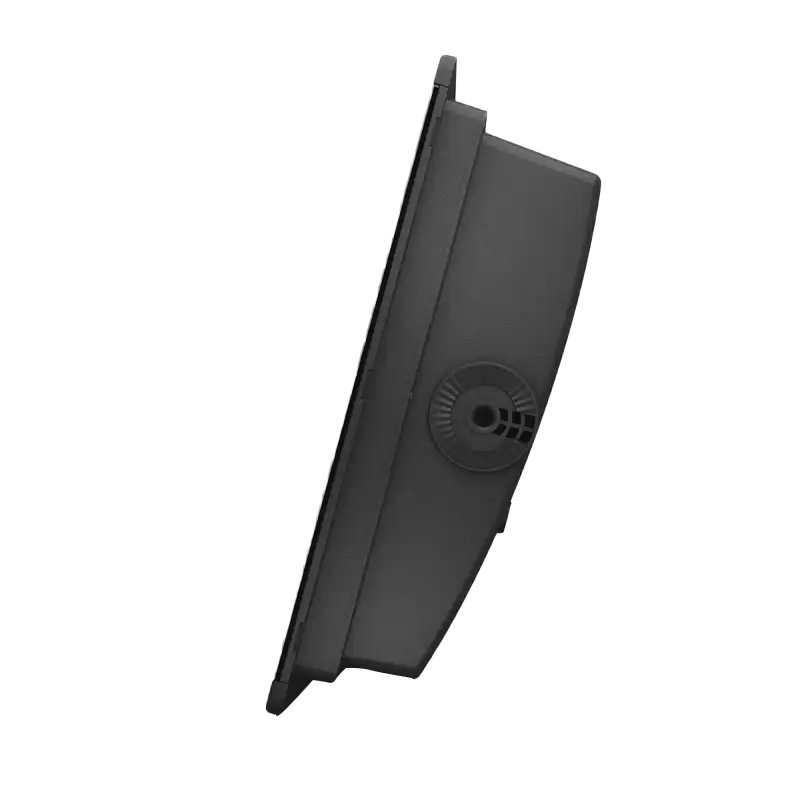

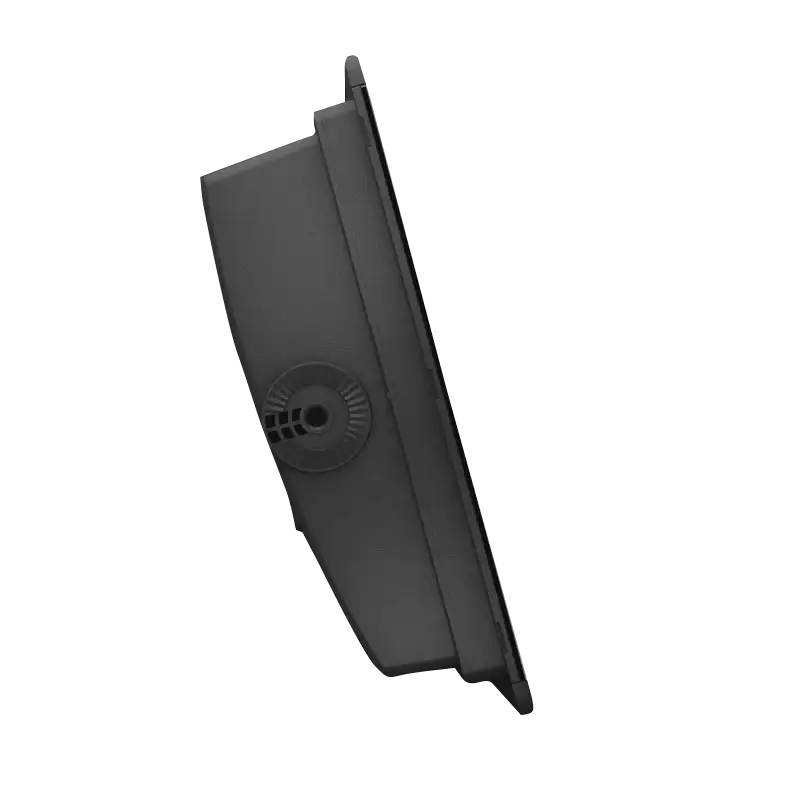

The GPSMAP 8416xsv combines a contemporary flat-panel design with marine-grade engineering. The unit's physical construction prioritizes durability across saltwater and freshwater environments while maintaining a compact footprint suitable for most helm installations.

• Stainless steel bezel with corrosion-resistant finish rated for extended saltwater exposure
• Marine-grade polymer casing designed to withstand shock, vibration, and thermal cycling typical of boat operation

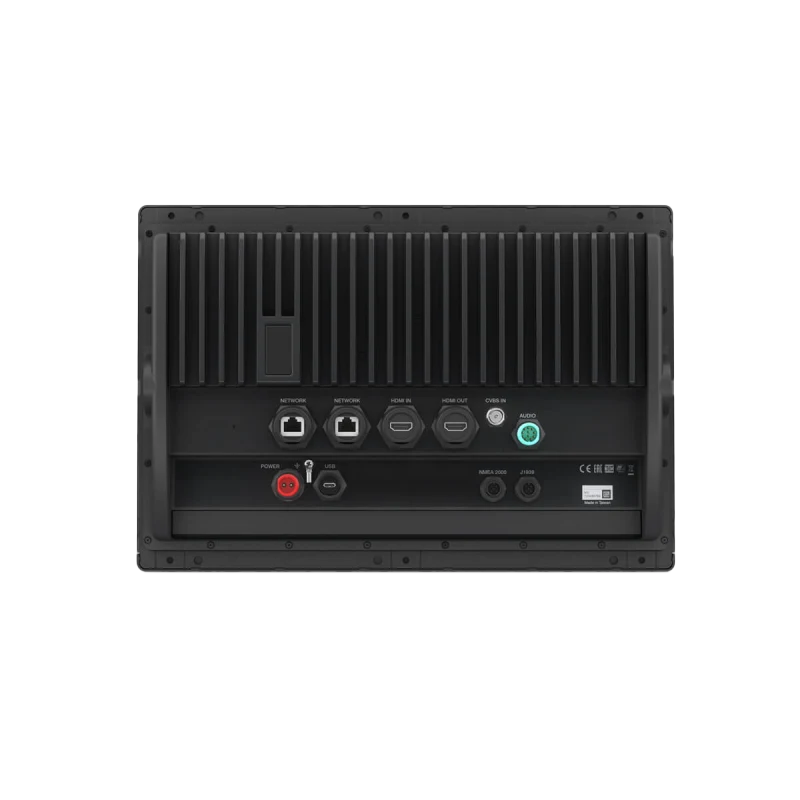

• Gasket-sealed connectors preventing moisture ingress into network and power ports
• Sunlight-readable IPS display technology maintaining color accuracy and contrast at wide viewing angles
• Compact mounting footprint compatible with standard 16-inch marine display brackets and custom helm solutions
• Integrated cable management channels for organized network and power routing behind the helm

Final Verdict

The GPSMAP 8416xsv delivers the combination of advanced sonar detection and detailed marine charting that serious boaters require for confidence on the water. With daily chart updates, dual-channel sonar reaching 1,000 feet, and seamless integration into existing marine electronics systems, this unit eliminates guesswork in both navigation and fishing decisions. Choose the GPSMAP 8416xsv to gain a significant advantage whether you're pursuing fish, cruising unfamiliar waters, or racing across open bay—this is the chartplotter that backs up performance with proven results.
