Garmin GT56UHD-TH All-in-One Fish Finder Transducer

Introduction

The Garmin GT56UHD-TH is a comprehensive sonar solution that consolidates three distinct imaging technologies into a single marine transducer. By combining Ultra High-Definition ClearVü downward scanning, Ultra High-Definition SideVü wide-angle coverage, and High Wide CHIRP traditional sonar in one unit, this transducer eliminates the need for multiple devices while delivering exceptional underwater clarity and fish detection across a full range of fishing scenarios. The GT56UHD-TH scans depths to 244 meters (800 feet) and supports multiple frequency bands, making it effective in everything from shallow inland lakes to offshore saltwater environments.

Key Features

• Ultra High-Definition ClearVü sonar with downward-facing scanning element for detailed images directly beneath your vessel
• Ultra High-Definition SideVü sonar offering up to 20% greater range at 1,000 kHz for expansive side-to-side coverage
• High Wide CHIRP traditional sonar with exceptional fish target separation and crisp fish arch representation

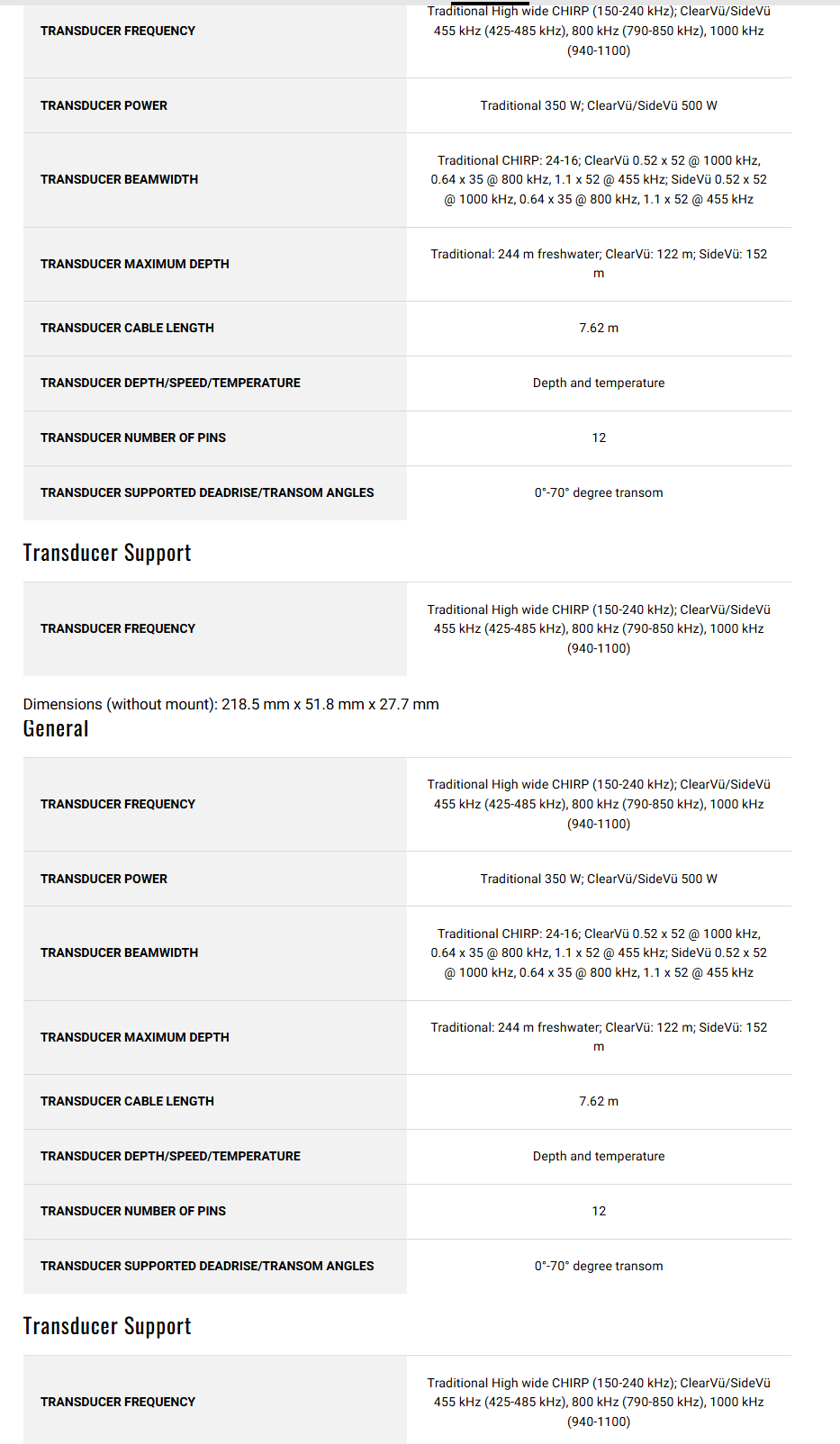

• Three selectable scanning frequencies: 455 kHz, 800 kHz, and 1,000 kHz Ultra High-Definition for optimized performance across multiple water depths
• Effective sonar penetration to 244 meters (800 feet) with high-contrast vivid color display palettes for improved target visibility
• Triple mounting compatibility including thru-hull, transom, and trolling motor installations with complete hardware included

Data Insights

The GT56UHD-TH's three-in-one sonar architecture delivers performance advantages that separate fish from clutter more effectively than traditional single-technology transducers. The 1,000 kHz Ultra High-Definition scanning mode provides the clearest imaging of individual targets and structural details, while the 20% range enhancement at this frequency in SideVü mode allows anglers to survey significantly larger areas per pass. The High Wide CHIRP component maintains effective bottom tracking and fish detection to the full 244-meter depth rating, ensuring consistent performance whether fishing shallow structure or exploring deep offshore waters.

Usage Instructions

Begin by selecting the mounting method best suited to your vessel: thru-hull installation for permanent fixed mounting, transom mounting for outboard transducers, or trolling motor mounting for electric motor compatibility. Follow the included installation guide to ensure proper alignment and electrical connection to your compatible Garmin chartplotter. Once installed, configure your sonar display to alternate between ClearVü for vertical structure detail, SideVü for lateral coverage, and CHIRP mode for traditional target separation. Adjust the active frequency based on your current water depth and fishing conditions—use 1,000 kHz in shallow clear water for maximum detail, 800 kHz for mid-depth scenarios, and 455 kHz when working deeper structure or in turbid conditions.

Design & Material

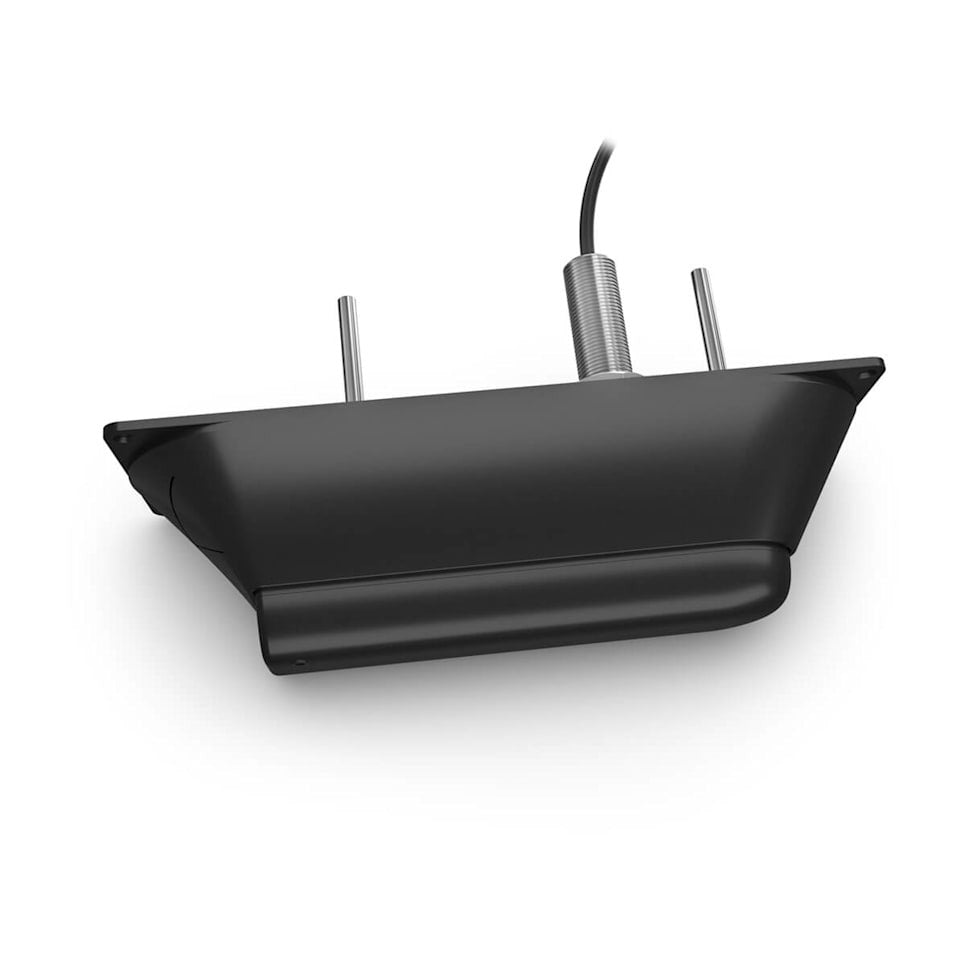

The GT56UHD-TH employs a ruggedized all-in-one housing designed to withstand extended exposure to saltwater, freshwater, and variable weather conditions. Its compact form factor consolidates multiple sonar elements and transducer components while maintaining the mechanical integrity required for reliable deep-water scanning.

• Marine-grade housing construction engineered for saltwater and freshwater compatibility
• Integrated downward-facing ClearVü scanning element for direct under-boat imaging
• Dual-channel SideVü sonar elements providing simultaneous port and starboard scanning coverage
• High Wide CHIRP sonar component with multi-frequency support (455 kHz, 800 kHz, 1,000 kHz)
• Reinforced cable assembly with weather-sealed connector for long-term durability and consistent signal transmission
• Compact transducer body compatible with three distinct mounting systems without compromising operational performance

Final Verdict

The Garmin GT56UHD-TH represents a significant advancement in transducer design for anglers who demand versatility without compromise. By integrating Ultra High-Definition ClearVü, Ultra High-Definition SideVü, and High Wide CHIRP sonar technologies with multi-frequency support and flexible mounting options, it eliminates the complexity and expense of managing separate transducers. Whether navigating unfamiliar waters, targeting structure in established fishing holes, or surveying large open-water areas, the GT56UHD-TH delivers the clarity, coverage, and precision required to locate fish efficiently. This all-in-one solution provides professional-grade underwater visibility across freshwater lakes, coastal waters, and offshore environments—making it an essential upgrade for serious anglers looking to maximize their fish-finding capability.
