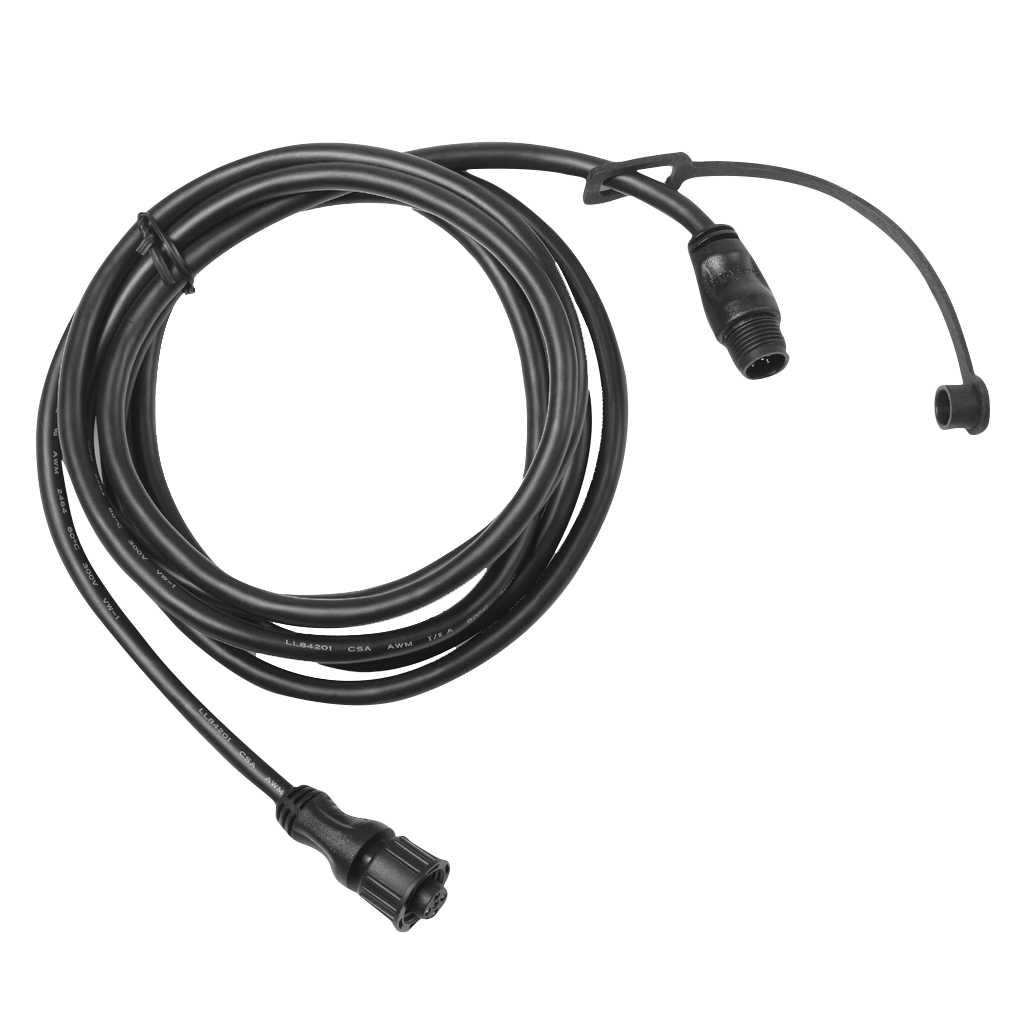

Garmin NMEA 2000 Backbone/Drop Cable (19ft)
Garmin NMEA 2000 Backbone/Drop Cable (19ft)
Model Number: 010-11076-01
In stock
WhatsApp
SMS - Text us!
Email Us!
Help Desk
Tech Specs
Garmin NMEA 2000 Backbone/Drop Cable (19ft)
Introduction
The Garmin NMEA 2000 Backbone/Drop Cable connects multiple marine electronics into a unified navigation network, eliminating the need for separate point-to-point wiring. At 19 feet, this backbone cable provides the reach needed to distribute power and data signals across mid-to-large boats while reducing installation time and potential single-point failures in your NMEA 2000 system.
Key Features
- Length: 19 feet provides sufficient backbone reach for integrated bridge setups and distributed device placement
- Cable Diameter: 4.5 mm diameter balances flexibility for routing through tight compartments with durability under deck pressure
- Network Capacity: Supports up to 50 devices connected to a single NMEA 2000 backbone
- Material: High-grade PVC jacket rated for continuous saltwater spray and UV exposure
- Connector Type: Corrosion-resistant male and female endpoints with precision-engineered weathersealing
- Compatibility: Works with Garmin ECHOMAP, GPSMAP, autopilot modules, and standard NMEA 2000 certified devices across the Garmin marine electronics lineup
Data Insights
A 19-foot backbone cable accommodates the typical wiring scheme on 35–50-foot vessels where transducers, displays, and autopilot components are mounted at bow, helm, and stern positions. The ability to support 50 simultaneous devices on a single network backbone means you can expand your system—adding sonar, radar, or additional compass modules—without replacing core infrastructure. This scalability adds an average of 5–7 years to system service life before topology constraints require a second backbone.
Usage Instructions
Install the cable as the main network line between your primary NMEA 2000 power unit and the farthest device on your boat. Connect device drop cables perpendicular to this backbone to maintain signal integrity. Ensure all connectors are hand-tightened firmly and verify that male and female ends match your network architecture. Route the cable through existing cable trays or conduit to protect it from bilge water and mechanical abrasion. Test connectivity using your primary display's diagnostics menu before relying on integrated data streams.
Design & Material
This cable combines marine-grade engineering with practical deck-side durability. The design prioritizes easy hand-connection without special tools while resisting the thermal cycling and corrosive salt environment that degrades standard electrical cables. The tapered connector design prevents cross-threading and ensures watertight sealing under pressure.
- High-grade PVC outer jacket rated for continuous immersion and splash zone exposure
- Precision-engineered male connector with locking band for vibration-proof connection stability
- Female connector endpoint with sealed entry point to prevent water ingress into backbone
- Black finish reduces glare in bright cockpit conditions and hides minor cosmetic wear
- Twisted pair internal construction minimizes electromagnetic interference from engine ignition and alternator systems
- Corrosion-resistant nickel-plated brass contacts maintain signal voltage drop under 0.3 volts at full network load
Final Verdict
The Garmin NMEA 2000 Backbone/Drop Cable (Model 010-11076-01) is the foundational wiring component for any serious marine navigation installation. It eliminates unreliable daisy-chain connections and delivers the structural backbone your multi-device network depends on. Order yours today to build a navigation system that will perform reliably across seasons and voyages.
