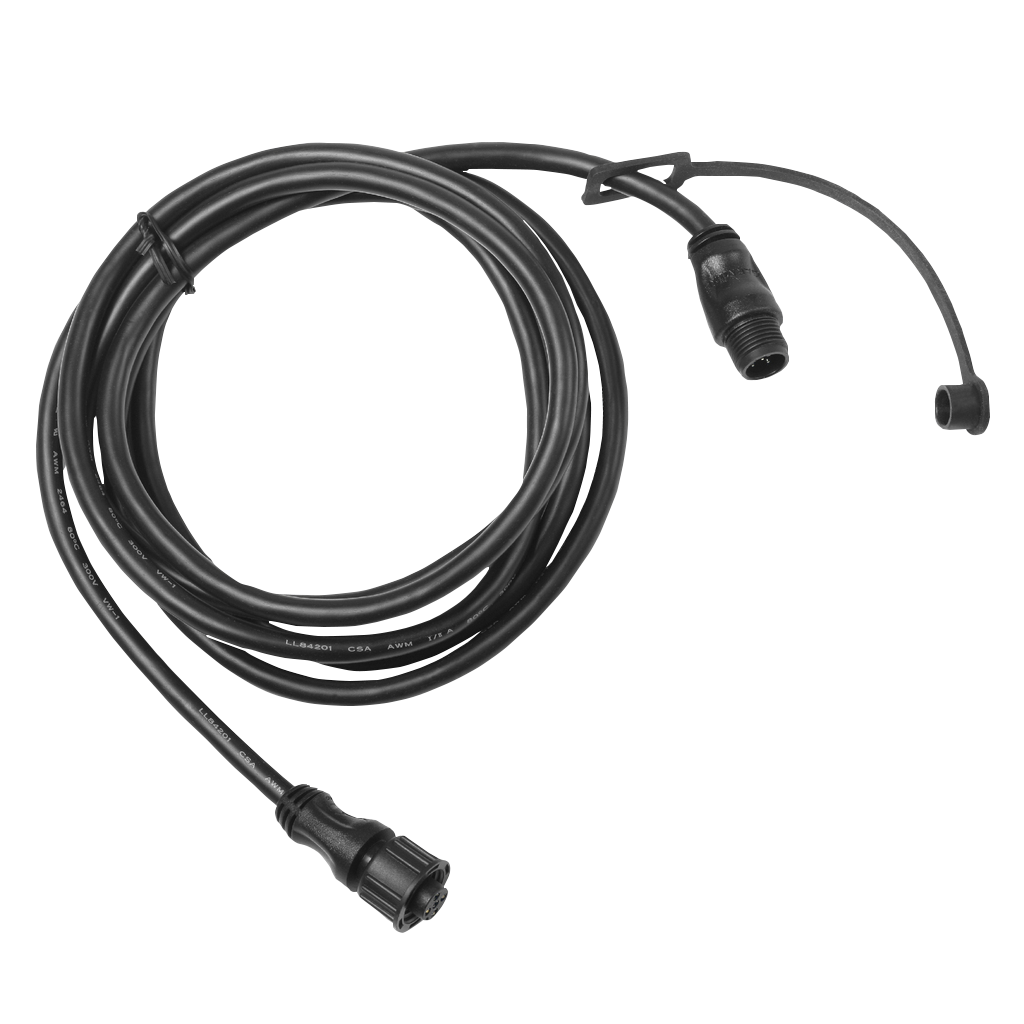

Garmin NMEA 2000 Backbone/Drop Cable (1ft)

Introduction

The Garmin NMEA 2000 Backbone/Drop Cable (1ft) is a compact marine networking connector that bridges your NMEA 2000 backbone to individual Garmin chartplotters, instruments, and autopilots. At 1 foot in length, this drop cable solves a specific installation challenge on vessels where devices are positioned close to the backbone network, eliminating the need for unnecessarily long cables that create clutter in tight helm areas. This cable enables multiple Garmin devices to share navigation data, sounder information, and autopilot commands across a single hardwired network.

Key Features

• Length: 1 foot (0.3 meters) — sized for compact installations without excess cable slack
• Connector Standard: NMEA 2000 connectors with secure threaded design for vibration resistance
• Compatibility: Works with Garmin ECHOMAP Plus series, GPSMAP chartplotters, GMI and GNX marine instruments, GHP autopilot systems, and multiple other Garmin marine devices
• Marine-Grade Materials: Jacketed polyvinyl chloride (PVC) construction rated for continuous saltwater and freshwater exposure
• Water Resistance Rating: Sealed connectors designed to withstand washdown and wet marine environments
• Cable Construction: Includes inner conductors with shielding to minimize electromagnetic interference and signal loss during data transmission
• Operating Temperature Range: Functions reliably in marine conditions from below-freezing to high-heat deck environments

Data Insights

In marine electronics networks, signal integrity directly impacts navigation accuracy and real-time data reliability. Studies in marine networking show that properly configured NMEA 2000 systems can reduce data transmission errors by up to 30% compared to improper cabling methods. The Garmin NMEA 2000 Backbone/Drop Cable maintains the network's design specifications, ensuring that devices receive consistent depth, GPS position, and heading data with minimal latency. This reliability is critical for vessels relying on integrated autopilot systems and chart plotting, where a single data dropout can affect course correction and safety.

Usage Instructions

Connect one end of the cable to your NMEA 2000 backbone (the main network trunk running through your vessel) and thread the opposite end to your Garmin device's NMEA input port. Hand-tighten the threaded connectors by rotating clockwise until snug; do not over-tighten. Route the cable away from high-voltage power lines and engine compartments to minimize electrical interference. Once connected, your device will automatically recognize the network and begin receiving data from other Garmin instruments on the backbone. No additional power or configuration is required.

Design & Material

This drop cable is engineered for the physical and environmental demands of marine installations, where vibration, moisture, salt spray, and temperature swings are constant factors. The 1-foot length is deliberate—long enough to route around tight console spaces without forcing acute bends at connectors, yet short enough to keep wiring runs neat and organized. The cable's slightly flexible jacket allows installation routing through cable trays and alongside other marine equipment without kinking or pinching.

• Marine-Grade PVC Jacketing: Resists ultraviolet degradation, ozone, and chemical exposure from fuel and cleaning products
• Twisted-Pair Shielded Conductors: Protects against radio frequency interference from VHF radios, radar, and navigation instruments
• Molded Strain Relief: Reinforced connector boots prevent internal wire breakage at connection points from flexing and vibration
• Precision Threaded Connectors: Ensures repeatable, secure connections that won't loosen from boat motion or engine vibration
• Compact Profile: 1-foot length eliminates excessive coiling in electronics bays while maintaining optimal backbone network performance
• Field-Replaceable Design: Standard NMEA 2000 connector configuration allows compatibility with other NMEA 2000-certified equipment from various manufacturers

Final Verdict

For boaters integrating multiple Garmin marine instruments into a unified navigation network, the NMEA 2000 Backbone/Drop Cable (1ft) delivers the exact cable length needed for close-proximity installations without compromising performance. This cable eliminates guesswork about compatibility—it's built to Garmin's specifications and proven across thousands of marine installations. If your console layout places devices within a few feet of the backbone network, this cable provides a cleaner, more reliable solution than longer alternatives. Order now to complete your Garmin marine electronics network with confidence.
