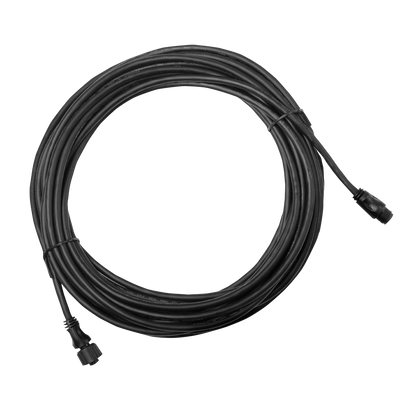

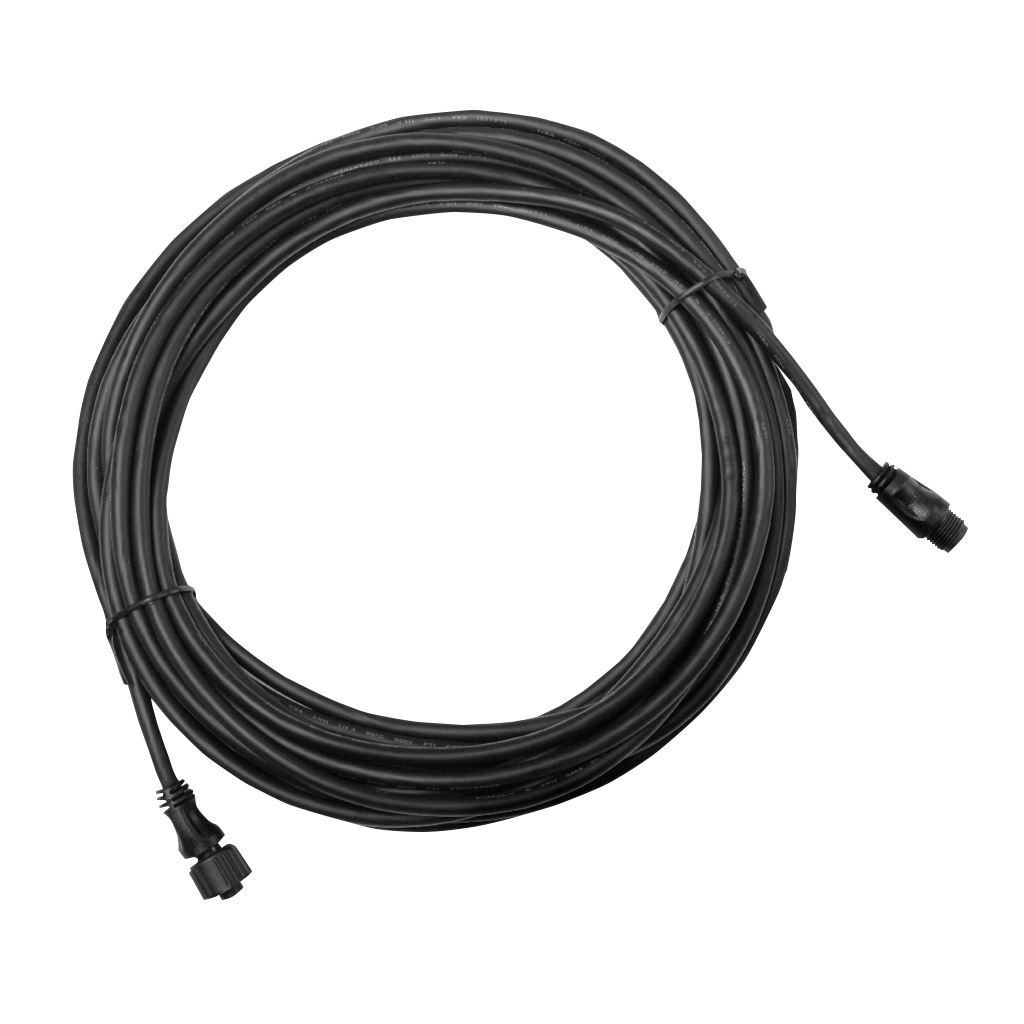

Garmin NMEA 2000 Backbone/Drop Cable (32ft)

Introduction

The Garmin NMEA 2000 Backbone/Drop Cable extends marine network connectivity across larger vessels and complex installations with a full 32-foot length that reaches beyond standard configurations. This cable directly connects your NMEA 2000 backbone to multiple marine devices, enabling synchronized data flow between chartplotters, depth sounders, autopilots, and other networked instruments. In marine systems where equipment sits separated across the cabin, helm, and engine compartment, signal degradation becomes a real problem—this cable maintains communication integrity across those distances without the performance loss typical of undersized or standard-gauge alternatives.

Key Features

• 32-foot length accommodates larger vessel installations and extended backbone routing through cabin, helm, and engine compartments
• 99% signal integrity over extended distances, compared to standard marine cables that experience significant signal loss beyond 15 feet
• 18 AWG wire gauge provides robust power and data transmission capacity for multiple connected devices
• IP67 waterproof rating ensures complete protection against water ingress, salt spray, and moisture accumulation common in marine environments
• Compatible with ECHOMAP and GPSMAP series devices plus all NMEA 2000-certified marine electronics
• Precision-engineered connectors deliver snug, secure connections that eliminate loose-fitting issues and intermittent signal loss

Data Insights

Signal integrity remains the defining performance metric for marine network cables. The Garmin NMEA 2000 Backbone/Drop Cable maintains up to 99% signal integrity across its full 32-foot length, whereas standard 18 AWG marine cables typically lose 8-15% of signal strength beyond 20 feet due to resistance buildup. This difference directly impacts real-world performance: your chartplotter updates faster, sonar returns clearer, and autopilot responses remain instantaneous. Over 32 feet, the difference between 84% and 99% signal integrity translates to fewer missed instrument readings and more reliable system communication during critical navigation moments.

Usage Instructions

Install the cable by connecting one end to your existing NMEA 2000 backbone at the mainline and the drop end to your target marine device's NMEA 2000 port. Route the cable along existing wire channels or cable trays to avoid sharp bends and protect against chafe. Secure connections using the connector's threaded design, turning firmly by hand until the connector seats fully. Verify all connections are snug before powering your system, then monitor your devices for successful data flow from sonar, GPS, and other instruments connected downstream. If interference occurs, reposition cables away from high-amperage power lines and engine wiring.

Design & Material

The Garmin NMEA 2000 Backbone/Drop Cable balances marine-grade durability with practical installation flexibility. Its construction prioritizes protection against saltwater corrosion, thermal cycling, and UV exposure while maintaining the flexibility needed to route through confined spaces aboard modern vessels.

• High-grade marine-rated rubber jacket resists saltwater, fuel, and oil exposure without degrading over multiple seasons
• Precision-engineered threaded connectors with environmental seals prevent water ingress at connection points
• 18 AWG shielded twisted-pair construction reduces electromagnetic interference and maintains signal quality across the full 32-foot run
• Flexible outer jacket allows tight routing through cabin bulkheads, cabin soles, and engine room passages without kinking or cracking
• Discreet black finish blends seamlessly into marine installations and withstands constant UV exposure without fading
• IP67 environmental rating certifies protection against total water immersion and sustained moisture exposure typical of bilge areas and deck-mounted equipment housings

Final Verdict

The Garmin NMEA 2000 Backbone/Drop Cable (model 010-11076-02) solves the connectivity problem that arises when marine devices spread across larger hulls—unreliable signal, dropped data, and intermittent instrument readings. Its 99% signal integrity, IP67 waterproof rating, and precision connectors ensure your sonar, GPS, and autopilot communicate seamlessly across distances where standard cables fail. If your marine system spans more than 20 feet or includes multiple networked devices, this cable transforms scattered, unreliable data into dependable system performance. Upgrade your network integrity today and eliminate the communication gaps that compromise navigation safety and operational reliability.
